Lenovo ThinkCentre M73 Small Form Factor Desktop
Designed To Adapt.

Features:

Small Form Factor

The small form factor (SFF) desktop weighs in at 14.55 lbs and is designed to fit into tight spaces — supporting both horizontal and vertical orientations.

Hyper-Fast Wireless Experience

The advanced antenna design provides better signal reception and faster performance from your wireless connection.

PC Cloud Manager 2

Keep your PC fleet healthy and green as you effortlessly monitor and manage your desktop's health and power consumption.

Lenovo Solution Center Lenovo Solution Center provides access to a simplified dashboard that reflects total system health. This hardware diagnostic tool allows quick access to frequently used system management tools, including backup and restore, antivirus and firewall settings, system/software updates, internet connections, and service and support. Drastically speed migration time with ThinkVantage System Migration Assistant. Spend less time manually searching for drivers and software updates with ThinkVantage System Update. Fast Data Transfer Move data between the M73 and other devices quickly with USB 3.0 — it's up to 10 times faster than previous USB technologies, and is backward-compatible. Green Leadership Certifications like ENERGY STAR 5.2, EPEAT® Gold, and UL Environment Gold mean you'll save money with a more energy-efficient PC. Plus, you can use Desktop Power Manager to customize your power settings and balance power consumption with system performance, helping the planet and your bottom line.

Lenovo Solution Center (monitor not included)

Views:

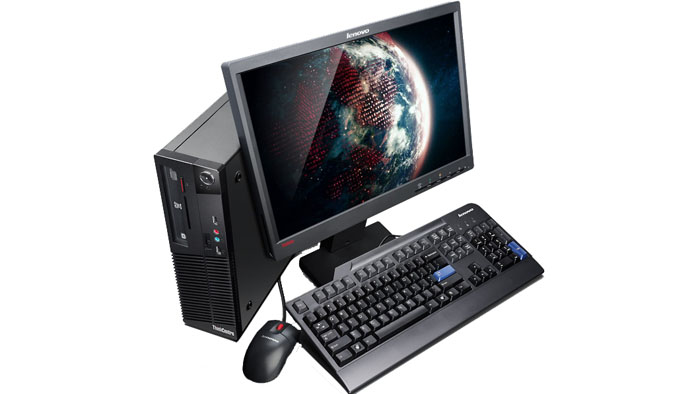

Lenovo ThinkCentre M73 SFF Desktops (Click to enlarge)

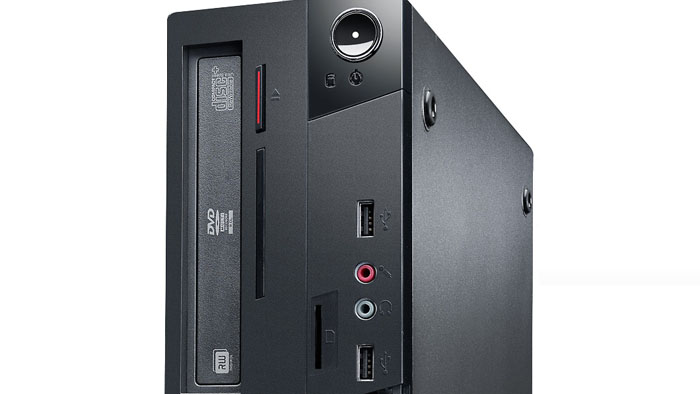

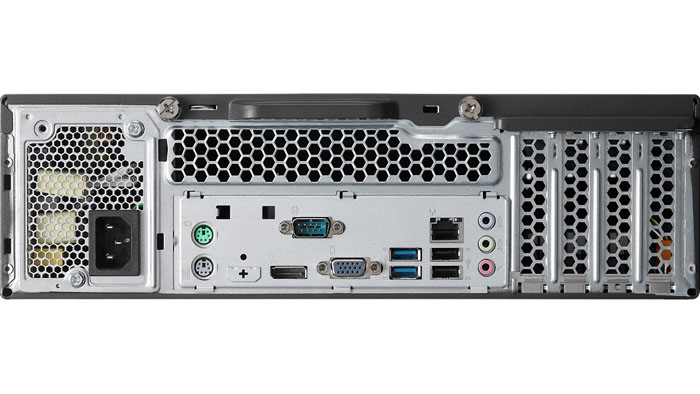

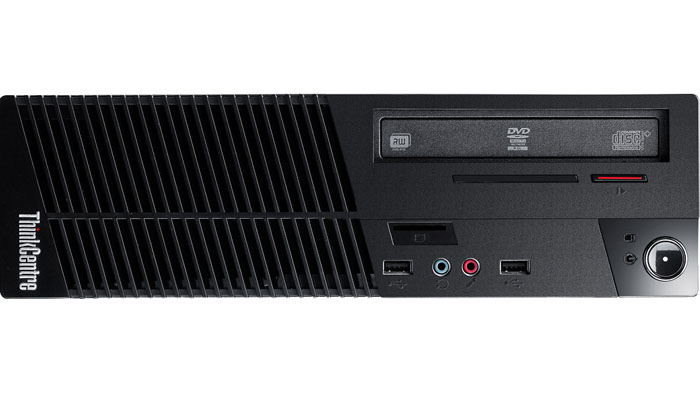

Desktops (Small Form Factor)	Driver/Ports Zoom View	Front View	Rear View

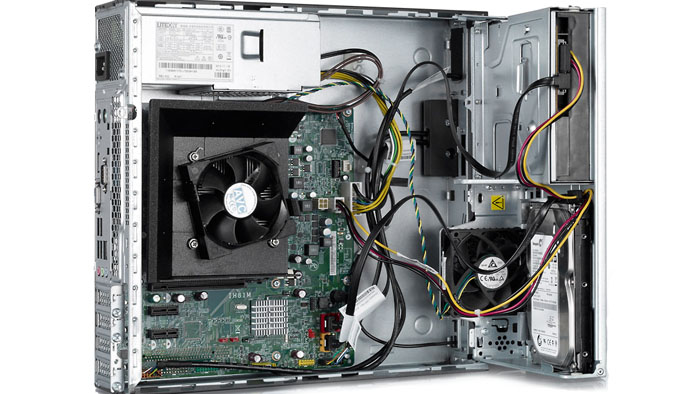

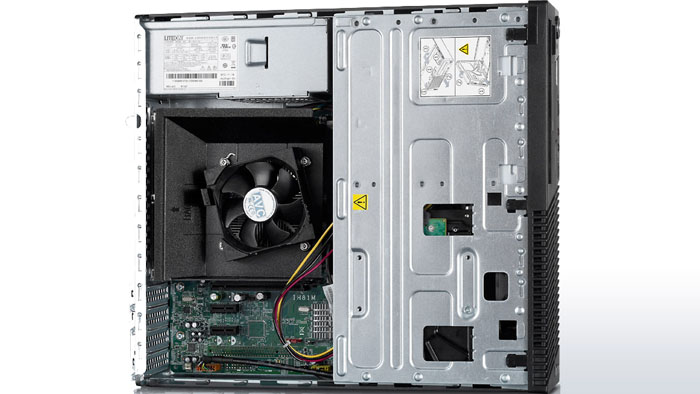

Internal Detail View	Internal Detail Zoom View	Top View

Specifications:

Lenovo ThinkCentre M73 Small Form Factor Desktop
Performance
Processor	Intel Core™ i7-4770 (8MB Cache, up to 3.90GHz) Intel Core™ i5-4670 (6MB Cache, up to 3.80GHz) Intel Core™ i5-4570 (6MB Cache, up to 3.60GHz) Intel Core™ i5-4440 (6MB Cache, up to 3.30GHz) Intel Core™ i5-4430 (6MB Cache, up to 3.20GHz) Intel Core™ i5-4440 (6MB Cache, up to 3.30GHz) Intel Core™ i5-4570 (6MB Cache, up to 3.60GHz) Intel Core™ i5-4670 (6MB Cache, up to 3.80GHz) Intel Pentium G3220 (3MB Cache, 3.00GHz) Intel Celeron G1820 (2MB Cache, 2.7GHz)
Operating System	Windows 8.1 Pro 64 Windows 8.1 64 Windows 7 Professional 64
Graphics	Integrated : Integrated 2013 Intel HD Discrete : AMD Radeon HD8470, 512MB, DP+VGA Discrete : AMD Radeon HD7450 1GB (DVI+DP) Low Profile Discrete : NVIDIA GeForce GT 620 1GB (DP+VGA) Low Profile Discrete : AMD Radeon HD8570, 2GB, VGA+HDMI
Memory	2 DIMM : Maximum 16GB up to 1600 MHz
Storage	3.5" 500GB/1TB 7200 RPM SATA 2.5" 128GB / 180GB / 256GB SSD 2.5" 500GB / 3.5" 1TB + 8GB SSHD
Optical Drive	Supported type: Serial-ATA Available drive: DVD-ROM / DVD Recordable
Power Supply	85 Plus 92% Pentium 240W PSU 85% 240W PSU 240W Standard PSU
Physical Security	Cable Lock / Padlock Loop / Chassis Intrusion Switch / Computrace Support/Kensington Slot
Green Value	EPEAT Gold ENERGY STAR 5.2 EL Environment Gold
Design
Dimensions (W X D X H)	13.18" x 15.03" x 3.9"
Connectivity
I/O (Input/Output) Ports	(2) USB 3.0 Rear (2) USB 2.0 Rear (2) USB 2.0 Front (1) VGA output (3) Audio-In / Out / MIC-In (2) PS/2 for Keyboard and Mouse (1) handset (1) Microphone (1) Display Port 9-in-1 Card Reader (optional)
Wireless	Wireless WLAN Intel N105 - LP Wireless Combo Intel N2230 - LP Intel Dual Band Wireless 7260BN with Bluetooth 4.0 Wireless Combo N6235_LP Wireless WLAN Broadcom 4352
Ethernet	Integrated 10M/100M/1000M Gigabit Ethernet

Software

Preloaded Applications

• Intel AppUp®
• Nitro PDF
• Adobe® Acrobat Reader
• AccuWeather
• Desktop Power Manager
• PC Device Stage
• Evernote®
• Lenovo Cloud Storage by SugarSync
• Lenovo Companion
• Lenovo Settings
• Lenovo Message Center Plus
• Lenovo Registration
• Lenovo QuickLaunch
• Lenovo QuickSnip
• Lenovo Solution Center
• Lenovo Support
• Norton™ Internet Security 2013 – 30 days trial
• Security Suite
• Norton™ Studio
• Password Manager (Ready-to-Install – Win 7) (Web install – Win 8)
• Product Recovery
• Rescue and Recovery® (Ready-to-Install)
• RapidBoot HDD Accelerator 2.0
• Skype™
• ThinkVantage® System Update
• View Management Utility
• Cyberlink PowerDVD
• Cyberlink – PowerDVD Create, Power2Go and Power Producer
• Cyberlink – PowerDVD Create, Power2Go and Power Producer
• i-Filter (JP Only)
• Microsoft® Office 2013 Trial
• Adobe Acrobat XI – bundled with MS Office Profressional and MS Office Home and Business
• Adobe Acrobat XI Standard edition
• Adobe Acrobat XI Professional
• Adobe Acrobat Lightroom
• Microsoft Office Professional 2013
• Microsoft Office Home and Business 2013
• Microsoft Office Home and Student 2013
• Microsoft Office Personal 2013 – Japanese
• Microsoft Office Home and Business 2013 – Japanese
• Microsoft Office Professional 2013 – Japanese
• Norton Internet Security
• Norton AntiVirus
• McAfee® Internet Security
• McAfee® VirusScann Plus

Services Offerings

Lenovo® offers a comprehensive portfolio of services to support and protect your ThinkCentre® Edge investment. Focus on your customers and business, not your IT.

• Priority Technical Support*
  Makes your priority, our priority. 24x7 priority call routing to advanced-level technicians, electronic incident tracking, and rapid response and resolution.
• Warranty Upgrades – Onsite and Next Business Day
  Maximizes PC uptime and productivity by providing convenient, fast repair service the next business day.
• Warranty Extensions (1-to-4 Years Total Duration)
  This fixed-term, fixed-cost service helps accurately budget for PC expenses, protect your valuable investment, and potentially lower the cost of ownership over time.

* Not available in all regions

2 Optional for 802.11ac
3 For special bids only
4 Optional
5 Special bid or customer to order
6 The term “10/100/1000” or “Gigabit” Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1Gbps. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required

Documentation:

Download the Lenovo ThinkCentre M73 Datasheet (PDF).
