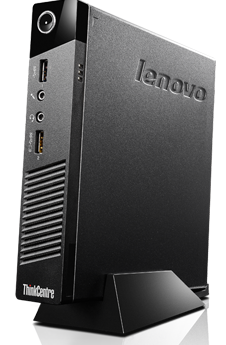

Lenovo ThinkCentre M73 Tiny Desktop
Designed To Adapt.

Features:

Tiny Form Factor

Our Tiny desktops are the first 1L desktop in the industry. Complete with flexible mounting solutions including support for standard VESA mounts, Tiny desktops fit just about anywhere, yet they provide a reliable, enterprise-level performance that you can depend on.

Keyboard Power-On

If you choose to mount this compact unit on the back of your monitor, you can still power on conveniently from the front, by simply pressing Alt + P.

Advanced Thermal Design

Our Intelligent Cooling Engine (ICE) 3.0 is designed to provide a balance between thermals and acoustics, resulting in long desktop life. With two optimized settings, you choose the performance mode that best suits your work environment, prioritizing temperature or sound. Plus, ICE 3.0 allows for working in hotter temperatures and enables system monitoring with thermal alerts that preempt overheating possibilities.

Hyper-Fast Wireless Experience

The advanced antenna design provides better signal reception and faster performance from your wireless connection.

PC Cloud Manager 2

Keep your PC fleet healthy and green as you effortlessly monitor and manage your desktop's health and power consumption.

Lenovo Solution Center Lenovo Solution Center provides access to a simplified dashboard that reflects total system health. This hardware diagnostic tool allows quick access to frequently used system management tools, including backup and restore, antivirus and firewall settings, system/software updates, internet connections, and service and support. Drastically speed migration time with ThinkVantage System Migration Assistant. Spend less time manually searching for drivers and software updates with ThinkVantage System Update. Fast Data Transfer Move data between the M73 and other devices quickly with USB 3.0 — it's up to 10 times faster than previous USB technologies, and is backward-compatible. Green Leadership Certifications like ENERGY STAR 5.2, EPEAT® Gold, and UL Environment Gold mean you'll save money with a more energy-efficient PC. Plus, you can use Desktop Power Manager to customize your power settings and balance power consumption with system performance, helping the planet and your bottom line.

Lenovo Solution Center (monitor not included)

Views:

Lenovo ThinkCentre M73 Tiny Desktops (Click to enlarge)

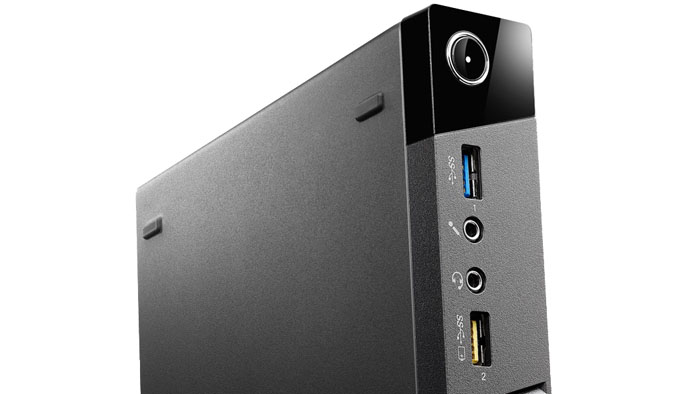

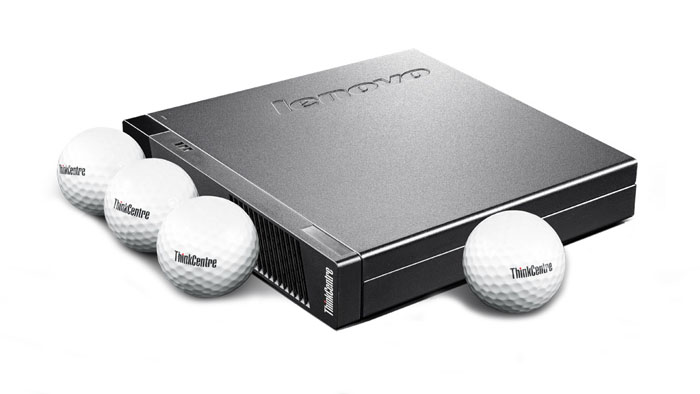

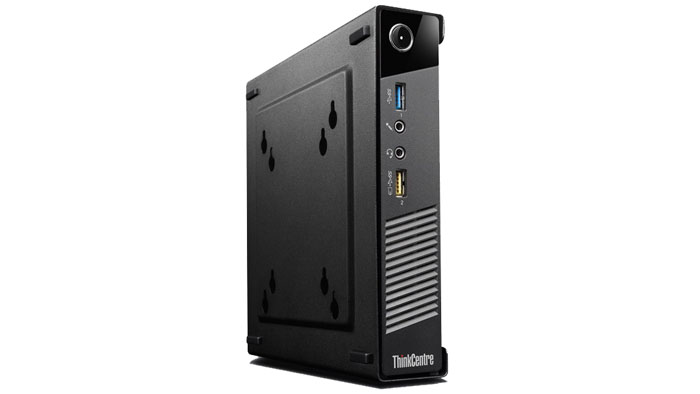

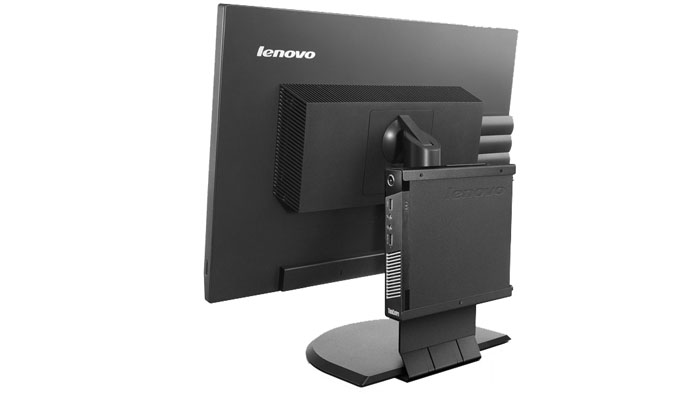

Desktops (Tiny)	Ports Zoom View	Size View	Attached Back Monitor View

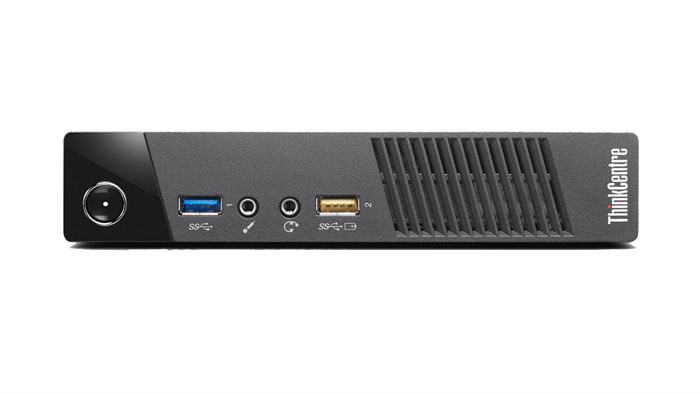

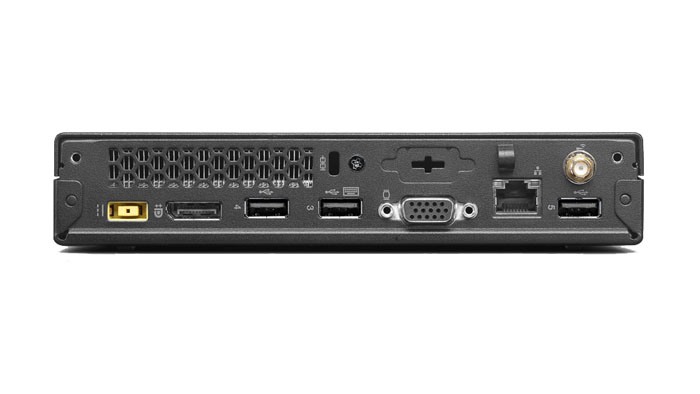

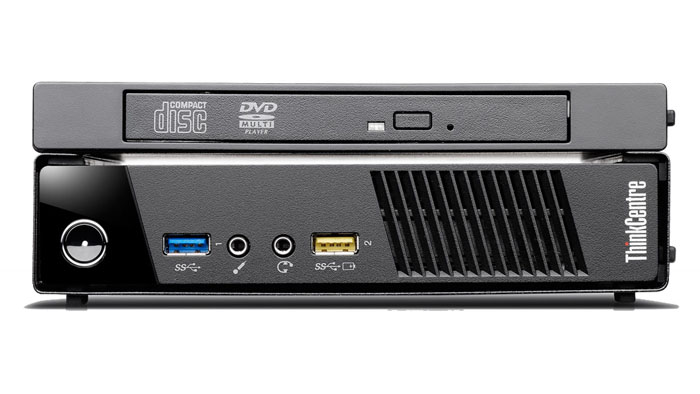

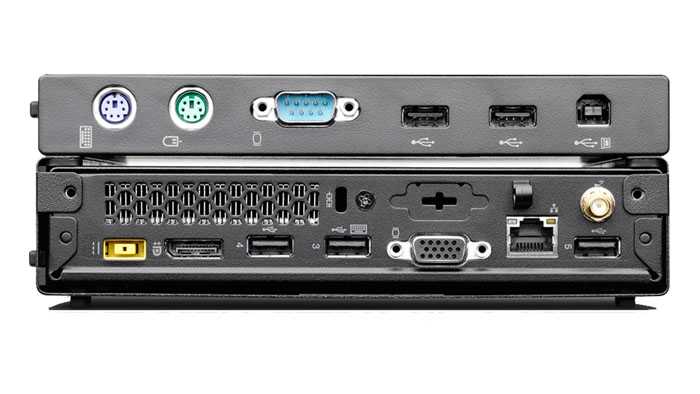

Front View	Rear View	Attach Case Optical Drive Front View	Attach Case Optical Drive Rear View

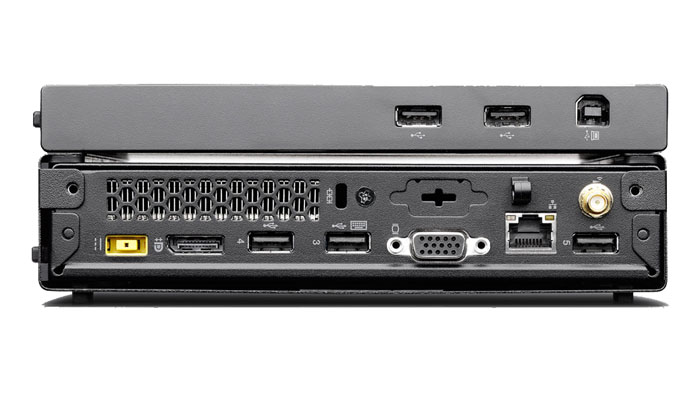

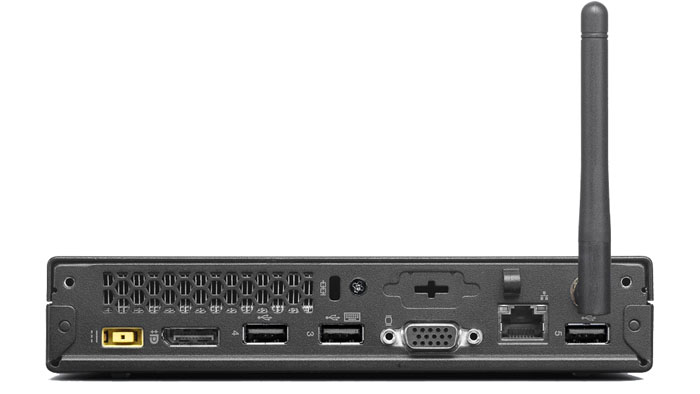

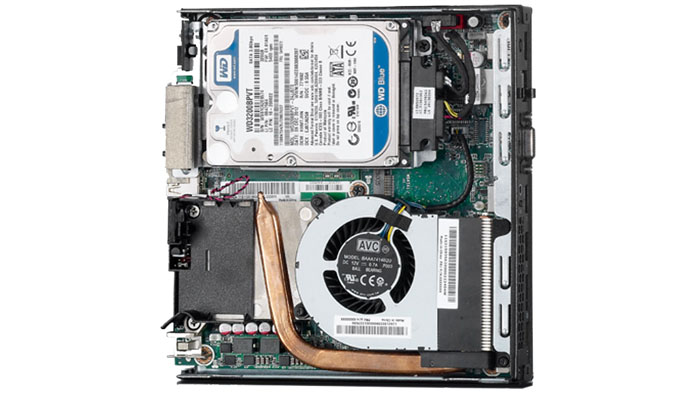

Attach Case USB Rear View	Rear with Antenna View	Internal Detailed View

Specifications:

Lenovo ThinkCentre M73 Tiny Desktop
Performance
Processor	Intel Celeron G1820T (2MB Cache, 2.4GHz) Intel Pentium G3220T (3MB Cache, 2.60GHz) 4th Gen Intel Core™ i3-4130T (3MB Cache, 2.90GHz) 4th Gen Intel Core™ i3-4330T (4MB Cache, 3.00GHz) 4th Gen Intel Core™ i5-4570T (4MB Cache, up to 3.60GHz) 4th Gen Intel Core™ i7-4765T (8MB Cache, up to 3.00GHz)
Operating System	Windows 8.1 Pro 64 Windows 8.1 64 Windows 7 Professional 64
Graphics	Integrated: Integrated 2013 Intel HD Discrete: N/A
Memory	2 SO DIMM Maximum 16GB PC3-12800 DDR3 SoDIMM (2 x DIMM Max)
Storage	2.5" 320GB, 500GB SATA 2.5" 7200 RPTM 2.5" 128GB SSD SATA, 180GB SSD SATA III, 256GB SSD SATA 500GB + 8GB Hybrid
Optical Drive	Supported type: Serial-ATA Available drive: Slim DVD-ROM / DVD Recordable
Power Supply	External 65W ES adapter 87% (New Power connector align with ThinkPad)
Physical Security	Chassis Intrusion Switch4 / Computrace Support/ Kensington Slot
Green Value	EPEAT Gold ENERGY STAR 5.2 EL Environment Gold
Design
Dimensions (W X D X H)	7.2" x 7.16" x 2.5"
Connectivity
I/O (Input/Output) Ports	(2) USB 3.0 Front (3) USB 2.0 Rear (1) USB 2.0 Rear (1) VGA output (1) Serial Ports via punch out (1) Handset (Dual Usage) (1) Microphone (1) Display Port
Wireless	Wireless Combo Intel N2230 Intel Dual Band Wireless 7260BN with Bluetooth 4.0 Intel Centrino Advanced-N 6235, Dual Band Wireless WLAN Broadcom 4352
Ethernet	Integrated 10M/100M/1000M Gigabit Ethernet

Software

Preloaded Applications

• Intel AppUp®
• Nitro PDF
• Adobe® Acrobat Reader
• AccuWeather
• Desktop Power Manager
• PC Device Stage
• Evernote®
• Lenovo Cloud Storage by SugarSync
• Lenovo Companion
• Lenovo Settings
• Lenovo Message Center Plus
• Lenovo Registration
• Lenovo QuickLaunch
• Lenovo QuickSnip
• Lenovo Solution Center
• Lenovo Support
• Norton™ Internet Security 2013 – 30 days trial
• Security Suite
• Norton™ Studio
• Password Manager (Ready-to-Install – Win 7) (Web install – Win 8)
• Product Recovery
• Rescue and Recovery® (Ready-to-Install)
• RapidBoot HDD Accelerator 2.0
• Skype™
• ThinkVantage® System Update
• View Management Utility
• Cyberlink PowerDVD
• Cyberlink – PowerDVD Create, Power2Go and Power Producer
• Cyberlink – PowerDVD Create, Power2Go and Power Producer
• i-Filter (JP Only)
• Microsoft® Office 2013 Trial
• Adobe Acrobat XI – bundled with MS Office Profressional and MS Office Home and Business
• Adobe Acrobat XI Standard edition
• Adobe Acrobat XI Professional
• Adobe Acrobat Lightroom
• Microsoft Office Professional 2013
• Microsoft Office Home and Business 2013
• Microsoft Office Home and Student 2013
• Microsoft Office Personal 2013 – Japanese
• Microsoft Office Home and Business 2013 – Japanese
• Microsoft Office Professional 2013 – Japanese
• Norton Internet Security
• Norton AntiVirus
• McAfee® Internet Security
• McAfee® VirusScann Plus

Services Offerings

Lenovo® offers a comprehensive portfolio of services to support and protect your ThinkCentre® Edge investment. Focus on your customers and business, not your IT.

• Priority Technical Support*
  Makes your priority, our priority. 24x7 priority call routing to advanced-level technicians, electronic incident tracking, and rapid response and resolution.
• Warranty Upgrades – Onsite and Next Business Day
  Maximizes PC uptime and productivity by providing convenient, fast repair service the next business day.
• Warranty Extensions (1-to-4 Years Total Duration)
  This fixed-term, fixed-cost service helps accurately budget for PC expenses, protect your valuable investment, and potentially lower the cost of ownership over time.

* Not available in all regions

1 Feature available only with Tiny
2 Optional for 802.11ac
3 For special bids only
4 Optional
5 Special bid or customer to order
6 The term “10/100/1000” or “Gigabit” Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1Gbps. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required

Documentation:

Download the Lenovo ThinkCentre M73 Datasheet (PDF).
