Lenovo ThinkCentre M83 Small Form Factor Pro Desktop
Enhances Performance, Lower Cost.

Features:

Small Form Factor Pro

The new small form factor (SFF) pro design features the compactness of the SFF with the expansion ability of a tower. The SFF desktops weigh in at 16.5 lbs and support both horizontal and vertical orientations.

Platform Stability

The M83 desktop features Intel Stable Image Platform Program (SIPP) and a 27-month life cycle with no planned hardware changes that affect the preloaded software image. Image stability for long-term deployments helps to reduce transition, qualification, and testing costs to ensure savings for your business.

Multiple Monitor Display

Maximize productivity with independent display support for up to three monitors – or four via Mosaic Mode. The expanded work area and easier navigation between applications helps reduce errors and improve productivity as you extend your desktop across multiple monitors. (Requires second optional DisplayPort connectors.)

Solid Security & Manageability M83 desktops include some of the best security tools available in the industry, including USB ports disablement to help prevent data theft and network security risks against unauthorized use of storage devices. The Trusted Platform Module (TPM) encrypts data and key information like passwords and digital certificates, further securing applications, electronic transactions, and online communication. Plus the M83 desktop includes a chassis intrusion switch, which alerts against any unauthorized access attempts. Physical security through cable lock and Absolute® Computrace Support. Tool-Less Expandability Upgrades are a cinch for IT staff, with convenient tool-free access to hardware. Especially beneficial when working with multiple desktops. And the M83 includes optional second HDD (2.5 inches) and dual graphic card support. Up to three hard drives and one slim ODD supported. Advanced Thermal Design Our Intelligent Cooling Engine (ICE) 3.0 is designed to provide a balance between thermals and acoustics resulting in long desktop life. With two optimized settings, you choose the performance mode that best suits your work environment, prioritizing temperature or sound. Plus, ICE 3.0 allows for working in hotter temperatures and enables system monitoring with thermal alerts that preempt overheating possibilities.

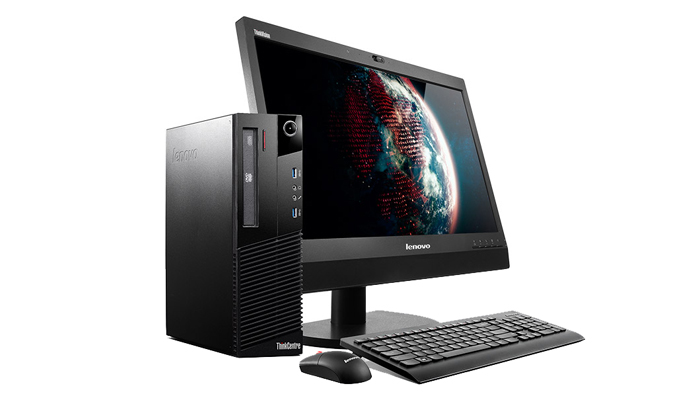

Solid Security & Manageability (monitor not included)

Green Leadership

Cisco EnergyWise certification enables enterprise-level power monitoring and Lenovo Desktop Power Manager puts you in control of saving energy and keeping costs down. Plus, with ratings like ENERGY STAR 5.2, ULE Gold, and 92% efficiency with 80+ Platinum power supply unit (PSU), you can feel good about helping the planet and your bottom line.

Priority Technical Support

You demand a lot from your system and Lenovo Services help you stay productive. Bypass basic troubleshooting support with direct access to advanced-level technicians to resolve issues quickly. Add Priority Technical Support to your purchase.

Views:

Lenovo ThinkCentre M83 Desktops (Click to enlarge)

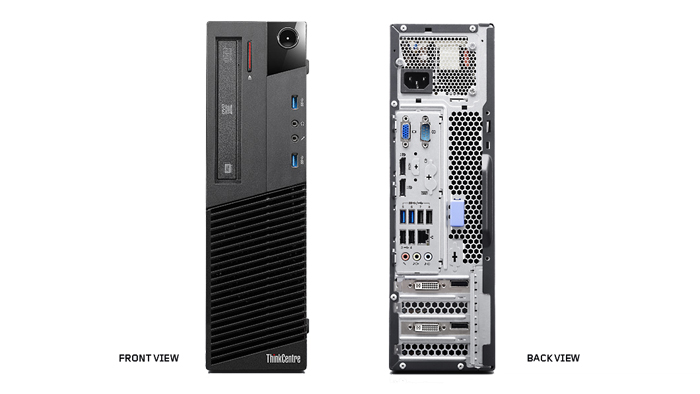

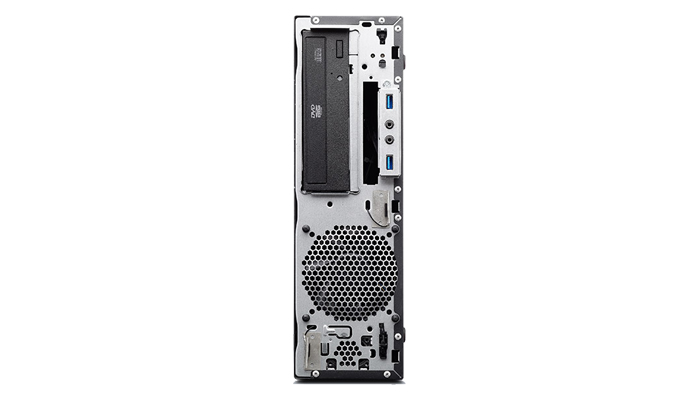

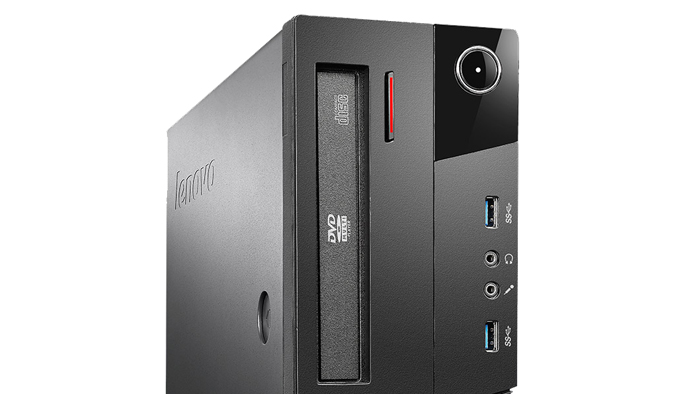

Desktops (Small Form Factor)	Front and Rear View	Front Open View	Front Ports Zoom View

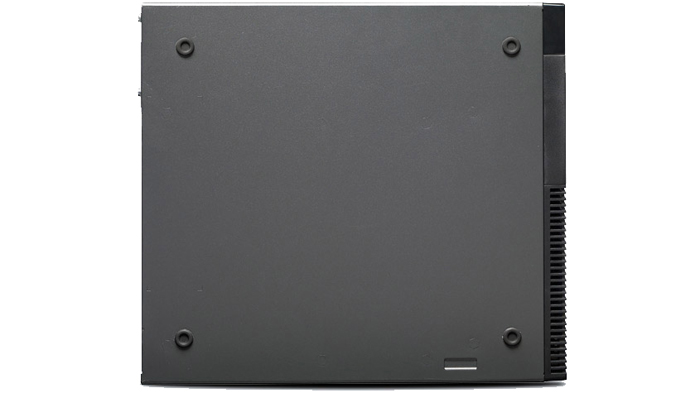

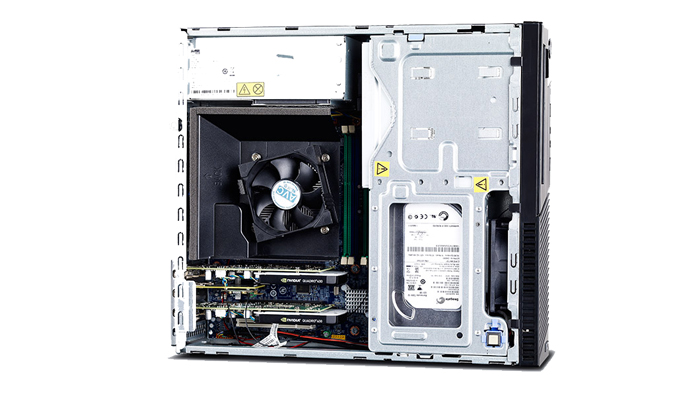

Internal Detail View	Left Side View

Specifications:

Lenovo ThinkCentre M83 SFF Pro Desktop
Performance
Processor	4th Gen Intel Core™ i7-4770 4th Gen Intel Core™ i5-4570 / 4670 4th Gen Intel Core™ i3-4130 / 4330
Operating System	Windows 8.1 Pro 64 Windows 8.1 64 Windows 7 Professional 64
Graphics	Integrated: Intel Integrated Discrete: ATI Radeon HD8470, ATI Radeon HD8570 Discrete: NVIDIA GeForce GT620
Memory	DIMM Slots: 4 Type: DDR3 (UDIMM) Speed: 1600 Mhz Module Type Supported: 2GB / 4GB / 8GB Max Memory: Up to 32GB
Storage	3.5" 7200rpm HDD 250GB / 500GB / 1TB / 2TB SFF: 128GB / 180GB SSD, 2.5" SFF: 2.5" 500GB / 8GB SSHD, 3.5" 1TB / 8GB SSHD SFF: 2.5" 5400rpm HDD 320GB / 500GB / 1TB
Optical Drive	Supported Types: Serial-ATA Available Drives: DVD-ROM / DVD Recordable
Power Supply	240W 92% Single output 240W 85% Single output 240W Standard Single output
Physical Security	Cable Lock / Padlock Loop / Chassis Intrusion Switch / Computrace Support
Design
Dimensions (W X D X H)	13.3" x 4.0" x 14.8"
Weight	17.2 lbs
Connectivity
Ports and Slots	Front - USB: (2) USB 3.0, Microphone: 1, Headphone: 1 Rear - Microphone: 1, Headphone: 1 Rear - USB: (4) USB 2.0, (2) USB 3.0 Rear - Display (Output): (1) VGA, (2) DP Rear - PS/2: 2 (1 for Keyboard, 1 for Mouse) x Optional Rear - Serial: (1) Standard, (1) Optional Rear - Parallel: (1) Optional, LAN (RJ45): 1 Rear - Audio: 3 (Line in / Line out / Mic)
Wireless	(2x2) 802.11 a/b/g/n Combo (WLAN+BT) (2x2) 802.11 ac (WLAN) (2x2) 802.11 b/g/n Combo (WLAN+BT) (1x1) 802.11 b/g/n
Ethernet	Integrated 10M / 100M / 1000M Gigabit Ethernet

Software

Windows 7 Preloads

• CyberLink PowerDVD, CyberLink Create
• Desktop Power Manager, Evernote
• Intel® Small Business Advantage
• Lenovo® Message Center Plus
• Microsoft Office 2013 Trial, Nitro PDF
• Norton™ Internet Security™ 2013 - 30 days Trial
• RapidBoot HDD Accelerator, Skype™
• ThinkVantage® System Update
• ThinkVantage® Rescue and Recovery®(Ready to Install)
• ThinkVantage® Password Manager(Ready to Install)

Windows 8 Preloads

• AccuWeather, PC Device Stage
• CyberLink PowerDVD, CyberLink Create
• Desktop Power Manager, Evernote
• Intel® Small Business Advantage
• Lenovo® Companion
• Lenovo® Cloud Shield by SugarSync
• Lenovo® Quick Launch, Lenovo® Support
• Lenovo® Solution Center, Nitro Pro 7
• Norton™ Internet Security™ 2013 - 30 days Trial
• ThinkVantage® Password Manager(Web install)

Services Offerings

Lenovo offers a comprehensive portfolio of award-winning services to support and protect your ThinkCentre investment. Succeed with substance, and let Lenovo®’s Service support you all the way.

• Priority Technical Support8
  Makes your priority, our priority. 24x7 priority call routing to advanced-level technicians, electronic incident tracking and escalation management services.
• Warranty Upgrades – Onsite And Next Business Day
  Maximizes PC uptime and productivity by providing convenient, fast repair service at your place of business.
• Warranty Extensions (1-to-5 Years Total Duration)
  This fixed-term, fixed-cost service helps accurately budget for PC expenses, protect your valuable investment, and potentially lower the cost of ownership over time.
• Keep Your Drive
  Retain your drive if it should happen to fail, giving you the peace of mind to know that your valuable data is secure.
• Asset Tagging
  Systems come equipped with a professional, flexible asset tag based on your exact specifications. PCs are easily identifiable and trackable right out of the box.

4 TTM of Intel Core i3, Pentium and Celeron with Intel launch
5 Optional
6 Special bid only
7 The term “10/100/1000” or “Gigabit” Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 GB/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.
8 Not available in all regions

Documentation:

Download the Lenovo ThinkCentre M83 Datasheet (PDF).
