Lenovo ThinkCentre M83 Tiny Desktop
Enhances Performance, Lower Cost.

Features:

Tiny Form Factor

Our tiny desktops were the first 1L desktop in the industry. Complete with flexible mounting solutions, including support for standard VESA mounts, Tiny desktops fit just about anywhere, yet they provide a reliable, enterprise-level performance that you can depend on.

Platform Stability

The M83 desktop features Intel® Stable Image Platform Program (SIPP) and 15-month life cycle with no planned hardware changes that affect the preloaded software image. Image stability for long-term deployments helps to reduce transition, qualification, and testing costs to ensure savings for your business.

Multiple Monitor Display

Maximize productivity with independent display support for up to three monitors—or four via Mosaic Mode. The expanded work area and easier navigation between applications helps reduce errors and improve productivity as you extend your desktop across multiple monitors. (Requires second optional DisplayPort connectors.)

Solid Security & Manageability M83 Tiny desktops include some of the best security tools available in the industry, including USB ports disablement to help prevent data theft and network security risks against unauthorized use of storage devices. Active Protection System for HDD protection. Trusted Platform Module (TPM) encrypts data and key information like passwords and digital certificates, further securing applications, electronic transactions, and online communication. Plus the M83 desktop includes an optional chassis intrusion switch, which alerts against any unauthorized access attempts. Physical security through cable lock and Computrace Support. Advanced Thermal Design Our Intelligent Cooling Engine (ICE) 3.0 is designed to provide a balance between thermals and acoustics, resulting in long desktop life. Choose the performance mode that best suits your work environment, prioritizing temperature or sound. Plus, ICE 3.0 allows for working in hotter temperatures and enables system monitoring with thermal alerts that preempt overheating possibilities, so you don’t have to worry about business continuity. Keyboard / Monitor Power-On If you choose to mount this compact unit on the back of your monitor, you can still power on conveniently from the front, by simply pressing Alt+P on your keyboard. Or use the M83 Tiny with our new modular all-in-one, the Tiny-in-One 23, which lets you power on from the front of the monitor. Plenty of Storage The M83 includes optional second HDD (2.5 inches) and dual graphic card support. Up to three hard drives and one slim ODD supported.

Solid Security & Manageability (monitor not included)

PC Cloud Manager 3.0

Keep your PC fleet healthy and green as you effortlessly monitor and manage your desktop's health and power consumption.

Lenovo Solution Center

Lenovo Solution Center provides access to a simplified dashboard that reflects total system health. This hardware diagnostic tool allows quick access to frequently used system management tools, including backup and restore, antivirus and firewall settings, system/software updates, internet connections, and service and support. Drastically speed migration time with ThinkVantage System Migration Assistant. Spend less time manually searching for drivers and software updates with ThinkVantage System Update.

Green Leadership

Cisco EnergyWise certification enables enterprise-level power monitoring and Lenovo Desktop Power Manager puts you in control of saving energy and keeping costs down. Plus, with ratings like ENERGY STAR 5.2, ULE Gold, EPEAT® Gold, and 92% efficiency with 80+ Platinum power supply unit (PSU), you can feel good about helping the planet and your bottom line.

Views:

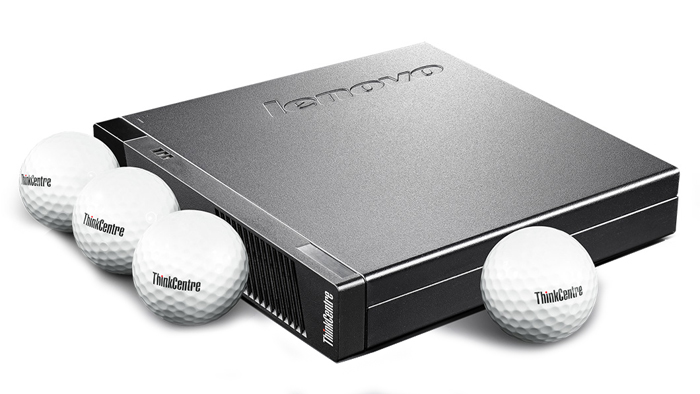

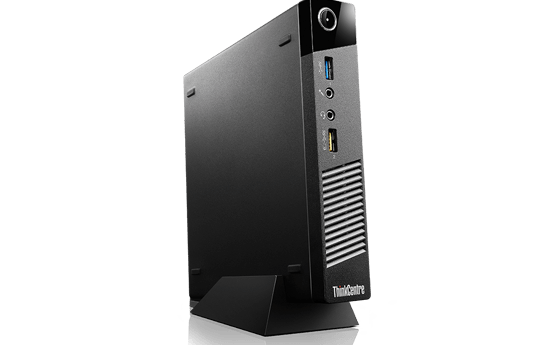

Lenovo ThinkCentre M83 Tiny Desktops (Click to enlarge)

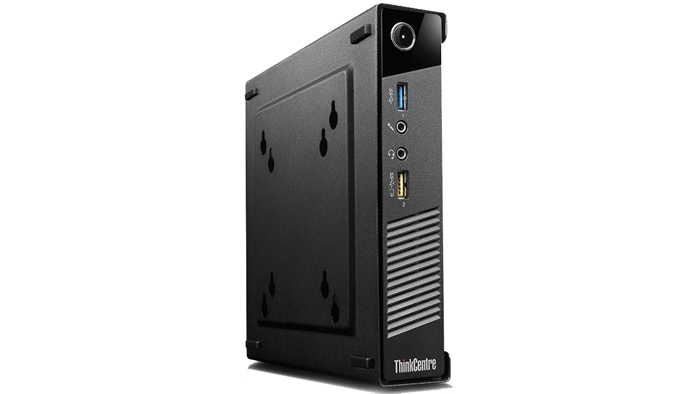

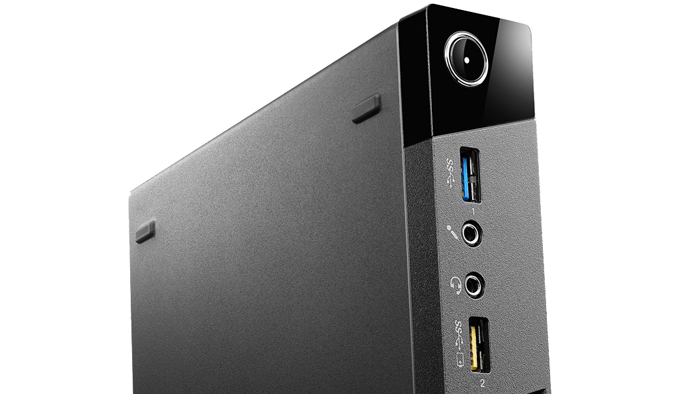

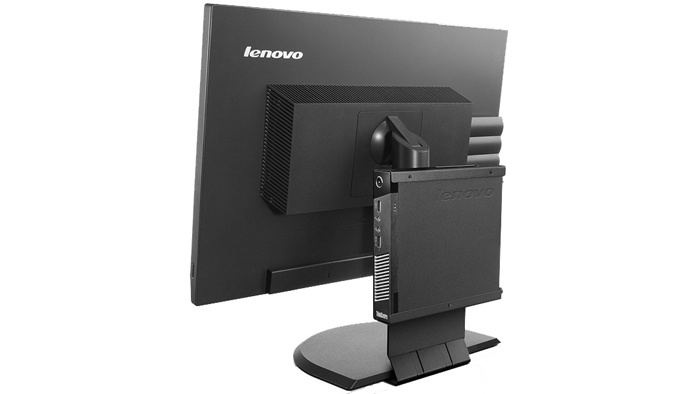

Desktops (Tiny)	Ports Zoom View	Size View	Attached Back Monitor View

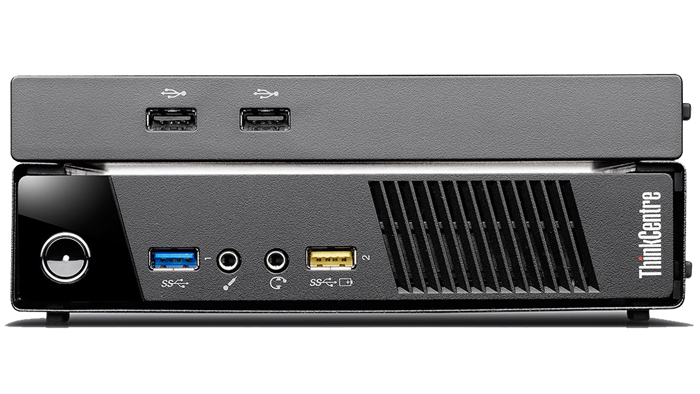

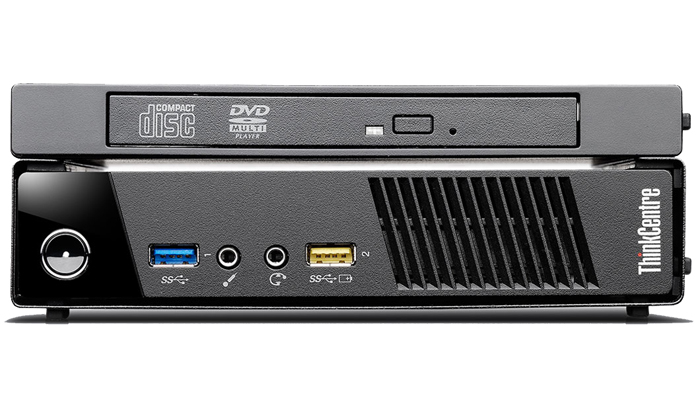

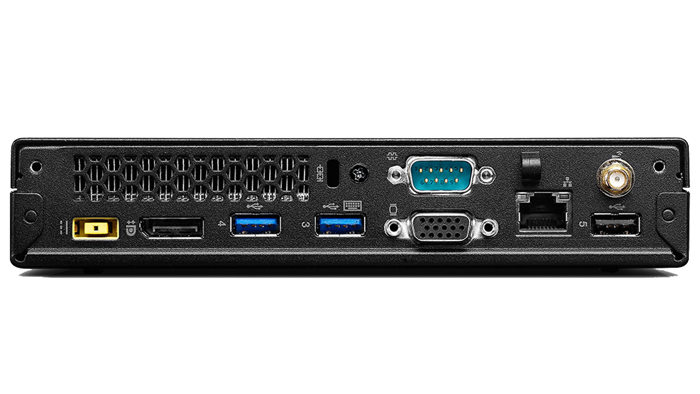

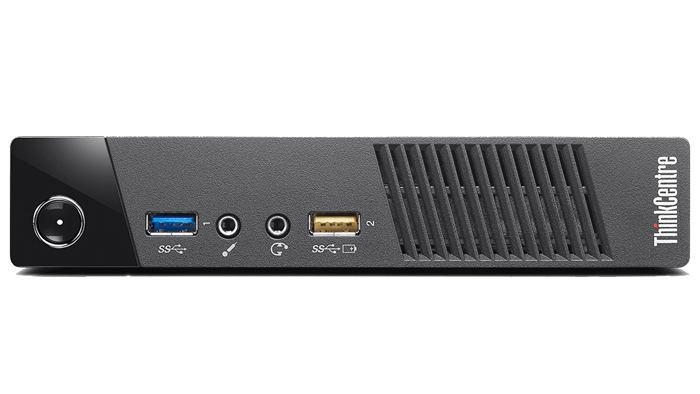

Front View	Rear View	Attach Case Optical Drive Front View	Attach Case USB Front View

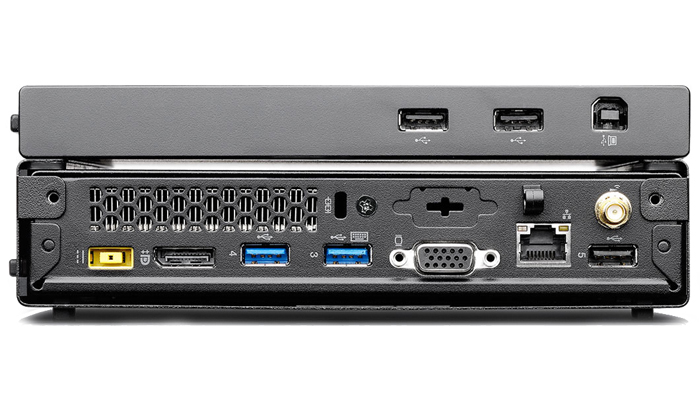

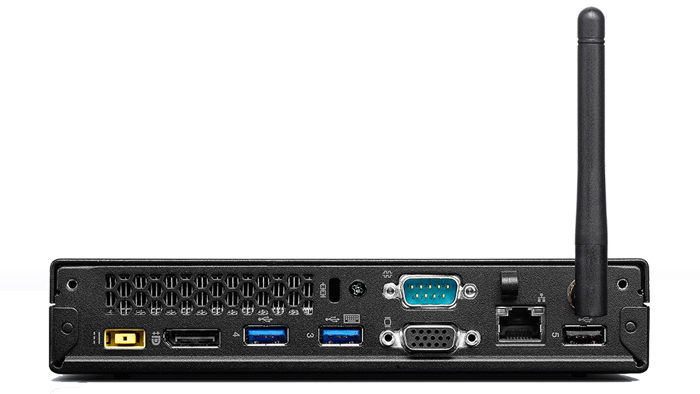

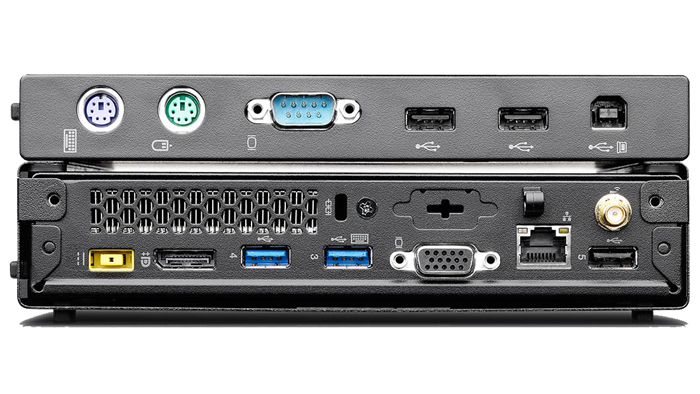

Attach Case Optical Drive Rear View	Attach Case USB Rear View	Rear with Antenna View

Specifications:

Lenovo ThinkCentre M83 Tiny Desktop
Performance
Processor	Up to Intel Core™ i7 4785T processor
Operating System	Windows 8.1 Pro 64 Windows 7 Professional 64 (available through downgrade rights from Windows 8.1 Pro)
Graphics	Integrated: Intel Integrated
Memory	2 SODIMM Maximum 16GB up to 1600 MHz
Storage	Up to 500GB, 8GB Hybrid HDD, SATA Up to 256GB SSD
Optical Drive	Optional slim ODD box
Physical Security	USB individual disable Cable lock Chassis intrusion switch Computrace support
Design
Dimensions (W X D X H)	7.04" x 7.16" x 1.35"
Weight	2.91 lbs
Connectivity
Ports and Slots	Default : USB 3.0, 2 front, 2 rear Additional : USB 2.0 from punch out
Ethernet	Integrated 10M / 100M / 1000M Gigabit Ethernet
Multi Monitor	Up to 3 independent monitor
Fast Charging USB	Yes
USB KB Power-on	Yes

Software

Windows 7 Preloads

• OOBE with Lenovo® EULA
• IE Favorites
• ThinkVantage® Themes on Windows 7
• Device Experience - ThinkCentre® - Lenovo® ThinkVantage® Tools
• Microsoft Office 2013 V15.2 with SP1 Trail, no JP
• Nitro PDF
• Norton® Internet Security 2014 - 30 day trial
• Intel® Small Business Advantage
• Product Recovery
• ThinkVantage® Rescue and Recovery® 4.5 (Ready-to-Install)
• ThinkVantage® System Update 5.0
• Fingerprint SW
• Acrobat Reader X
• Desktop Power Manager 3.2
• Evernote®
• Lenovo® Message Center Plus
• Lenovo® Registration
• Lenovo® Solution Center
• Skype™
• ThinkVantage® Communication Utility
• Lenovo® Reach
• Bluetooth® Security Lock
• Lenovo® SHAREit
• PCM3.0
• PCM3.0 for SCCM
• View Management Utility 3.0

Windows 8 Preloads

• OOBE Customization
• IE Favorites
• ThinkVantage® Themes on Windows 8.1
• Device Stage - ThinkCentre® - Lenovo® ThinkVantage®
• Tools
• Microsoft Office 2013 V15.2 with SP1 Trail, no JP
• Nitro PDF
• Norton® Internet Security 2014 - 30 day trial
• Intel® Small Business Advantage
• Password Manager 4.5 - (Ready-to-Install)
• ThinkVantage® System Update 5.0
• Fingerprint SW
• Desktop Power Manager 3.2
• Evernote®
• Lenovo® Solution Center V2.4
• Lenovo® Reach
• Lenovo® SHAREit
• PCM3.0
• PCM3.0 for SCCM
• Lenovo® Support
• Lenovo® Companion
• Lenovo® Solution Center
• Bluetooth® Security Lock
• Nitro Pro 8
• Norton® Suite
• Accuweather® – Not in CS preload
• CyberLink – PowerDVD
• CyberLink – PowerDVD Create which contains
• Power2Go and Power Producer
• JP – Ifilter (JP only)
• Downloadable Diagnostics

Services Offerings

Lenovo offers a comprehensive portfolio of award-winning services to support and protect your ThinkCentre investment. Succeed with substance, and let Lenovo®’s Service support you all the way.

• Priority Technical Support8
  Makes your priority, our priority. 24x7 priority call routing to advanced-level technicians, electronic incident tracking and escalation management services.
• Warranty Upgrades – Onsite And Next Business Day
  Maximizes PC uptime and productivity by providing convenient, fast repair service at your place of business.
• Warranty Extensions (1-to-5 Years Total Duration)
  This fixed-term, fixed-cost service helps accurately budget for PC expenses, protect your valuable investment, and potentially lower the cost of ownership over time.
• Keep Your Drive
  Retain your drive if it should happen to fail, giving you the peace of mind to know that your valuable data is secure.
• Asset Tagging
  Systems come equipped with a professional, flexible asset tag based on your exact specifications. PCs are easily identifiable and trackable right out of the box.

4 TTM of Intel Core i3, Pentium and Celeron with Intel launch
5 Optional
6 Special bid only
7 The term “10/100/1000” or “Gigabit” Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 GB/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.
8 Not available in all regions

Documentation:

Download the Lenovo ThinkCentre M83 Datasheet (PDF).
