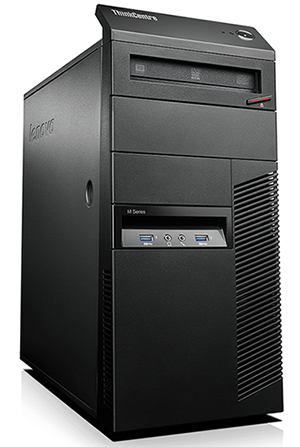

Lenovo ThinkCentre M93p Mini-Tower Desktop
Provides RAID capabilities, Trusted Platform Module (TPM) for added security, Intelligent Cooling Engine (ICE) 3.0

Features:

Mini Tower

Tower desktops provide the ultimate performance with full-featured scalability, yet weigh about 24.25 lbs.

Platform Stability

The M83 desktop features Intel Stable Image Platform Program (SIPP) and a 27-month life cycle with no planned hardware changes that affect the preloaded software image. Image stability for long-term deployments helps to reduce transition, qualification, and testing costs to ensure savings for your business.

Multiple Monitor Display

Maximize productivity with independent display support for up to three monitors – or four via Mosaic Mode. The expanded work area and easier navigation between applications helps reduce errors and improve productivity as you extend your desktop across multiple monitors. (Requires second optional DisplayPort connectors.)

Solid Security & Manageability M83 desktops include some of the best security tools available in the industry, including USB ports disablement to help prevent data theft and network security risks against unauthorized use of storage devices. The Trusted Platform Module (TPM) encrypts data and key information like passwords and digital certificates, further securing applications, electronic transactions, and online communication. Plus the M83 desktop includes a chassis intrusion switch, which alerts against any unauthorized access attempts. Physical security through cable lock and Absolute® Computrace Support. Tool-Less Expandability Upgrades are a cinch for IT staff, with convenient tool-free access to hardware. Especially beneficial when working with multiple desktops. And the M83 includes optional second HDD (2.5 inches) and dual graphic card support. Up to three hard drives and one slim ODD supported. Advanced Thermal Design Our Intelligent Cooling Engine (ICE) 3.0 is designed to provide a balance between thermals and acoustics resulting in long desktop life. With two optimized settings, you choose the performance mode that best suits your work environment, prioritizing temperature or sound. Plus, ICE 3.0 allows for working in hotter temperatures and enables system monitoring with thermal alerts that preempt overheating possibilities.

Solid Security & Manageability (monitor not included)

Green Leadership

Cisco EnergyWise certification enables enterprise-level power monitoring and Lenovo Desktop Power Manager puts you in control of saving energy and keeping costs down. Plus, with ratings like ENERGY STAR 5.2, ULE Gold, and 92% efficiency with 80+ Platinum power supply unit (PSU), you can feel good about helping the planet and your bottom line.

Priority Technical Support

You demand a lot from your system and Lenovo Services help you stay productive. Bypass basic troubleshooting support with direct access to advanced-level technicians to resolve issues quickly. Add Priority Technical Support to your purchase.

Views:

Lenovo ThinkCentre M93p Desktops (Click to enlarge)

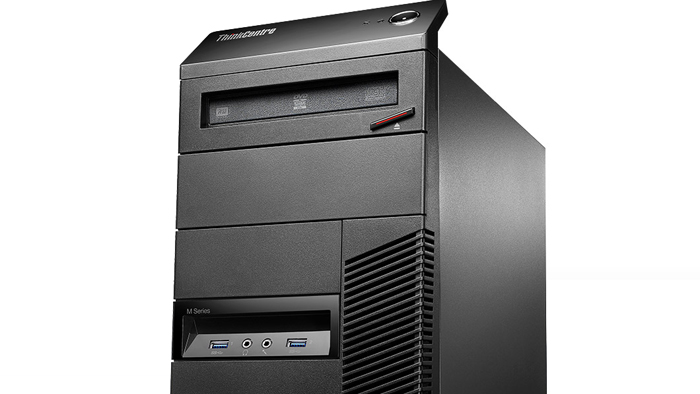

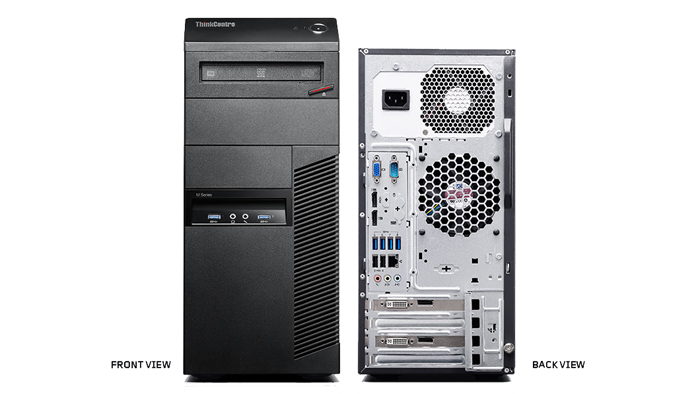

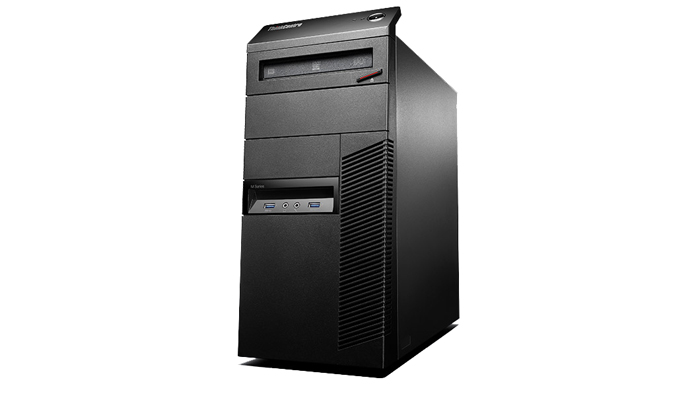

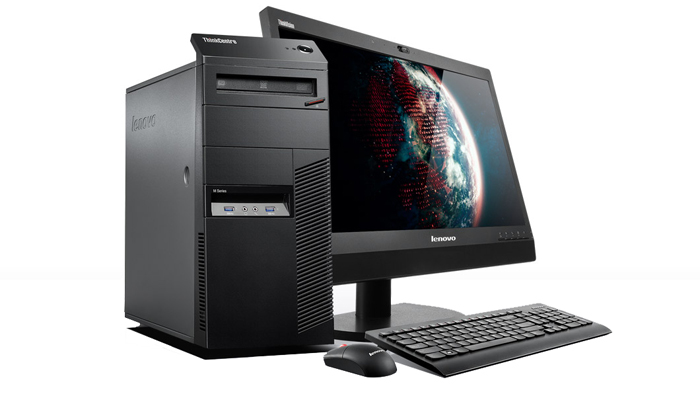

Desktops (Mini Tower)	Front and Rear View	Optical Drive and Ports Zoom View	Desktop with Monitor

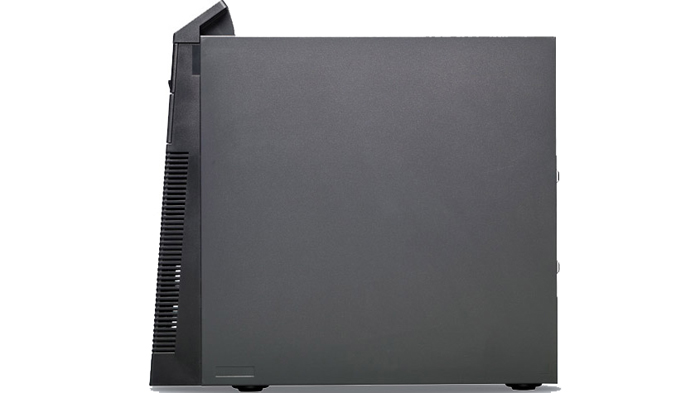

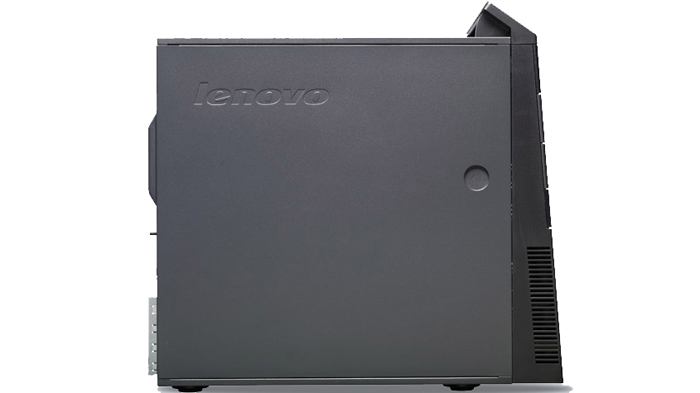

Left Side View	Right Side View

Specifications:

Lenovo ThinkCentre M93p Desktop
Performance
Processor	Intel CoreTM i7-4770 (4th generation) Intel CoreTM i5-4570/4670 (4th generation)
Operating System	Windows 8.1 Pro 64 Windows 8.1 64 Windows 7 Professional 64
Graphics	Integrated: Intel Integrated Discrete: ATI Radeon HD8470, ATI Radeon HD8570, NVIDIA GeForce GT620
Memory	Slots: 4 DIMM Slots, Type: DDR3 (UDIMM), Speed: 1600 MHz, Module Type Supported: 2GB/4GB/8GB, Max: Up to 32GB
Storage	Supported type: Serial-ATA Available drives: 3.5" 7200rpm HDD 250GB/500GB/1TB/2TB, 128GB/180GB SSD, 2.5" 320GB OPAL HDD, 3.5" 1TB/8GB Hybrid HDD, 2.5" 500GB/8GB Hybrid HDD
Optical Drive	Supported type: Serial-ATA, Available drive: DVD-ROM/DVD Recordable
Power Supply	450W 92% Single output, 280W 85% Single output
Physical Security	USB - USB Individual Disable PHYSICAL - Cable Lock/Chassis Intrusion Switch/CompuTrace Support/Padlock Loop
Peripherals	Keyboard: Lenovo Preferred Pro Full-size Keyboard, Lenovo Preferred Pro Fingerprint Keyboard, Lenovo Preferred Pro Full-size Keyboard (PS/2) Mouse: USB Optical Wheel Mouse (PS/2), Lenovo Enhanced Optical USB Mouse Wireless Input: Lenovo Ultra Slim Plus Wireless Keyboard and Mouse Card Reader: 29-in-1 Card Reader
Design
Dimensions (W X D X H)	14.4 x 6.9 x 15.8
Weight	24.7 lbs
Connectivity
I/O Ports	(FRONT) - 2 X USB 3.0, 1 Microphone, 1 Headphone (REAR)- USB: 2 x USB 2.0, 4 x USB 3.0. Display (Output): 1 x VGA, 2 x DP. PS/2: 2(1 for Keyboard, 1 for Mouse) x Optional. Serial: 1 x Standard, 1 x Optional. Parallel: 1 x Optional. LAN (RJ45): 1. Audio: 3(Line in/Line out/Mic)
Slots	PCI: 1 x Full Height, PCI EXPRESS x 1: 1 x Full Height, PCI EXPRESS x 16: 2 x Full Height, MINI PCI EXPRESS x 1: NA
Wireless	(2x2) 802.11 a/b/g/n with vProTM Combo (WLAN+BT), (2x2) 802.11 ac (WLAN), (2x2) 802.11 b/g/n Combo (WLAN+BT), (1x1) 802.11 b/g/n
Ethernet	Integrated 10M/100M/1000M Gigabit Ethernet
Bay and Connectors	Internal: 2 x 3.5". External: 2 x 5.25", 1 x 3.5"

Software

Windows 7 Preloads

• Adobe® Acrobat Reader, CyberLink Power DVD
• CyberLink Create, Desktop Power Manager
• Intel® Small Business Advantage, Evernote
• Lenovo® Message Center Plus
• Microsoft® Office 2013 Trial, Nitro PDF
• Norton® Internet Security 2013 - 30 days Trial
• RapidBoot HDD Accelerator, Skype™
• ThinkVantage® System Update
• Rescue and Recovery® (Ready to Install)
• Password Manager (Ready to Install)

Windows 8 Preloads

• AccuWeather, CyberLink Power DVD
• CyberLink Create, Desktop Power Manager
• Evernote
• Intel® Small Business Advantage
• Lenovo® Companion
• Lenovo® Cloud Shield by SugarSync®
• Lenovo® Quick Launch, Lenovo® Support
• Lenovo® Solution Center, Nitro Pro 7
• Norton® Internet Security 2013 - 30 days Trial
• Password Manager (Web install), PC Device Stage

Services Offerings

Lenovo offers a comprehensive portfolio of award-winning services to support and protect your ThinkCentre investment. Succeed with substance, and let Lenovo’s Service support you all the way.

• Priority Technical Support⁸
  Makes your priority, our priority. 24x7 priority call routing to advanced-level technicians, electronic incident tracking and escalation management services.
• Warranty Upgrades – Onsite And Next Business Day
  Maximizes PC uptime and productivity by providing convenient, fast repair service at your place of business.
• Warranty Extensions (1-to-5 Years Total Duration)
  This fixed-term, fixed-cost service helps accurately budget for PC expenses, protect your valuable investment, and potentially lower the cost of ownership over time.
• Keep Your Drive
  Retain your drive if it should happen to fail, giving you the peace of mind to know that your valuable data is secure.
• Asset Tagging
  Systems come equipped with a professional, flexible asset tag based on your exact specifications. PCs are easily identifiable and trackable right out of the box.

1 Special Bid Only on Tower and SFF
2 Not available in all regions
3 Optional 4 Special Bid only 5 Special Bid only. Available in Q3 2013
6 The term “10/100/1000” or “Gigabit” Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required
7 One x4 Link
8 DP/HDMI/USB2.0/Serial shared through one punch out port
9 Requires USB to Parallel port dongle
10 Via optional Tiny I/O Box

Documentation:

Download the Lenovo ThinkCentre M93p Small Pro Form Factor Datasheet (PDF).
