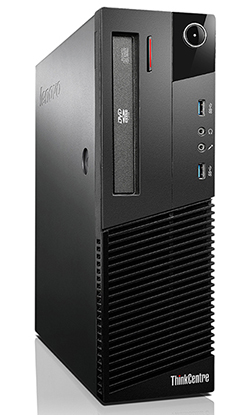

Lenovo ThinkCentre M93p Small Form Factor Desktop
Expandability and performance of a traditional desktop at up to 50% of the size.

Features:

Small Form Factor Pro

The small form factor pro (SFF Pro) desktop weighs in at 17.2 lbs and is designed to fit into tight spaces — it supports both horizontal and vertical orientations. And despite its small size, the M93p SFF desktop supports a second hard drive and dual graphic cards.

Platform Stability

The M93p desktop features 15-month platform stability with no planned hardware changes that affect the preloaded software image. Image stability for long-term deployments helps to reduce transition, qualification, and testing costs to ensure savings for your business.

Multiple Monitor Display

Maximize productivity with independent display support for up to three monitors (quad-monitor support is available in Mosaic mode on select models). The expanded work area and easier navigation between applications helps reduce errors and improve productivity as you extend your desktop across multiple displays. (Requires optional second DisplayPort connector.)

Solid Security & Manageability M93p desktops include some of the best security tools available in the industry, including USB ports disablement to help prevent data theft and network security risks against unauthorized use of storage devices. Trusted Platform Module (TPM) encrypts data and key information like passwords and digital certificates, further securing applications, electronic transactions, and online communication. Plus the M93p desktop includes a chassis intrusion switch, which alerts against any unauthorized access attempts. Intel vPro™ & Active Management Technology The M93p includes Intel vPro™ technology with up to Active Management Technology (AMT) 9.0 support to make enterprise-level manageability even more convenient and cost-saving. SuperSpeed USB 3.0 Enables up to 10 times faster file transfer, allowing for lightning-fast copying of large media files, as well as seamless connections between audio- and video-related peripherals. Backwards-compatible with USB 2.0 devices. Tool-Less Expandability Upgrades are a cinch for IT staff, with convenient tool-free access to hardware. Especially beneficial when applied across multiple desktops.

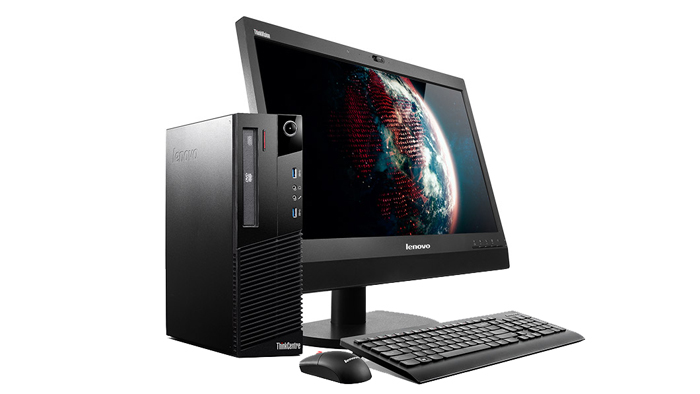

Solid Security & Manageability (monitor not included)

Advanced Thermal Design

Our Intelligent Cooling Engine (ICE) 3.0 is designed to provide a balance between thermals and acoustics resulting in long desktop life. With two optimized settings, you choose the performance mode that best suits your work environment, prioritizing temperature or sound. Plus, ICE 3.0 allows for working in hotter temperatures and enables system monitoring with thermal alerts that preempt overheating possibilities. Manage ICE with PC Cloud Manager 2.0.

Advanced Technical Support

You demand a lot from your system and Lenovo Services is here to help you stay productive. By-pass basic troubleshooting support with direct access to advanced level technicians to resolve issues quickly. Add Priority Technical Support to your ThinkCentre M93p.

Views:

Lenovo ThinkCentre M93p SFF Desktops (Click to enlarge)

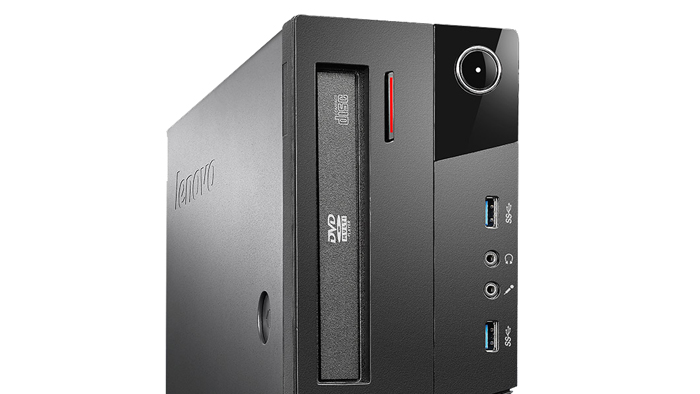

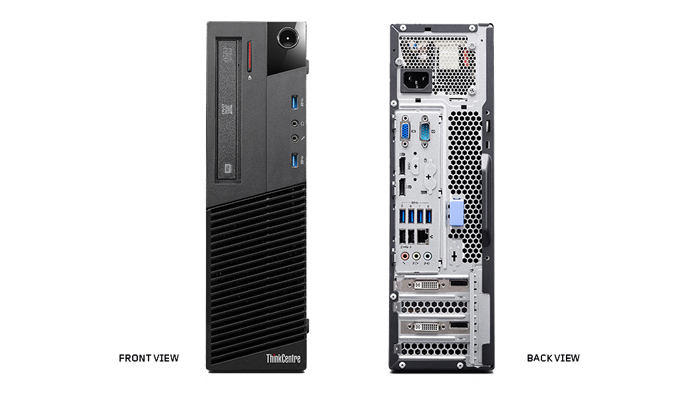

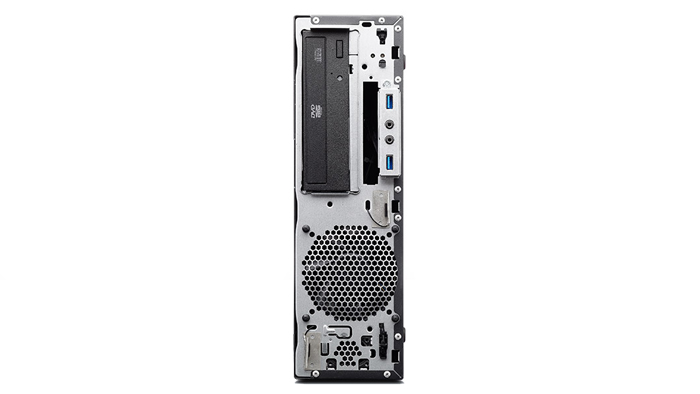

Desktops (Small Form Factor)	Front and Rear View	Front Open View	Front Drive/Ports Zoom View

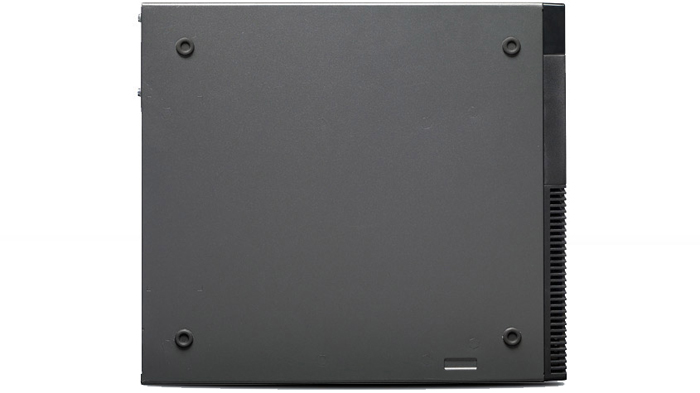

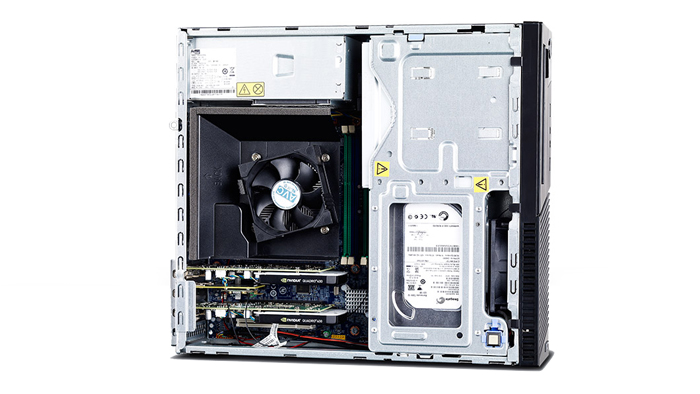

Internal Detail View	Left Side View

Specifications:

Lenovo ThinkCentre M93p SFF Desktop
Performance
Processor	Intel CoreTM i7-4770 (4th generation) Intel CoreTM i5-4570/4670 (4th generation)
Operating System	Windows 8.1 Pro 64 Windows 8.1 64 Windows 7 Professional 64
Graphics	Integrated: Intel Integrated Discrete: ATI Radeon HD8470, ATI Radeon HD8570, NVIDIA GeForce GT620
Memory	Slots: 4 DIMM Slots, Type: DDR3 (UDIMM), Speed: 1600 MHz, Module Type Supported: 2GB/4GB/8GB, Max: Up to 32GB
Storage	Available drives: 3.5" 7200rpm HDD 250GB/500GB/1TB/2TB, 2.5" 5400rpm HDD 320GB/500GB/1TB, 128GB/180GB SSD, 2.5" 320GB OPAL HDD, 3.5" 1TB/8GB Hybrid HDD, 2.5" 500GB/8GB Hybrid HDD
Optical Drive	Supported type: Serial-ATA, Available drive: DVD-ROM/DVD Recordable
Power Supply	450W 92% Single output, 280W 85% Single output
Physical Security	USB - USB Individual Disable PHYSICAL - Cable Lock/Chassis Intrusion Switch/CompuTrace Support/Padlock Loop
Peripherals	Keyboard: Lenovo Preferred Pro Full-size Keyboard, Lenovo Preferred Pro Fingerprint Keyboard, Lenovo Preferred Pro Full-size Keyboard (PS/2) Mouse: USB Optical Wheel Mouse (PS/2), Lenovo Enhanced Optical USB Mouse Wireless Input: Lenovo Ultra Slim Plus Wireless Keyboard and Mouse Card Reader: 29-in-1 Card Reader
Design
Dimensions (W X D X H)	13.3 x 4 x 14.8
Weight	17.2 lbs
Connectivity
I/O Ports	(FRONT) - 2 X USB 3.0, 1 Microphone, 1 Headphone (REAR)- USB: 2 x USB 2.0, 4 x USB 3.0. Display (Output): 1 x VGA, 2 x DP. PS/2: 2(1 for Keyboard, 1 for Mouse) x Optional. Serial: 1 x Standard, 1 x Optional. Parallel: 1 x Optional. LAN (RJ45): 1. Audio: 3(Line in/Line out/Mic)
Slots	PCI: 1 x Low Profile, PCI EXPRESS x 1: 1 x Low Profile, PCI EXPRESS x 16: 2 x Low Profile, MINI PCI EXPRESS x 1: NA
Wireless	(2x2) 802.11 a/b/g/n with vProTM Combo (WLAN+BT), (2x2) 802.11 ac (WLAN), (2x2) 802.11 b/g/n Combo (WLAN+BT), (1x1) 802.11 b/g/n
Ethernet	Integrated 10M/100M/1000M Gigabit Ethernet
Bay and Connectors	Internal: 1 x 3.5", 1 x 2.5"3. External: 1 x 5.25"

Software

Windows 7 Preloads

• Adobe® Acrobat Reader, CyberLink Power DVD
• CyberLink Create, Desktop Power Manager
• Intel® Small Business Advantage, Evernote
• Lenovo® Message Center Plus
• Microsoft® Office 2013 Trial, Nitro PDF
• Norton® Internet Security 2013 - 30 days Trial
• RapidBoot HDD Accelerator, Skype™
• ThinkVantage® System Update
• Rescue and Recovery® (Ready to Install)
• Password Manager (Ready to Install)

Windows 8 Preloads

• AccuWeather, CyberLink Power DVD
• CyberLink Create, Desktop Power Manager
• Evernote
• Intel® Small Business Advantage
• Lenovo® Companion
• Lenovo® Cloud Shield by SugarSync®
• Lenovo® Quick Launch, Lenovo® Support
• Lenovo® Solution Center, Nitro Pro 7
• Norton® Internet Security 2013 - 30 days Trial
• Password Manager (Web install), PC Device Stage

Services Offerings

Lenovo offers a comprehensive portfolio of award-winning services to support and protect your ThinkCentre investment. Succeed with substance, and let Lenovo’s Service support you all the way.

• Priority Technical Support⁸
  Makes your priority, our priority. 24x7 priority call routing to advanced-level technicians, electronic incident tracking and escalation management services.
• Warranty Upgrades – Onsite And Next Business Day
  Maximizes PC uptime and productivity by providing convenient, fast repair service at your place of business.
• Warranty Extensions (1-to-5 Years Total Duration)
  This fixed-term, fixed-cost service helps accurately budget for PC expenses, protect your valuable investment, and potentially lower the cost of ownership over time.
• Keep Your Drive
  Retain your drive if it should happen to fail, giving you the peace of mind to know that your valuable data is secure.
• Asset Tagging
  Systems come equipped with a professional, flexible asset tag based on your exact specifications. PCs are easily identifiable and trackable right out of the box.

1 Special Bid Only on Tower and SFF
2 Not available in all regions
3 Optional 4 Special Bid only 5 Special Bid only. Available in Q3 2013
6 The term “10/100/1000” or “Gigabit” Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required
7 One x4 Link
8 DP/HDMI/USB2.0/Serial shared through one punch out port
9 Requires USB to Parallel port dongle
10 Via optional Tiny I/O Box

Documentation:

Download the Lenovo ThinkCentre M93p Small Pro Form Factor Datasheet (PDF).
