Lenovo ThinkCentre M93 Tiny Desktop
Big Brain, Tiny Footprint.

Features:

Tiny

Our Tiny desktops are the first 1L desktop in the industry. Complete with flexible mounting solutions including support for standard VESA mounts, Tiny desktops fit just about anywhere, yet they provide a reliable, enterprise-level performance that you can depend on.

Platform Stability

The M93p desktop features 15-month platform stability with no planned hardware changes that affect the preloaded software image.  Image stability for long-term deployments helps to reduce transition, qualification, and testing costs to ensure savings for your business.

Multiple Monitor Display

Maximize productivity with independent display support for up to three monitors (quad-monitor support is available in Mosaic mode on select models). The expanded work area and easier navigation between applications helps reduce errors and improve productivity as you extend your desktop across multiple displays. (Requires optional second DisplayPort connector.)*Use of splitter dongle with DisplayPort lowers max resolution to 1920 x 1080.

Solid Security & Manageability M93p desktops include some of the best security tools available in the industry, including USB ports disablement to help prevent data theft and network security risks against unauthorized use of storage devices. Trusted Platform Module (TPM) encrypts data and key information like passwords and digital certificates, further securing applications, electronic transactions, and online communication. Plus the M93p desktop includes a chassis intrusion switch, which alerts against any unauthorized access attempts. Optional Intel WiFi Less cords means even easier setup. Customize your ThinkCentre M93z with an Intel Wireless adapter to enjoy cord-free connectivity to WiFi networks. Intel vPro™ & Active Management Technology The M93p includes Intel vPro™ technology with up to Active Management Technology (AMT) 9.0 support to make enterprise-level manageability even more convenient and cost-saving. SuperSpeed USB 3.0 Enables up to 10 times faster file transfer, allowing for lightning-fast copying of large media files, as well as seamless connections between audio- and video-related peripherals.  Backwards-compatible with USB 2.0 devices.

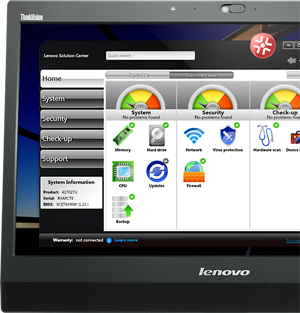

Solid Security & Manageability (monitor not included)

Advanced Thermal Design

Our Intelligent Cooling Engine (ICE) 3.0 is designed to provide a balance between thermals and acoustics resulting in long desktop life. With two optimized settings, you choose the performance mode that best suits your work environment, prioritizing temperature or sound. Plus, ICE 3.0 allows for working in hotter temperatures and enables system monitoring with thermal alerts that preempt overheating possibilities. Manage ICE with PC Cloud Manager 2.0.

Advanced Technical Support

You demand a lot from your system and Lenovo Services is here to help you stay productive.  By-pass basic troubleshooting support with direct access to advanced level technicians to resolve issues quickly.  Add Priority Technical Support to your ThinkCentre M93p.

Views:

Lenovo ThinkCentre M93p SFF Desktops (Click to enlarge)

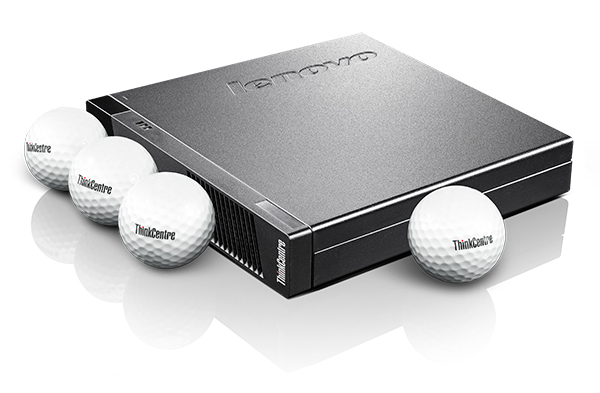

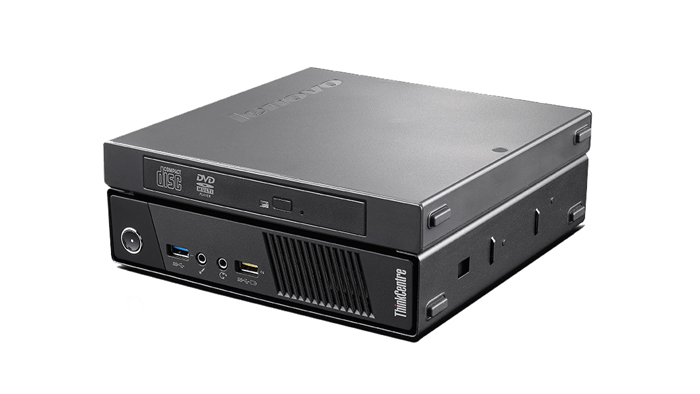

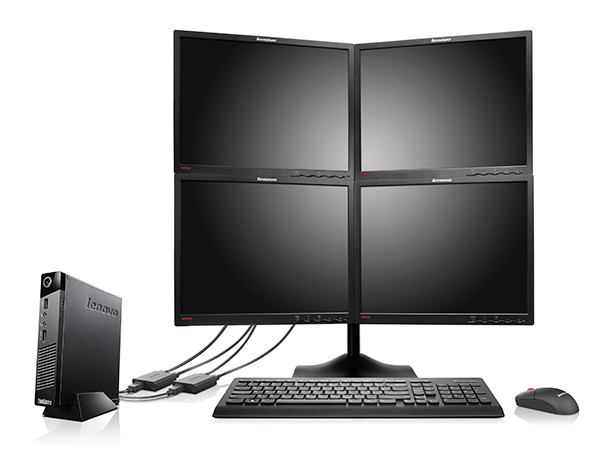

Standing with 4 Monitors View	Comparing Size to Golf Balls View	Laying Down View	Attach Case Optical Drive View

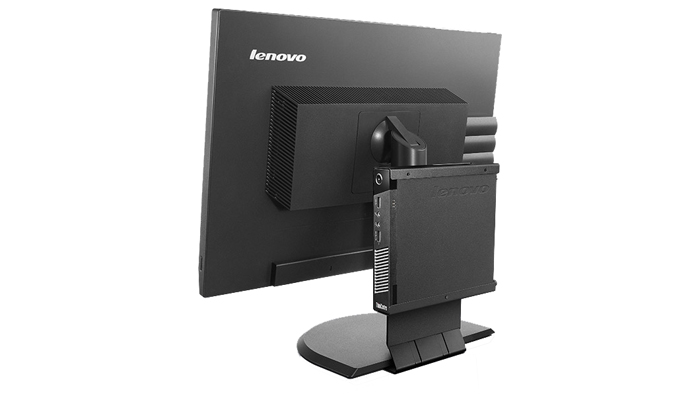

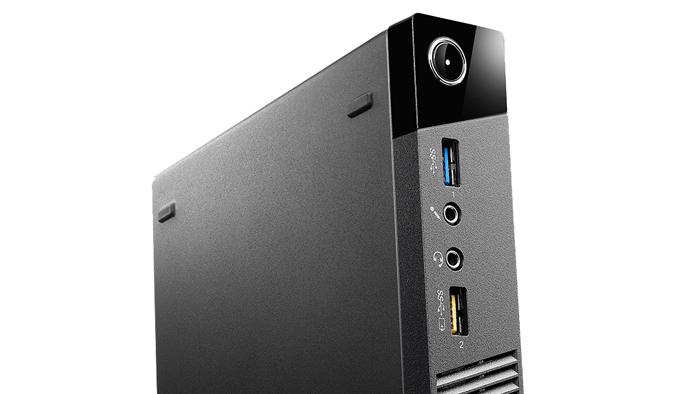

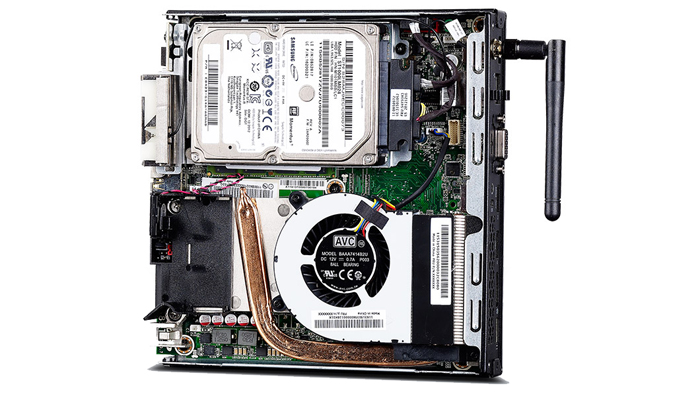

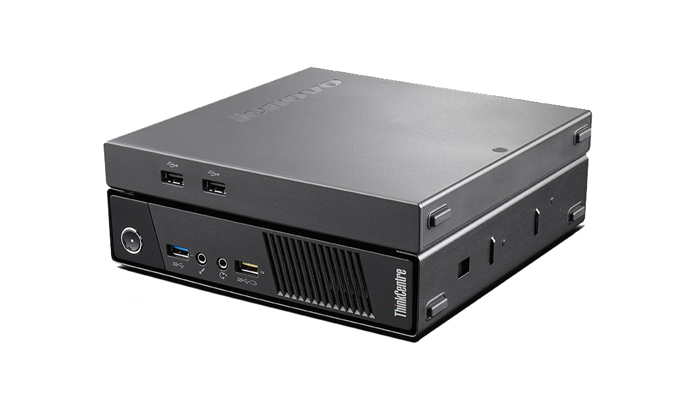

Attach Case USB View	Attached Back Monitor View	Front Ports Zoom View	Internal Detail View

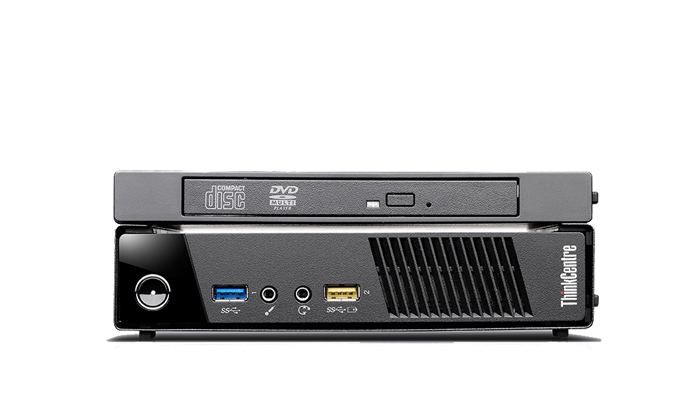

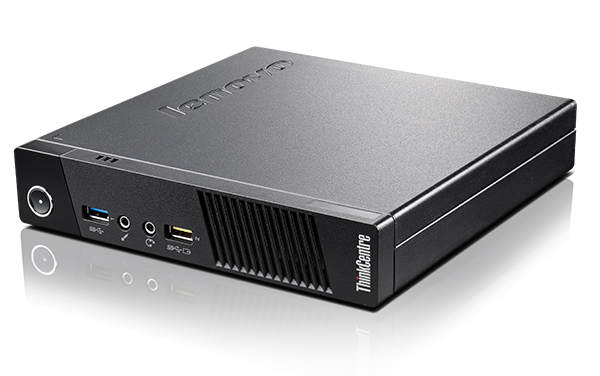

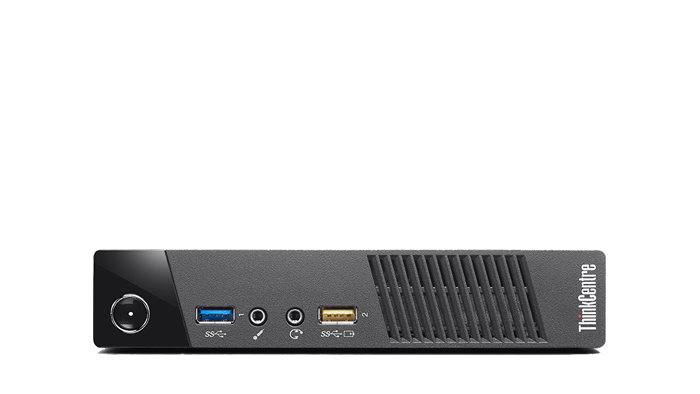

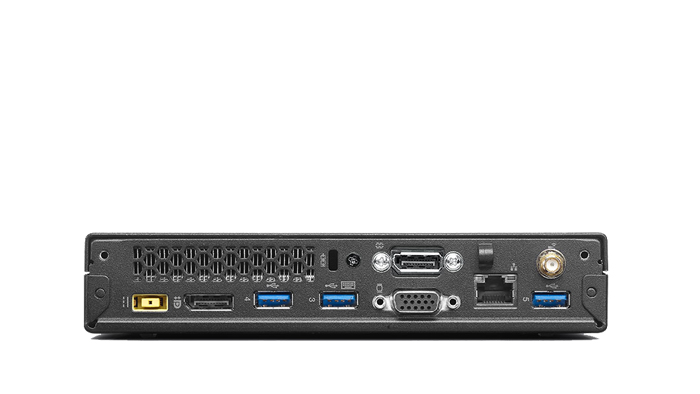

Front View	Rear View	Attach Case Optical Drive Front View	Attach Case Optical Drive Rear View

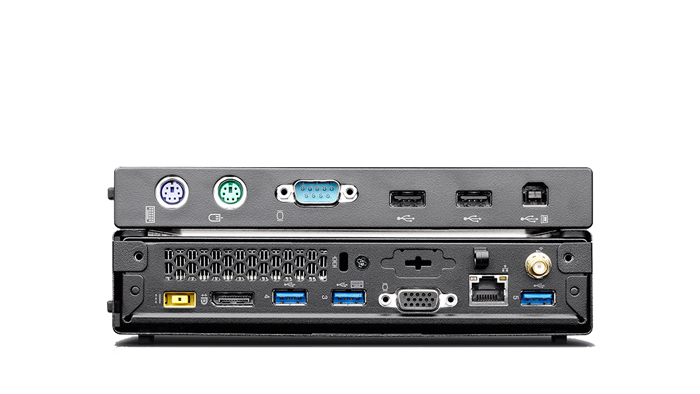

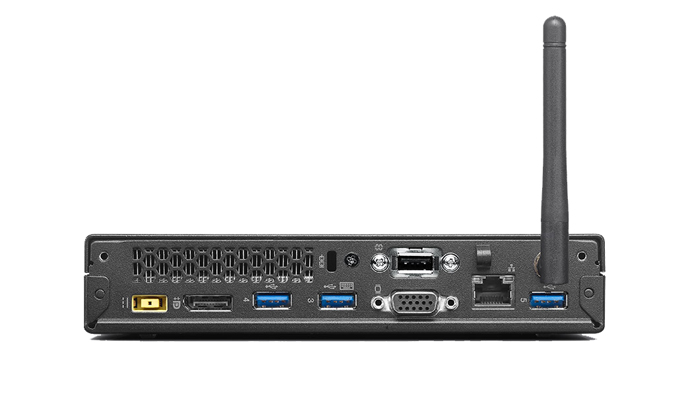

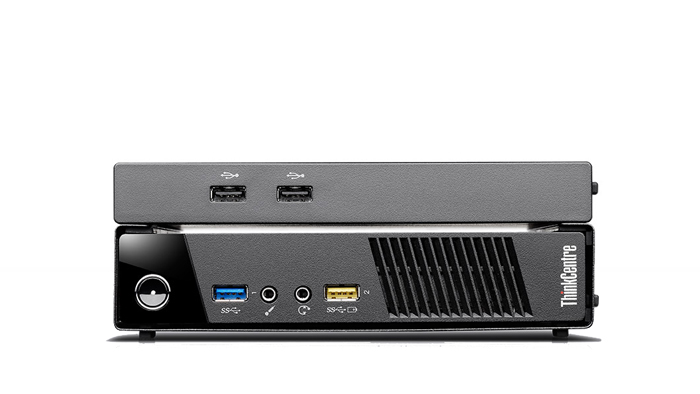

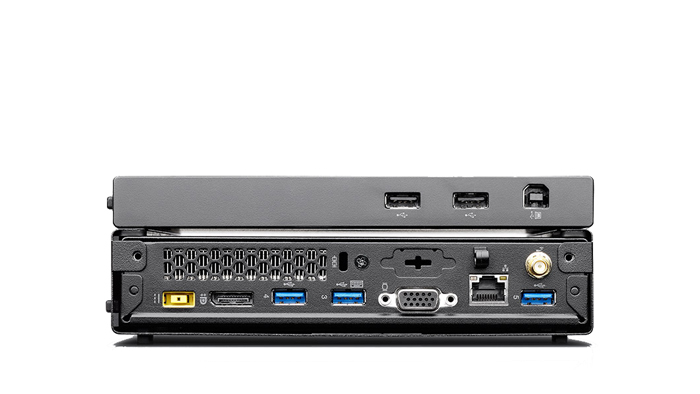

Attach Case USB Front View	Attach Case USB Rear View	Rear View with Antenna

Specifications:

Lenovo ThinkCentre M93p Tiny Desktop
Performance
Processor	Intel CoreTM i7-4765T 2.0GHz 8M (4th generation) Intel CoreTM i5-4570T 2.9GHz 4M (4th generation)
Operating System	Windows 8 Windows 8 Pro Windows 7 Home Premium Windows 7 Professional
Graphics	Integrated: Intel Integrated Discrete: N/A
Memory	Slots: 2 SODIMM Slots, Type: DDR3 (SODIMM) Speed: 1600 MHz, Module Type Supported: 2GB/4GB/8GB, Max: Up to 16GB
Storage	Available drives: 500GB/1TB 2.5" 5400 RPM HDD; 128GB/180GB 2.5" SSD
Optical Drive	Available drive: Slim DVD-ROM/DVD Recordable
Power Supply	65W 87% External Adapter
Physical Security	USB - USB Individual Disable PHYSICAL - Cable Lock/Chassis Intrusion Switch/CompuTrace Support/Padlock Loop (TW/SFF only)
Peripherals	Keyboard: Lenovo Preferred Pro Full-size Keyboard, Lenovo Preferred Pro Fingerprint Keyboard, Lenovo Preferred Pro Full-size Keyboard (PS/2) Mouse: USB Optical Wheel Mouse (PS/2), Lenovo Enhanced Optical USB Mouse Wireless Input: Lenovo Ultra Slim Plus Wireless, Keyboard and Mouse
Design
Dimensions (W X D X H)	7 x 1.35 x 7.17
Weight	2.9 lbs.
Connectivity
I/O Ports	(FRONT - 2 x USB 3.0, 1 Microphone, 1 Headphone (Support Mic Function) REAR - USB: 3 x USB 3.0, Display (Output): 1 x VGA, 1 x DP, 1 x DP (Optional) or 1 x HDMI (Optional). PS/2: 2 (1 for Keyboard, 1 for Mouse). Serial: 1 x Optional. Parallel: 1 x Optional. LAN (RJ45): 1. Audio: N/A. AC-IN: 1 x 65W adapter AC-IN
Slots	PCI: NA, PCI EXPRESS x 1: NA, PCI EXPRESS x 16: NA MINI PCI EXPRESS x 1: 1 x Mini PCI-E
Wireless	(2x2) 802.11 a/b/g/n with vPro Combo (WLAN+BT), (2x2) 802.11 ac (WLAN), (2x2) 802.11 b/g/n Combo (WLAN+BT), (1x1) 802.11 b/g/n
Ethernet	Integrated 10M/100M/1000M Gigabit Ethernet
Bay and Connectors	Internal: 1 x 2.5"

Software

Windows 7 Preloads

• Adobe® Acrobat Reader, CyberLink Power DVD
• CyberLink Create, Desktop Power Manager
• Intel® Small Business Advantage, Evernote
• Lenovo® Message Center Plus
• Microsoft® Office 2013 Trial, Nitro PDF
• Norton® Internet Security 2013 - 30 days Trial
• RapidBoot HDD Accelerator, Skype™
• ThinkVantage® System Update
• Rescue and Recovery® (Ready to Install)
• Password Manager (Ready to Install)

Windows 8 Preloads

• AccuWeather, CyberLink Power DVD
• CyberLink Create, Desktop Power Manager
• Evernote
• Intel® Small Business Advantage
• Lenovo® Companion
• Lenovo® Cloud Shield by SugarSync®
• Lenovo® Quick Launch, Lenovo® Support
• Lenovo® Solution Center, Nitro Pro 7
• Norton® Internet Security 2013 - 30 days Trial
• Password Manager (Web install), PC Device Stage

Services Offerings

Lenovo offers a comprehensive portfolio of award-winning services to support and protect your ThinkCentre investment. Succeed with substance, and let Lenovo’s Service support you all the way.

• Priority Technical Support⁸
  Makes your priority, our priority. 24x7 priority call routing to advanced-level technicians, electronic incident tracking and escalation management services.
• Warranty Upgrades – Onsite And Next Business Day
  Maximizes PC uptime and productivity by providing convenient, fast repair service at your place of business.
• Warranty Extensions (1-to-5 Years Total Duration)
  This fixed-term, fixed-cost service helps accurately budget for PC expenses, protect your valuable investment, and potentially lower the cost of ownership over time.
• Keep Your Drive
  Retain your drive if it should happen to fail, giving you the peace of mind to know that your valuable data is secure.
• Asset Tagging
  Systems come equipped with a professional, flexible asset tag based on your exact specifications. PCs are easily identifiable and trackable right out of the box.

1 Special Bid Only on Tower and SFF
2 Not available in all regions
3 Optional 4 Special Bid only 5 Special Bid only. Available in Q3 2013
6 The term “10/100/1000” or “Gigabit” Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required
7 One x4 Link
8 DP/HDMI/USB2.0/Serial shared through one punch out port
9 Requires USB to Parallel port dongle
10 Via optional Tiny I/O Box

Documentation:

Download the Lenovo ThinkCentre M93p Desktops Datasheet (PDF).
