Lenovo ThinkCentre M93z All-in-One (23" display)
Transform the way you do business.

Features:

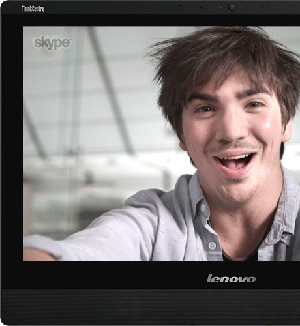

Built for Collaboration The M93z's 23" full HD LED display with in-plane switching (IPS) offers a wide viewing angle — nearly 180 degrees — so multiple users can read the screen’s contents from different positions around the PC. High performance anti-glare glass, available on touchscreen models, enhances collaboration, as does the sensitive, 10-point multitouch technology that powers the touch experience. Industry-Leading VoIP Engage in crystal-clear teleconferences with Microsoft Lync™-qualified, Skype-ready, VoIP-optimized software and hardware, including a 2MP HD webcam, stereo speakers with Dolby® Advanced Audio™, and a digital array microphone. Solid Security & Manageability The M93z offers some of the best security tools available in the industry, including USB ports disablement to help prevent data theft and network security risks against unauthorized use of storage devices. Trusted Platform Module (TPM) encrypts data and key information like passwords and digital certificates, further securing applications, electronic transactions, and online communication. Intel vPro™ & Active Management Technology Streamline common IT functions and keep sensitive data safe. Benefits of the technology include speedy data encryption/decryption, protection from unauthorized access and remote management. Optional Intel WiFi Less cords means even easier setup. Customize your ThinkCentre M93z with an Intel Wireless adapter to enjoy cord-free connectivity to WiFi networks. SuperSpeed USB 3.0 Enables up to 10 times faster file transfer, allowing for lightning-fast copying of large media files, as well as seamless connections between audio- and video-related peripherals. Backwards-compatible with USB 2.0 devices. View Management Utility Take advantage of multiple active displays, and enjoy faster multitasking: The expanded work area and easier navigation between applications helps reduce errors and improve productivity as you extend your desktop across multiple displays. Tool-Less Expandability Upgrades are a cinch for IT staff, with convenient tool-free access to hardware.

Built for Collaboration Industry-Leading VoIP

Advanced Thermal Design

Our Intelligent Cooling Engine (ICE) 3.0 is designed to provide a balance between thermals and acoustics resulting in long desktop life. With two optimized settings, you choose the performance mode that best suits your work environment, prioritizing temperature or sound. Plus, ICE 3.0 allows for working in hotter temperatures and enables system monitoring with thermal alerts that preempt overheating possibilities. Manage ICE with PC Cloud Manager 2.0.

Advanced Technical Support

You demand a lot from your system and Lenovo Services is here to help you stay productive. By-pass basic troubleshooting support with direct access to advanced level technicians to resolve issues quickly. Add Priority Technical Support to your ThinkCentre M93z.

EPEAT Gold and ENERGY STAR Certification

Save energy and reduce your power consumption costs – good for the environment and your bottom line.

Views:

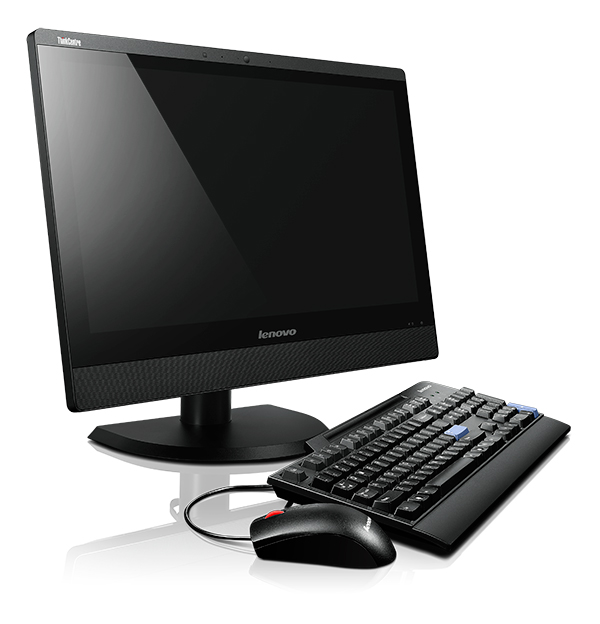

Lenovo ThinkCentre M93z AIO (23" display) (Click to enlarge)

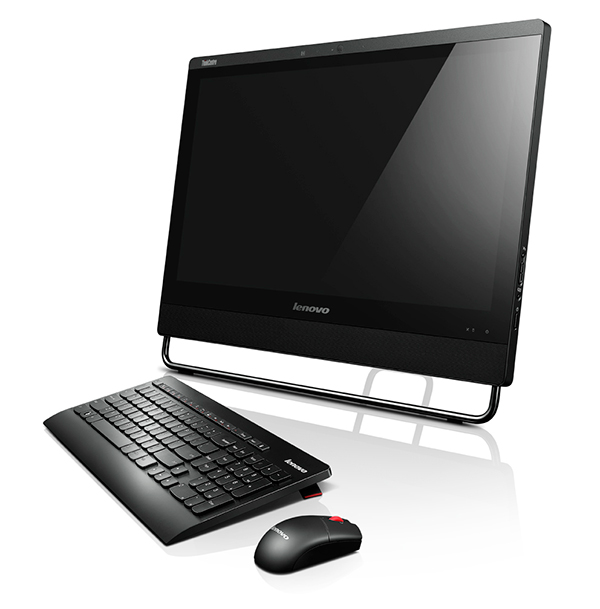

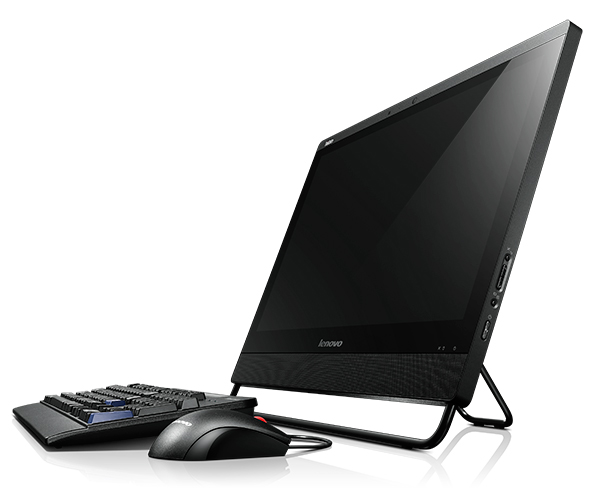

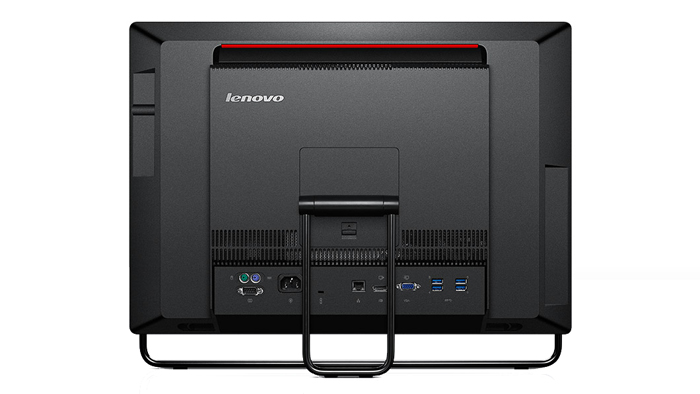

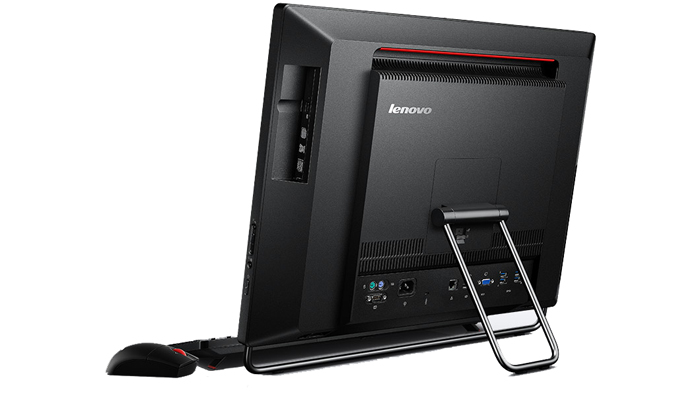

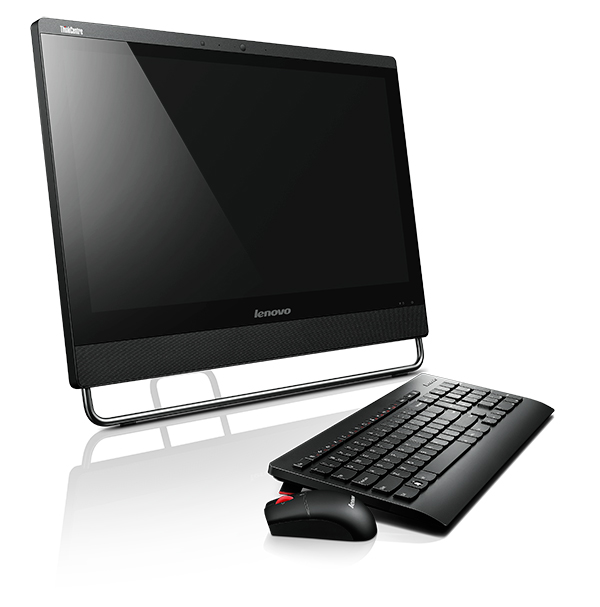

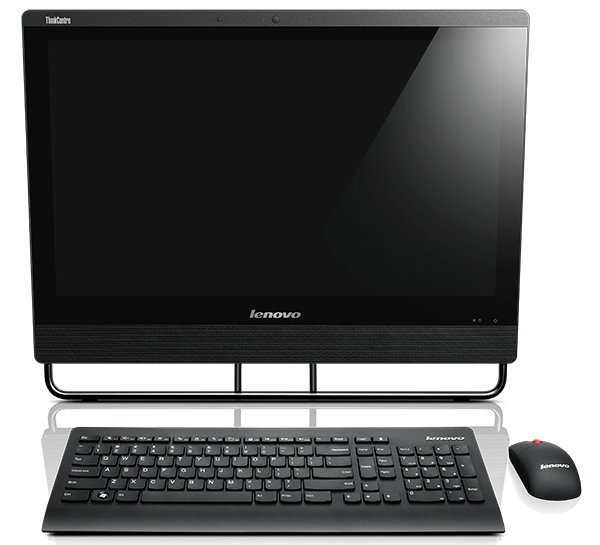

Front View	Left View	Right View	Rear View

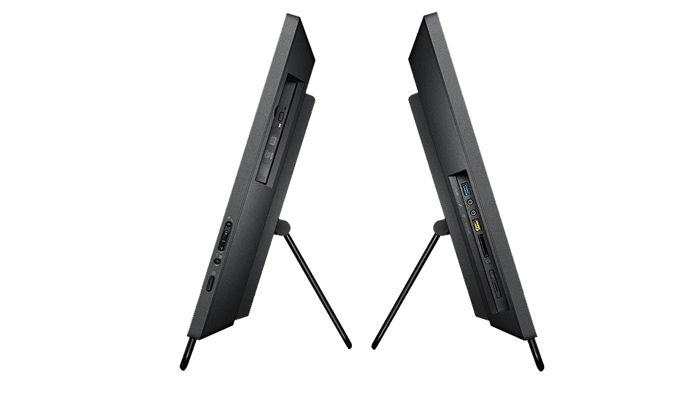

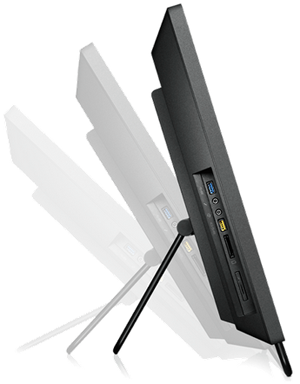

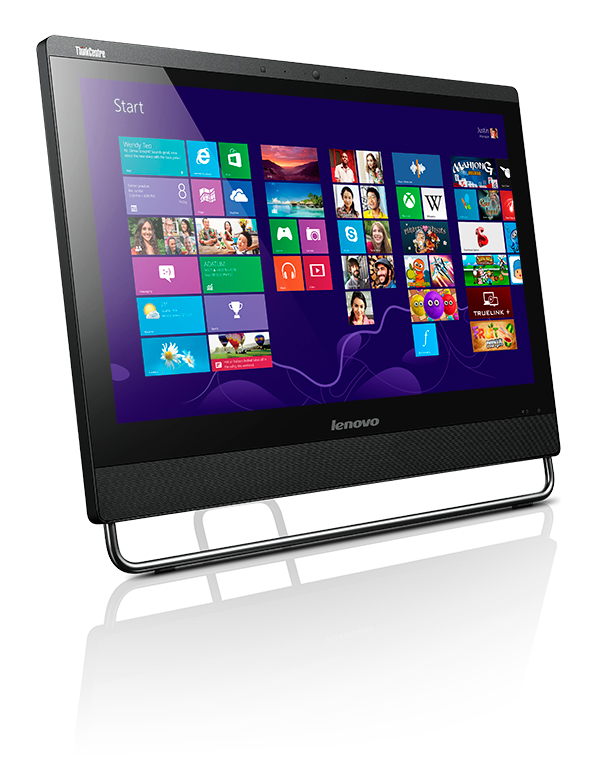

Right Closeup View	Rear Closeup View	Screen on View	Right and Left Sides View

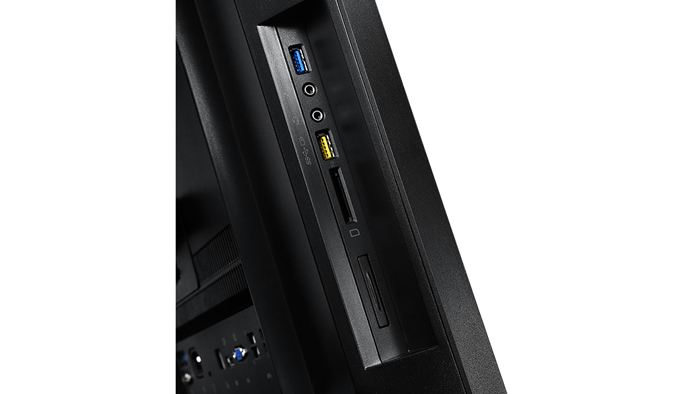

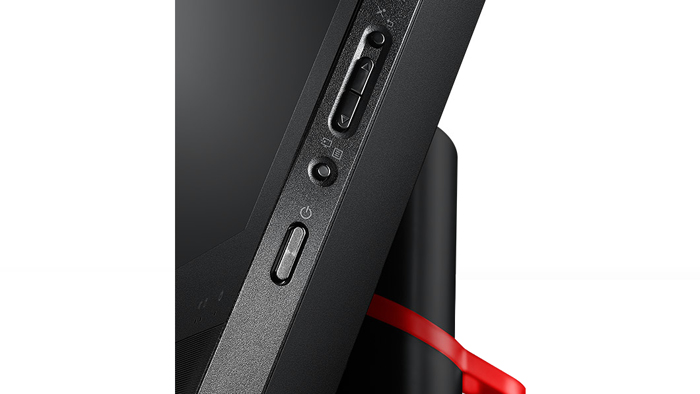

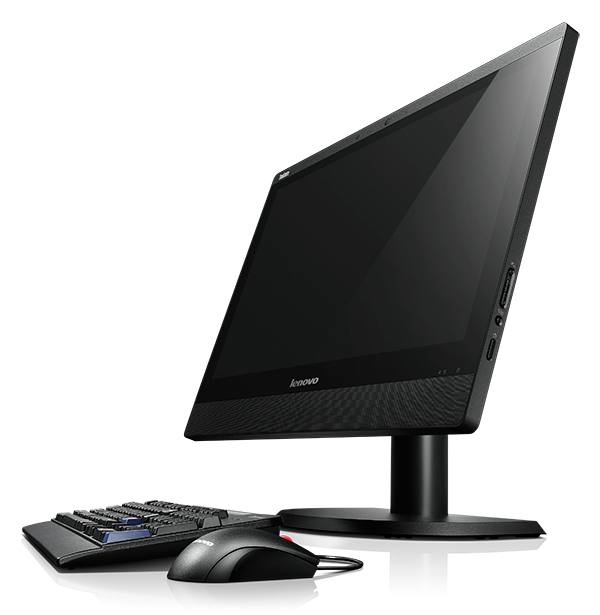

Right Sides Zoom View	Left Sides Zoom View	Left Stand View	Right Stand View

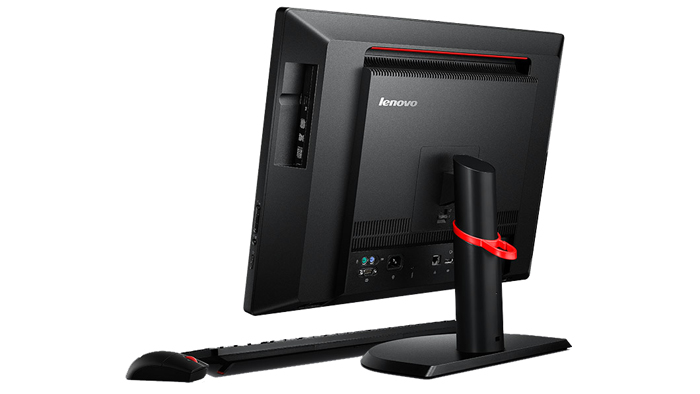

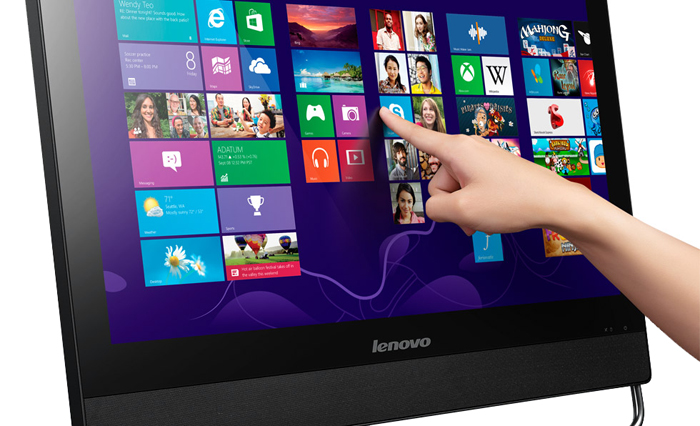

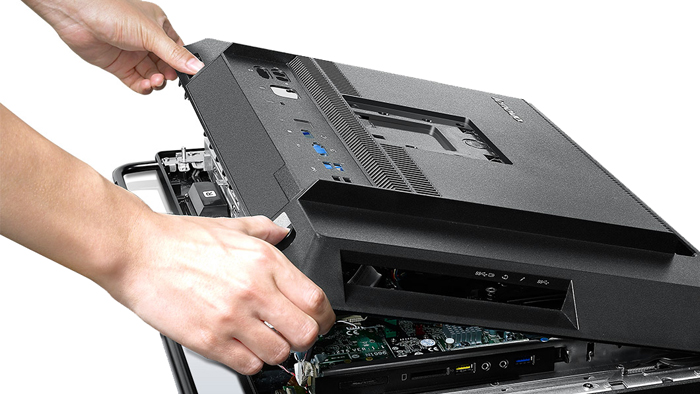

Left Stand View	Rear Stand View	Touch Front View	Rear Open View

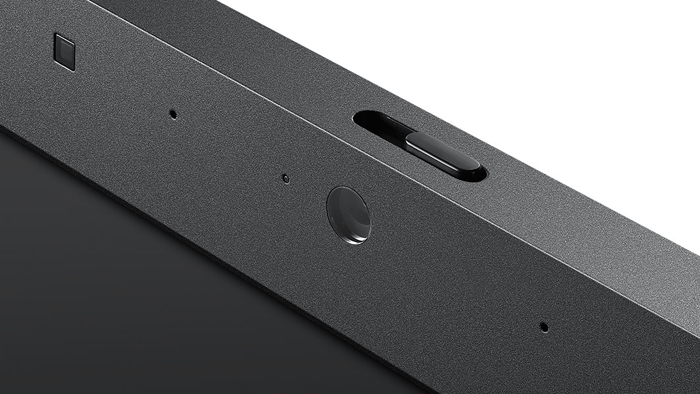

Webcam View

Specifications:

Lenovo ThinkCentre M93z AIO (23" display)
Performance
Processor	Intel Pentium G3220 / G3420 3M 4th Gen Intel Core™ i3-4130 / 4330 3M / 4M 4th Gen Intel Core™ i7-4765T / 4770S 8M 4th Gen Intel Core™ i5-4440S / 4570S / 4670S 6M
Operating System	Windows 8.1 Pro 64 Windows 8 64 Windows 7 Professional 64
Chipset	Intel Q87
Graphics	Intel HD Graphics
Memory	Up to 16GB DDR3 1600 MHz, 2DIMM
Storage	500GB 7200rpm SATA 1TB 7200rpm SATA 128GB Solid State Drive, 2.5", SATA
Audio	3W x 2, internal Stereo Speaker
Optical Drive	Slim DVD Burner/CD-RW, SATA
Power Supply	Internal, 150W 85% (ES, Climate Saver) Internal, 180W 92% (ES, Climate Saver)
Physical Security	Asset ID/LAN Surge Computrace Kensington Lock (Optional) Cable lock (Optional)
Webcam	2 megapixel, low light sensitive
Design
Display	23" Wide IPS LED (16:9) 1920 x 1080 / optional MultiTouch Enhanced Anti-glare
Dimension and Weight With Stand	MONITOR STAND 23" TOUCH: 22.36" x 17.28 ~ 18.85" x 9.72", 28.13 lbs MONITOR STAND 23" NON-TOUCH: 22.36" x 17.28 ~ 18.85" x 9.72", 25.74 lbs
Dimension and Weight Without Stand	23" TOUCH: 22.36" x 15.78" x 2.69", 22.35 lbs 23" NON-TOUCH: 22.36" x 15.78" x 2.63", 18.95 lbs
Keyboard	USB Fullsize - US English (Optional) Lenovo USB FingerPrint Keyboard - US English (Optional)
Mouse	Edge Mouse (Optional)
Connectivity
I/O Ports	Display port output (with audio) VGA input 1 x 3.5 mm Combo Jack 1 x MIC jack (2x side) USB 3.0, 1x supports Rapid Charge (4x rear) USB 3.0
Wireless	Intel Centrino Wireless-N 2230 Intel Centrino Advanced-N 6235, Dual Band
Ethernet	1 Gigabit (10/100/1000)

Dimension (W X D X H) With Stand	23" Touch	23" Non-Touch
Frame Stand	568 mm x 447.3 mm x 94 mm(22.36” x 17.61” x 3.70”)	568 mm x 447.3 mm x 93 mm(22.36” x 17.61” x 3.66”)
Monitor Stand	568 mm x 439 ~ 479 mm x 247 mm(22.36” x 17.28 ~ 18.85” x 9.72”)	568 mm x 439 ~ 479 mm x 247 mm(22.36” x 17.28 ~ 18.85” x 9.72”)
Weight With Stand - Frame Stand	11.3 kg (24.91 lbs)	9.76 kg (21.51 lbs)
Weight With Stand - Monitor Stand	12.76 kg (28.13 lbs)	11.68 kg (25.74 lbs)

Dimension (W X D X H) Without Stand	23" Touch	23" Touch GPU	23" Non-Touch
	568 mm x 401 mm x 68.5 mm(22.36” x 15.78” x 2.69”)	568 mm x 401 mm x 68.5 mm(22.36” x 15.78” x 2.69”)	568 mm x 401 mm x 67 mm(22.36” x 15.78” x 2.63”)
Weight Without Stand	10.14 kg (22.35 lbs)	10.24 kg (22.57 lbs)	8.60 kg (18.95 lbs)

Software

Preloaded Applications

• Lenovo® Solution Centre
• Simple Tap
• PC Cloud Manager (vPro)
• Auto PC Lock
• Communication Utility
• View Management Utility
• Product Recovery
• ThinkVantage® (Message Centre Plus / Rescue & Recovery® / Power Manager / System Update)
• Corel DVD Movie Factory (DMF 7 SD)
• Cyberlink PowerDVD
• Cyberlink PowerDVD Create
• Microsoft Office 2013 Trial
• Norton® Internet Security Trial

Services Offerings

Lenovo offers a comprehensive portfolio of award-winning services to support and protect your ThinkCentre investment. Succeed with substance, and let Lenovo’s Service support you all the way.

• Priority Technical Support⁸
  Makes your priority, our priority. 24x7 priority call routing to advanced-level technicians, electronic incident tracking and escalation management services.
• Warranty Upgrades – Onsite And Next Business Day
  Maximizes PC uptime and productivity by providing convenient, fast repair service at your place of business.
• Warranty Extensions (1-to-5 Years Total Duration)
  This fixed-term, fixed-cost service helps accurately budget for PC expenses, protect your valuable investment, and potentially lower the cost of ownership over time.
• Keep Your Drive
  Retain your drive if it should happen to fail, giving you the peace of mind to know that your valuable data is secure.
• Asset Tagging
  Systems come equipped with a professional, flexible asset tag based on your exact specifications. PCs are easily identifiable and trackable right out of the box.

3 Available in October 2013
4 10 point touch solution
5 Discrete GPU model only

Documentation:

Download the Lenovo ThinkCentre M93z Datasheet (PDF).
