Lenovo ThinkPad Helix
A Business-Ready Ultrabook and a Detachable Tablet in One.
- Intel Core M5Y70 1.8GHz, 8GB Ram, 256GB SSD, 11.6” FHD Touchscreen, Front/Rear Cam, BT, WiFi, Digitizer/Pen, Win 8 Pro 64, 3 Year Depot
Get a Quote!
Click here to jump to more pricing!
Overview:
The new ultrabook convertible defines the next generation of mobile computing through its ground breaking “rip and flip” design. This special design gives users absolute mobile freedom and versatility with four unique ways to use it. It’s an ultra flexible machine with four usage modes – laptop mode, tablet mode, stand mode and tablet+ mode.
- 3rd Generation Intel Core™ Processors
- Operating System Windows 8 64-bit Operating System
- Multi Mode Rip & Flip for True Multimode Freedom
- Multi Touch 11.6" Full-HD Display with 10-Point Multitouch
- Ultrabook Precise Control with Digitizer Pen Support
 |
 |
 |
 |
| Convertible Device A device that can flip, fold, or detach into two. |
Windows 8 Optimized Swipe, scroll or zoom on the Windows 8 interface with pen and multitouch inputs. |
Full 1080p HD Display High-resolution display for a premium viewing experience protected by Corning Gorilla glass. |
Long Battery Life Up to 10 hours—the most in an Ultrabook™ Convertible. |
Features:
Laptop, Tablet, Stand, and Tablet+ ModesWork at a desk in laptop mode, get mobile in tablet mode, and share data and presentations by placing Helix in stand mode—simply dock the tablet backward with the enhanced keyboard. Fold it down onto the base for Tablet+ Mode and get more power, ports, and battery life than a standard tablet. Full HD 1920 x 1080 IPS DisplayVibrant, wide-view 11.6" 400-nit Corning® Gorrilla® glass IPS display with ten-finger multi-touch technology seamlessly integrates with Windows 8 and allows more precise control as well as a vivid and immersive viewing experience on the tablet laptop hybrid. Get Online Wherever You AreAlways on, always connected: embedded 3G support, NFC and WiFi. Digitizer Pen SupportThe optional ThinkPad digitizer and pen performs capacitive touchscreen functions—swipe, drag, open, click—with precise control and converts your handwriting into digital text, all on this hybrid tablet laptop. Dual Cameras2MP front-facing webcam for crystal-clear video conferencing; 5MP rear-facing camera with LED flash and 30 fps video recording. Dolby Home Theater v4 and Dual Stereo SpeakersIncreased audio clarity and maximized volume output without distortion — enjoy a crisp, clear immersive surround sound experience. Advanced Security FeaturesIntel® vPro™ and AMT technology, BIOS encryption, Kensington Lock port ,TPM chip and Computrace® support make the Helix an enterprise ready business tool. Tablet With Full-Sized, Spill-Resistant Keyboard, & Intelligent TouchpadThe legendary ThinkPad ergonomic keyboard is renowned for its full array of keys, excellent feel, and TrackPoint® pointing device. It is also spill-resistant, protecting circuitry from liquid exposure. |
|
Complete Connectivity
USB 2.0 port, Mini DisplayPort on tablet – use with keyboard dock to add two USB 3.0 ports and another Mini DisplayPort.
Views:
Lenovo Thinkpad Helix Ultrabook™ Convertible (Click to enlarge)

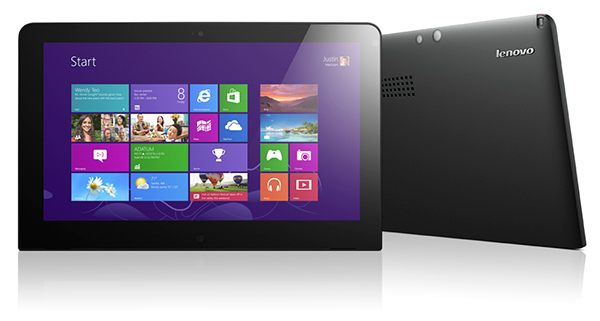

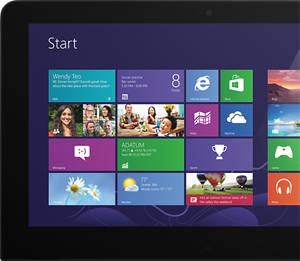

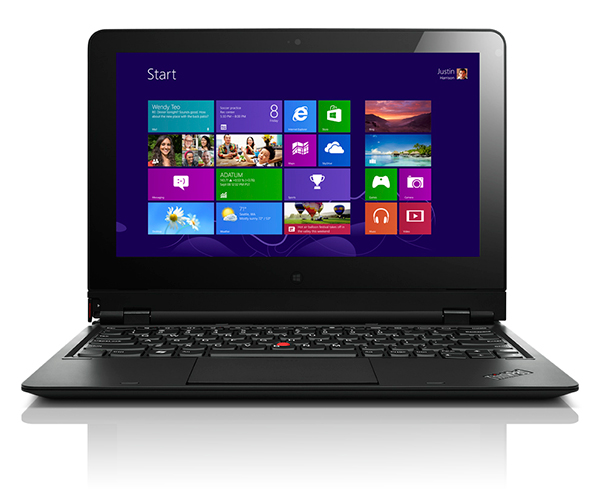

 Tablet With Interface |

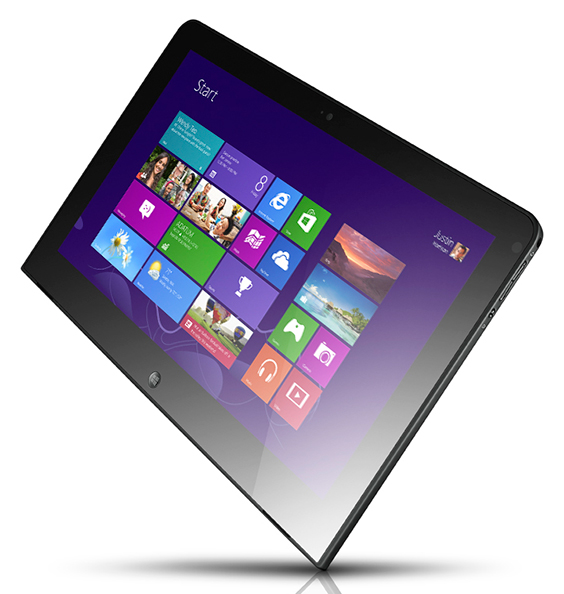

 Tablet Angle View |

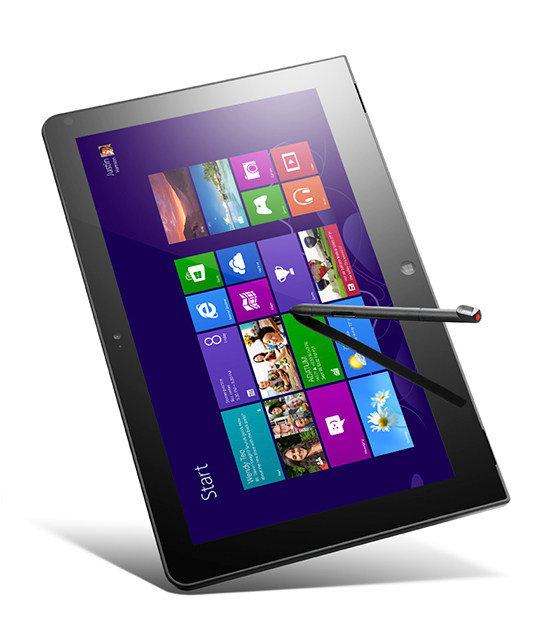

 Tablet With Pen View |

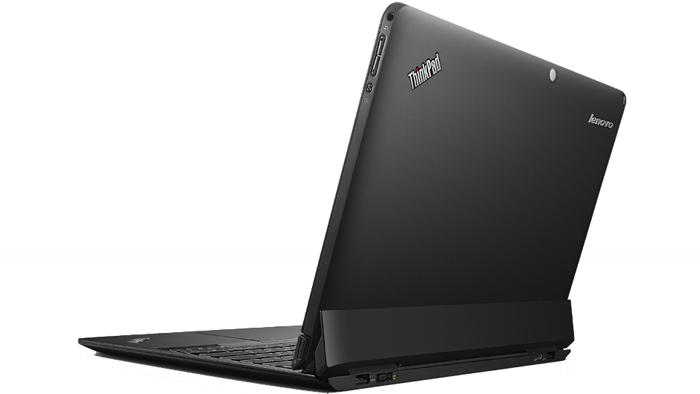

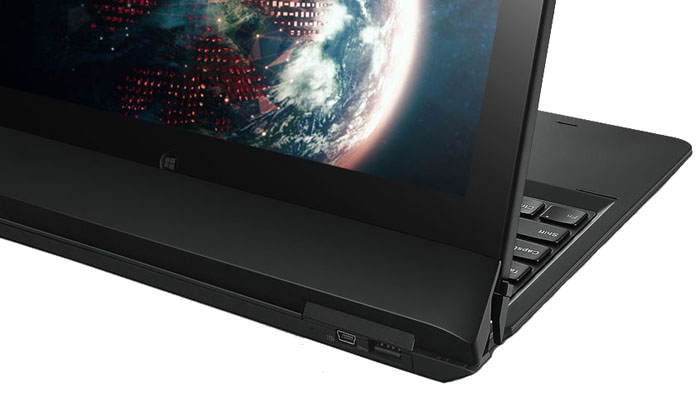

 Stand Rear View |

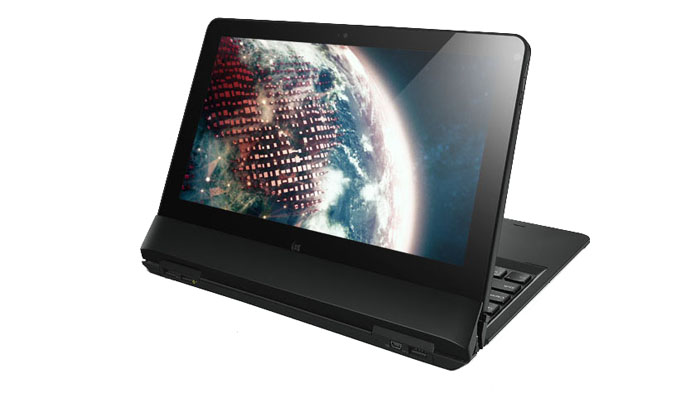

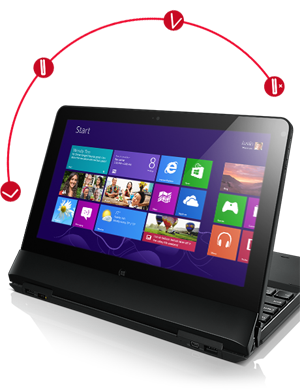

Stand Front View |

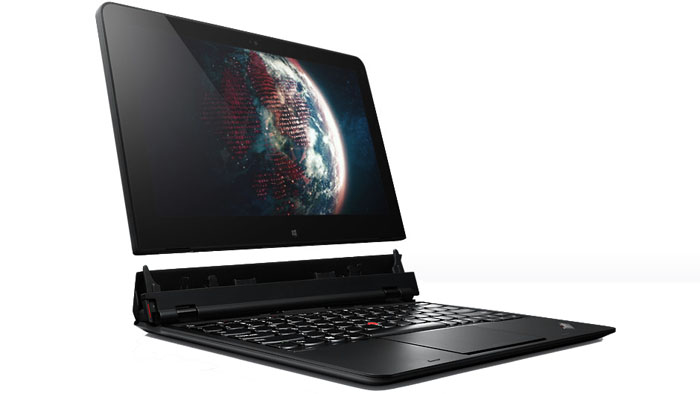

 Detached Keyboard |

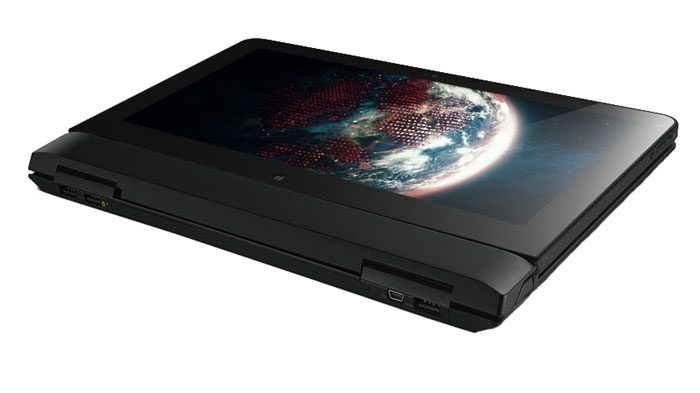

 Tablet Closed View With Keyboard |

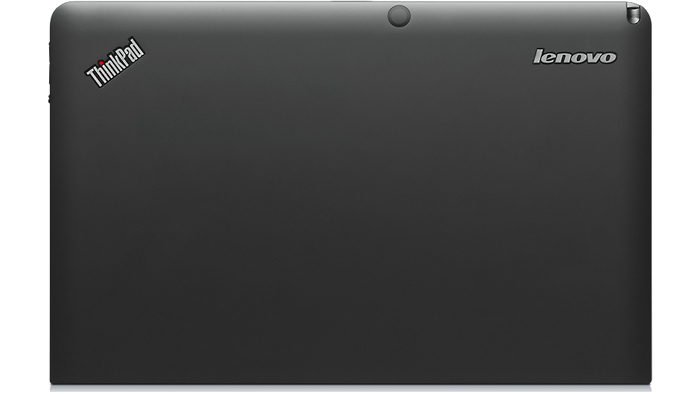

 Rear Tablet View |
 Rear View |

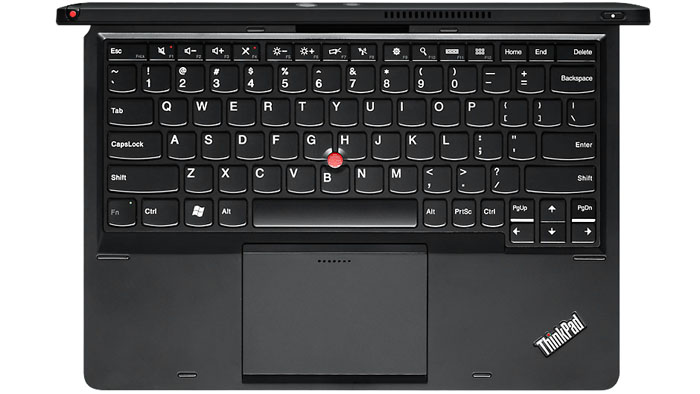

 Keyboard View |
 Ports Zoom View |

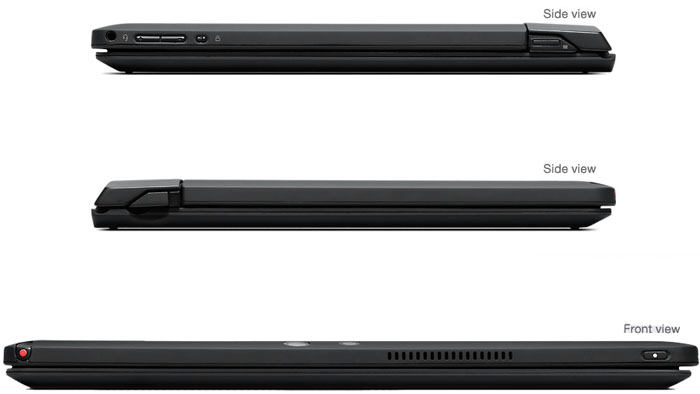

 Side Views with Keyboard |

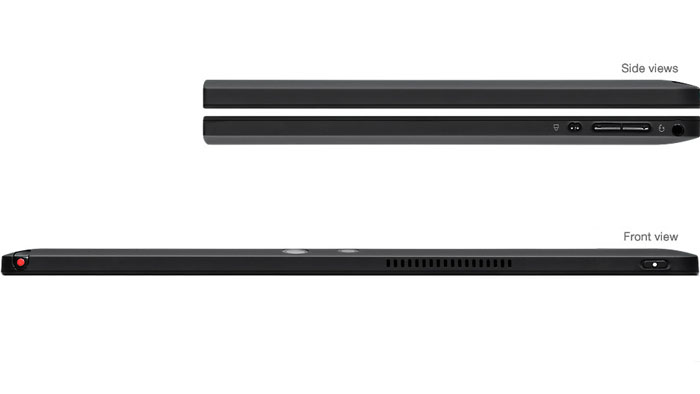

 Tablet Side Views |
Specifications:
| Lenovo Thinkpad Helix | |
|---|---|
| Performance | |
| Processor | 3rd generation Intel Core&trade i7-3667U (4M Cache, up to 3.20 GHz) 3rd generation Intel Core&trade i5-3427U (3M Cache, up to 2.80 GHz) |
| Operating System | Windows 8.1 Pro 64 Windows 8.1 64 |
| Graphics | Intel HD 4000 Graphics |
| Memory | Up to 8GB PC3-10600 DDR3L SDRAM 1333MHz SODIMM Memory (1 DIMM) |
| Webcam | 720p HD face-tracking technology, low light sensitive |
| Storage | 128GB SSD SATA3 180GB SSD SATA3 256GB SSD SATA3 |
| Battery / Battery Life | Tablet - 3-cell 42Whr (Up to 6 hours tablet only) Keyboard Dock - 4-cell 28Whr (Up to 10 hours in laptop or tablet+ mode) |
| Audio | Dolby Home Theater v4 |
| Navigation | 10-point multitouch ThinkPad Digitizer pen (optional) 5-button Clickpad |
| Design | |
| Display | 11.6" Full HD (1920 x 1080) IPS (400 NITS) |
| Dimensions (W X D X H) | Tablet - 11.7" x 7.3" x 0.5" Clamshell - 11.7" x 7.3" x 0.8" |
| Weight | Tablet - 1.8 lbs Clamshell - 3.8 lbs |
| Keyboard | Precision ThinkPad keyboard |
| Software | |
| Preloaded Applications (Availability and support vary by region) | AccuWeather Amazon Kindle Evernote Intel AppUp Microsoft Office Trial Rara (music) Skype™ |
| Lenovo Supported Tools | Lenovo Companion Lenovo Cloud Storage Lenovo QuickSnip Lenovo Quick Launch Lenovo Settings Lenovo Support |
| Connectivity | |
| Tablet Input/Output Ports | 1 MiniDisplayPort 1 USB 2.0 1 SIM card slot 3.5mm Combo Jack Headphone/MIC |
| Keyboard Dock Input/Output Ports | 1 MiniDisplayPort 2 USB 3.0 |
| WIFI | Intel Centrino Advanced-N 6205S (2x2 AGN) |
| Ethernet | With USB Dongle (Included - Lenovo.com models only) |
Services Offerings
Lenovo offers a comprehensive portfolio of award-winning services to support and protect your ThinkPad investment. Succeed with substance, and let Lenovo’s Service support you all the way.
- Priority Technical Support – Talk to advanced-level technicians, electronic incident tracking and escalation management services at anytime calling our 24x7 priority support center.
- Warranty Upgrades - Onsite and Next Business Day
- Maximize your PC’s uptime and productivity with this convenient and fast repair service, all done at your place of business.
- Warranty Extensions (1 to 4 Years Total Duration)
- Increase your PC’s durability, accurately budget its expenses and lower maintenance costs with this fixed-term, fixed-cost service.
- Accidental Damage Protection – Protect your PC from non-warranted operational or structural failures due to drops, minor spills or damage to the integrated screen.
- Keep Your Drive – Retain your drive and the valuable data in it when you need to service your PC.
- Asset Tagging - Systems come equipped with a professional, flexible asset tag based on your exact specification. PCs are easily identifiable and trackable right out of the box.
- Sealed Battery Warranty Extension - Sealed battery replacement requires servicing by a trained technician. Protect yourself from the cost of unexpected battery replacement with a sealed battery warranty extention and combine with onsite to save the system unavailability
Documentation:
Download the Lenovo ThinkPad Helix Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
- Intel Core M5Y70 1.8GHz, 8GB Ram, 256GB SSD, 11.6” FHD Touchscreen, Front/Rear Cam, BT, WiFi, Digitizer/Pen, Win 8 Pro 64, 3 Year Depot
