Lenovo ThinkServer RD350 Rack Server
Feature-Rich. Built-In Value

Lenovo ThinkServer RD350 Rack Server

Lenovo Products
Lenovo ThinkServer RD350
Lenovo ThinkServer RD350 1U Rack Server - 4x3.5” Hot-swap
#70D60025UX
Get a Quote!
Lenovo ThinkServer RD350 1U Rack Server - 4x3.5” Hot-swap
#70D60026UX
Get a Quote!

Click here to jump to more pricing!

Overview:

A highly efficient, 1U rack server loaded with built-in features at a great price.

  • High-performance Processing
  • Next-gen Design 1U Rack Server
  • Increase in Memory Capacity with DDR4 Memory
  • New Intuitive Management Tools

Lenovo ThinkServer RD350 is a value two socket 1U rack server for Web hosting, Collaboration, and HPC. Lenovo ThinkServer RD550 offer the boost performance with more cores, more memory, more I/O bandwidth. It's ideal for SMB who need to host compute-intense web applications, and provides a entry price point combined with internal great expandability. Lenovo's 5th generation servers offer a complete portfolio of systems management tools increases uptime and productivity while keeping costs low. Enhanced hardware monitoring, alerts and diagnostics combined with integrated provisioning and deployment tools greatly improves the management efficiency in datacenters.

Features:

Lenovo ThinkServer RD350 OpenBalanced Performance

The Lenovo ThinkServer RD350 is loaded with the features you need and nothing you don’t – all in a slim, 1U design. Up to two Intel Xeon E5-2600 v3 Series processors give you outstanding performance so your employees can be productive. With reliability features such as hot-swap hard drives, embedded RAID and hot-swap and redundant power, you get peace of mind that your data will stay safe and your system will stay up and running. This enterprise-class server has just the right amount of computing power for your infrastructure, collaboration and line-of-business applications.

Built-in Value

When you think of value in the server space, you expect a rich set of features for a great price. That's what you get with the ThinkServer RD350. The latest Intel Xeon processors, along with next-gen DDR4 memory, provide performance advantages over the previous generations. With DDR4, you get up to a 50-percent boost in performance, and can see up to 50-percent power savings over previous-generation memory. You'll also find generous storage capacity with support for up to eight hot-swap hard drives. Enjoy enterprise-quality performance with the right built-in features in a scalable, 1U power-efficient solution – at a budget-friendly price.

New Management Tools

Gain access to a suite of new, intuitive management tools enabling you to get the most from your ThinkServer systems throughout their lifecycle. Completely redesigned for next-generation ThinkServer systems, these tools help you increase productivity and reduce operational cost and overall total cost of ownership. You will find tools for configuration and deployment, energy management and power planning. With the RD350, Partner Packs for Microsoft and VMware are also available so you can use your existing management tools or try ours – many at no additional cost.

Views:

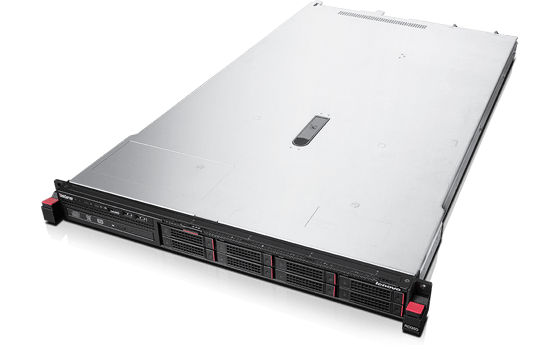

Lenovo ThinkServer RD350 (Click to enlarge)

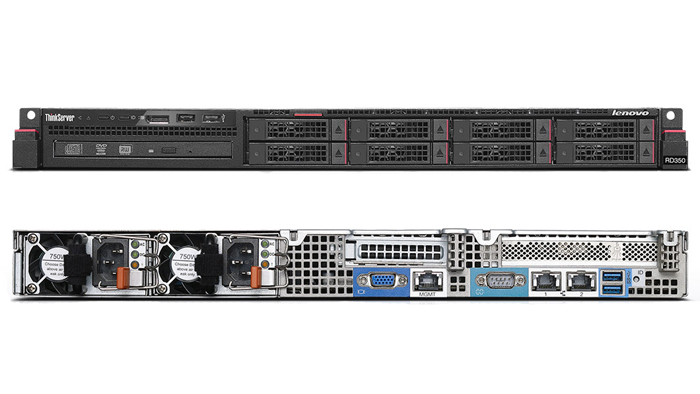

2.5" Drive Front and Rear View
2.5" Drive Front and Rear View

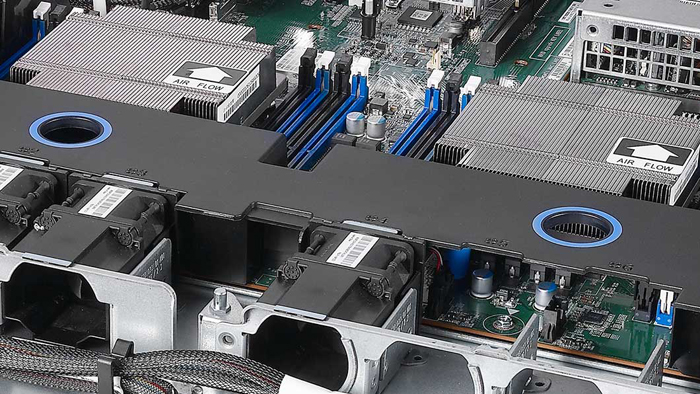

2.5" Drive Open Detail View
2.5" Drive Open Detail View

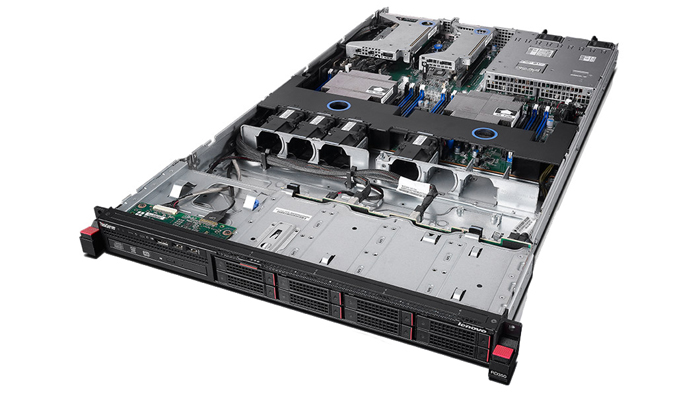

2.5" Drive Open Inside View
2.5" Drive Open Inside View
3.5" Drive Front and Rear View
3.5" Drive Front and Rear View

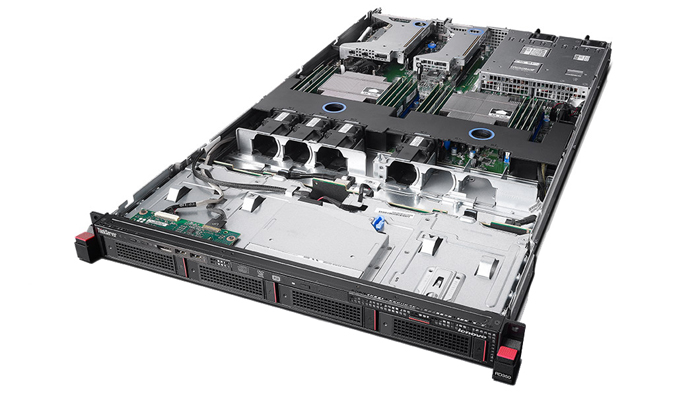

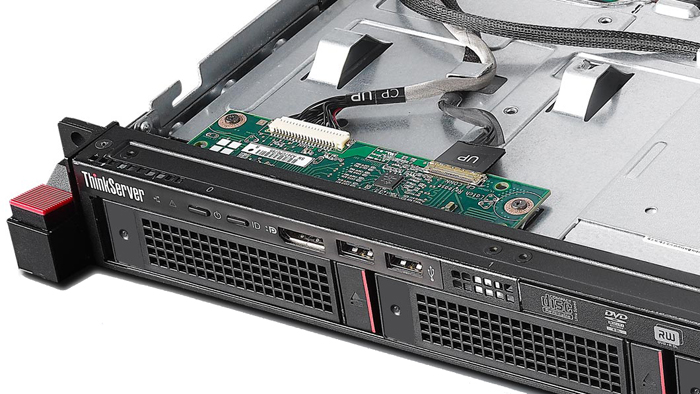

3.5" Drive Open Detail View
3.5" Drive Open Detail View
3.5" Drive Open Inside View
3.5" Drive Open Inside View


Specifications:


Lenovo ThinkServer RD350
Performance
Processor Up to two 12-core Intel Xeon E5-2600 v3 Series
Operating System Supported Microsoft Windows Server 2012 R2 (Including Hyper-V),
Microsoft Windows Server 2012 (Including Hyper-V),
Microsoft Windows Server 2008 R2 SP1 (Including Hyper-V),
SUSE Linux Enterprise Server,
Red Hat Enterprise Linux Server,
VMware vSphere ESXi
Memory Up to 512 Gb DDR4 – 2133 MT/s via 16 slots (RDIMM/LRDIMM)
Maximum Internal Storage Up to 24 TB 3.5" chassis or up to 14.4 TB 2.5" chassis
Raid Support ThinkServer RAID 110i (0/1/10, optional 5)
ThinkServer RAID 500 (0/1/10, optional 5/50)
ThinkServer RAID 710 (0/1/10/5/50/6/60)
Power Supply Redundant hot-swap
450W (80 PLUS Gold) 550W/750W (80 PLUS Platinum), 110V to 240V AC input
750W (80 PLUS Titanium), 200V to 240V AC input
Systems Management ThinkServer System Manager
Optional ThinkServer System Manager Premium
Design
Form Factor/Height 1U Rack Server
Media Bays 1 x slim optical
Disk Bays Up to 4 x 3.5" or up to 8 x 2.5"
Cooling 4 Redundant fans with 1 processor or 6 redundant fans with 2 processors
Dimensions (W X D X H) 19.0” x 1.7” x 31.6” (482 mm x 43 mm x 803 mm)
Weight Starting at 13.0 kg (28.7 lbs)
Connectivity
Network Interface 2 x Integrated Gb Ethernet
1 x Integrated Gb Ethernet (Dedicated to ThinkServer System Manager)
Expansion Slots 1 CPU: 1 x PCIe Gen3: HL/FH: x16
2 CPUs: 1 x PCIe Gen3: HL/FH: x16
1 x PCIe Gen3: LP x16

*Tech specs may not reflect currently available options for all models due to variability in supply.

Services Offerings

Choose among a comprehensive portfolio of services optimized to support and protect your ThinkServer investment. Specify response time, duration, and optional features to meet your business needs and your budget.

  • Priority Technical Support
    Provides 24 x 7 direct access to advanced-level technicians.
  • Extended Warranties
    Offer fixed-term, fixed-cost protection to help you budget for server expenses for up to five years, to help lower TCO.
  • Upgraded Warranties
    Maximize uptime and productivity with convenient, same-day repair service at your place of business.

Documentation:

Download the Lenovo ThinkServer RD350 Datasheet (PDF).
