Lenovo ThinkServer RD450 Rack Server
More of What You Need. No Hassle.

Features:

More Performance

The Lenovo ThinkServer RD450 boasts up to two of the latest Intel Xeon E5-2600 v3 Series processors. With up to 512GB of memory via 16 slots, there is a tremendous increase in capacity over the previous generation. Because the RD450 uses next-gen DDR4 memory, you get up to a 50-percent boost in performance and up to a 50-percent increase in power savings — enabling your applications to run faster and more efficiently. These improvements, coupled with the RD450's highly flexible design, make it perfect for your infrastructure, collaboration and line-of-business applications, as well as web-serving or hosting.

More Storage

The Lenovo ThinkServer RD450 is a dual-socket, 2U server that offers flexible configuration options to create the right system for your needs. If you're a small- to medium-sized business, this server is ideal because of its large, cost-effective storage capacity. Dual SD card options are also available for hypervisor booting. The ThinkServer RD450 2.5-inch configuration leverages the Lenovo AnyRAID design, allowing the use of your choice of RAID adapter without taking up a PCIe slot. For more protection and performance, upgrade your ThinkServer RAID adapter for additional RAID levels and flash-backed cache.

Less to Manage

A key feature of the RD450 and all ThinkServer systems is its use of open industry standards and protocols, so it integrates seamlessly into your multi-vendor environment. That means you can use your existing management tools with the RD450 or feel free to try ours – many at no additional charge. The RD450 offers a suite of intuitive lifecycle tools that make management easy, so you can focus on IT projects that drive your business. These new tools include configuration, deployment and power-planning tools, as well as a tool for energy management.

Views:

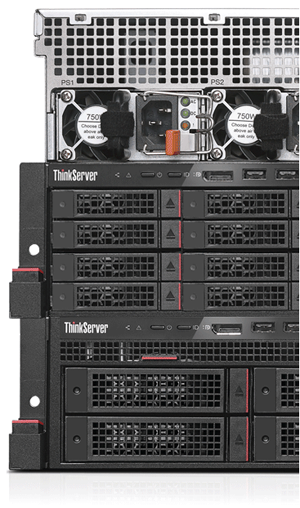

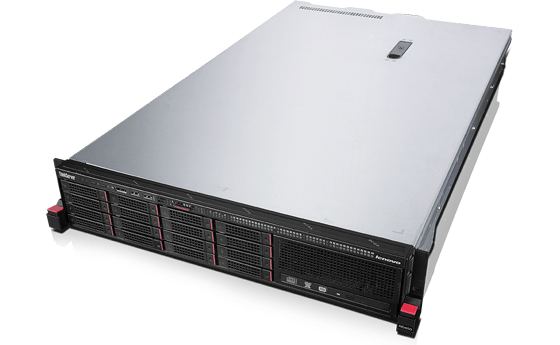

Lenovo ThinkServer RD450 (Click to enlarge)

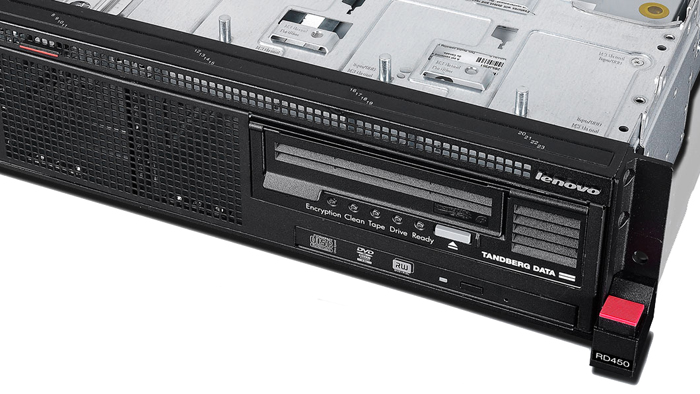

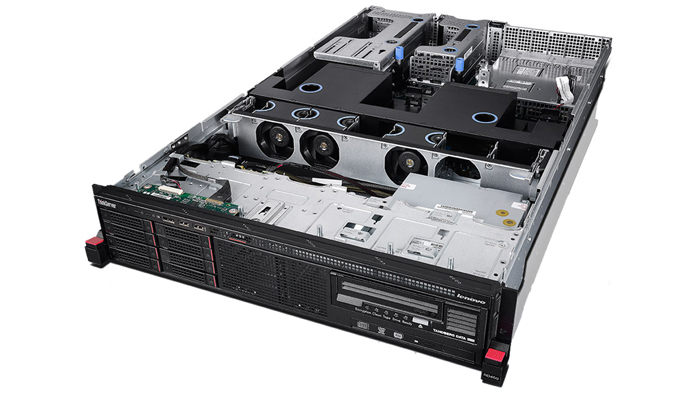

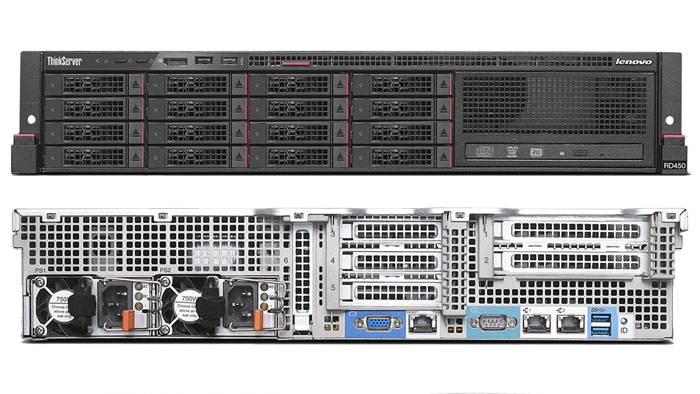

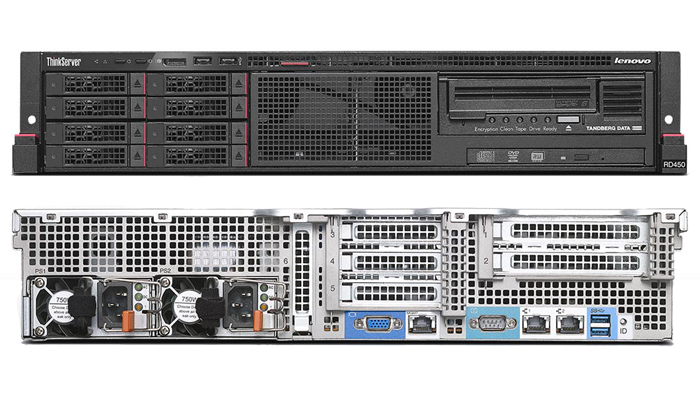

2.5" 8-Bay Front and Rear View	2.5" 8-Bay Open Detail View	2.5" 8-Bay Open Inside View	2.5" 16-Bay Front and Rear View

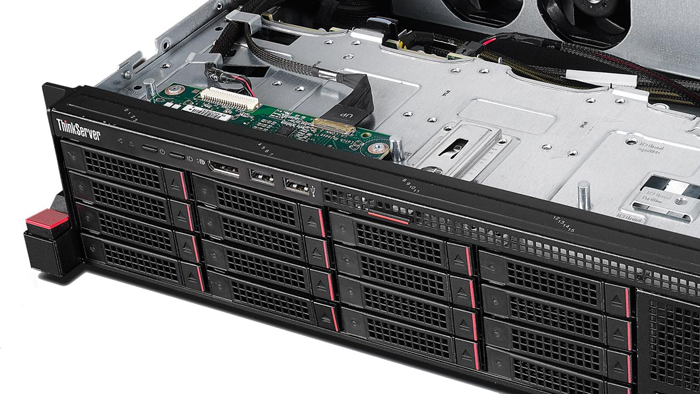

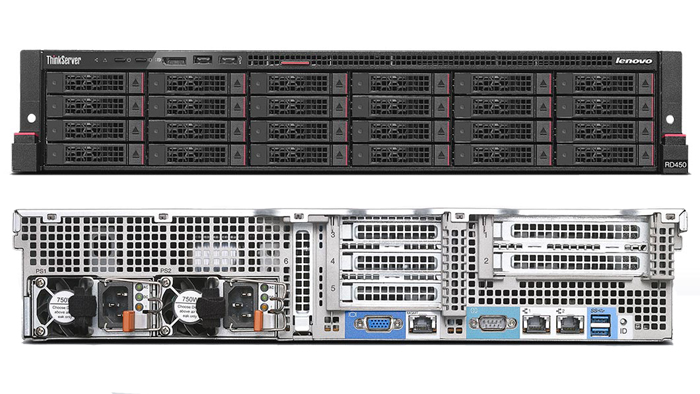

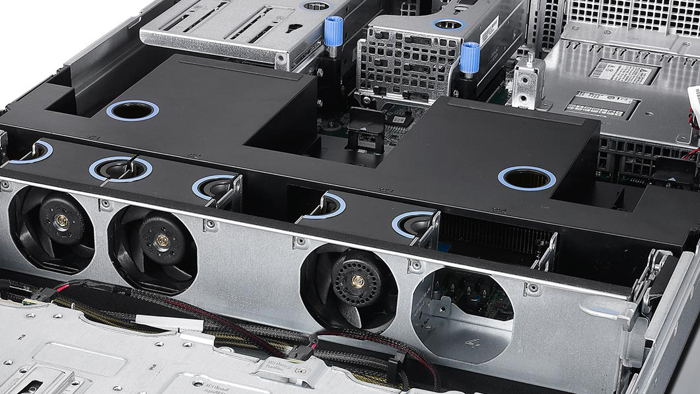

2.5" 16-Bay Open Detail View	2.5" 16-Bay Open Inside View	2.5" 24-Bay Front and Rear View	2.5" 24-Bay Open Detail View

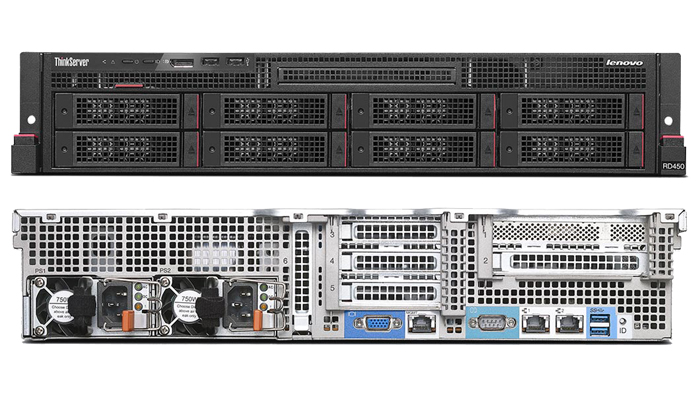

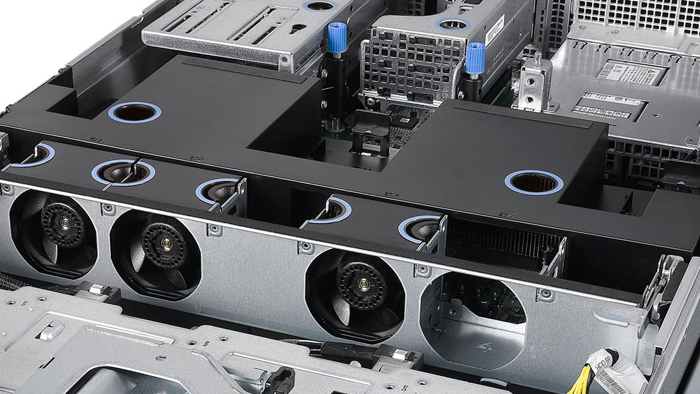

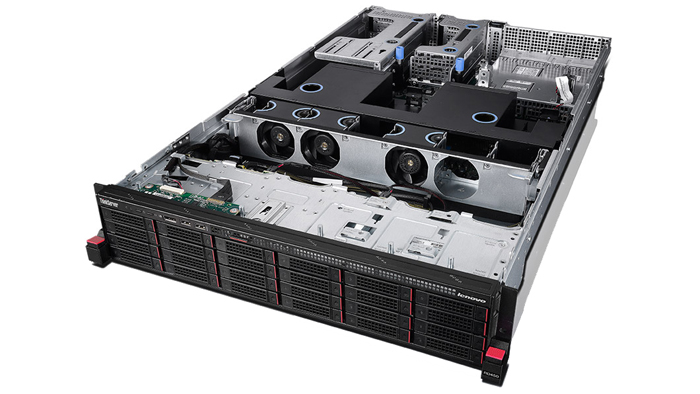

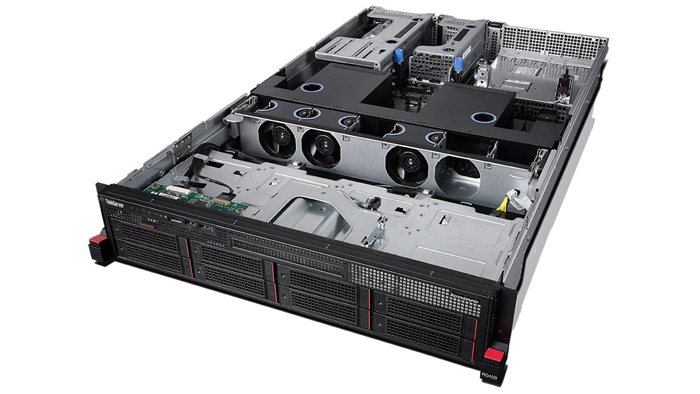

2.5" 24-Bay Open Inside View	3.5" 8-Bay Front and Rear View	3.5" 8-Bay Open Detai View	3.5" 8-Bay Open Inside View

Specifications:

Lenovo ThinkServer RD450
Performance
Processor	Up to two 12-core Intel Xeon E5-2600 v3 Series
Operating System Supported	Microsoft Windows Server 2012 R2 (Including Hyper-V), Microsoft Windows Server 2012 (Including Hyper-V), Microsoft Windows Server 2008 R2 SP1 (Including Hyper-V), SUSE Linux Enterprise Server, Red Hat Enterprise Linux Server, VMware vSphere ESXi
Memory	Up to 512 Gb DDR4 – 2133 MT/s via 16 slots (RDIMM/LRDIMM)
Maximum Internal Storage	Up to 48 TB 3.5" chassis or up to 43.2 TB 2.5" chassis
Raid Support	ThinkServer RAID 110i AnyRAID (0/1/10, optional 5) ThinkServer RAID RD450 510i AnyRAID (0/1/10, optional 5) ThinkServer RAID RD450 720i AnyRAID (0/1/10/5/50/6/60) ThinkServer RAID RD450 720ix AnyRAID (0/1/10/5/50/6/60) ThinkServer RAID 110i (0/1/10, optional 5) ThinkServer RAID 500 (0/1/10, optional 5/50) ThinkServer RAID 710 (0/1/10/5/50/6/60)
Power Supply	2 Redundant hot-swap 450W (80 PLUS Gold), 550W/750W/1100W (80 PLUS Platinum), 110V to 240V AC input 750W (80 PLUS Titanium), 200V to 240V AC input
Systems Management	ThinkServer System Manager Optional ThinkServer System Manager Premium
Design
Form Factor/Height	2U Rack Server
Media Bays	1 x slim optical (except 24 x 2.5" configuration)
Disk Bays	Up to 8 x 3.5" or up to 24 x 2.5"
Cooling	3 Redundant fans with 1 processor or 4 redundant fans with 2 processors
Dimensions (W X D X H)	19.0" x 3.4" x 30.8" (482 mm x 87 mm x 783 mm)
Weight	Starting at 16.0 kg (35.3 lbs)
Connectivity
Network Interface	2 x Integrated Gb Ethernet 1 x Integrated Gb Ethernet (Dedicated to ThinkServer System Manager)
Expansion Slots	1 CPU: 2 x PCIe Gen 3: HL/FH x8 2 CPUs: 1 x PCIe Gen 3: LP x16 2 x PCIe Gen3: HL/FH x8 3 x PCIe Gen3: LP x8

*Tech specs may not reflect currently available options for all models due to variability in supply.

Services Offerings

Choose among a comprehensive portfolio of services optimized to support and protect your ThinkServer investment. Specify response time, duration, and optional features to meet your business needs and your budget.

• Priority Technical Support
  Provides 24 x 7 direct access to advanced-level technicians.
• Extended Warranties
  Offer fixed-term, fixed-cost protection to help you budget for server expenses for up to five years, to help lower TCO.
• Upgraded Warranties
  Maximize uptime and productivity with convenient, same-day repair service at your place of business.

Documentation:

Download the Lenovo ThinkServer RD450 Datasheet (PDF).
