Lenovo ThinkServer RD550 Rack Server
Extra-Versatile, Reliable

Features:

Extremely Versatile Storage

Innovation is built in to the ThinkServer RD550. A cleverly engineered design allows more storage density and I/O connectivity than ever before—giving you the performance and capacity of a 2U system in a 1U form factor. By creating smaller drive trays and a slightly larger chassis within the same 1U space, the RD550 offers a total of up to 12 bays, which can be used for data storage or better performance. Two additional enterprise-class M.2 solid-state drives (SSDs) are available as an option for secure booting, as well as SD card options for hypervisor booting. Plus, for ultimate performance, the industry-unique Lenovo AnyBay design allows multiple storage types in the same drive bay, including front-accessible PCIe SSD.

Highly Flexible I/O

In the past, 1U servers were constrained by their size and did not have as many I/O slots as larger servers. With the new RD550, networking configurations that traditionally required a larger server can now fit into a 1U form factor. Leveraging the unique Lenovo AnyFabric design, the RD550 can house up to eight 10Gb Ethernet ports—without taking up any of the available PCIe slots. If you include network adapters in the available slots, the RD550 can support an incredible amount of network bandwidth in a single 1U server. There’s even an option for four 10Gb Ethernet ports with two 16Gb Fibre Channel ports at the same time, without using any of the PCIe slots—an industry first.

Extra-Reliable Performance

Data center cooling costs can be greater than the cost of powering the IT equipment itself. One way to reduce these cooling costs is by operating the data center at a higher temperature. With a dynamic environmental design, the RD550 can run continuously at 45 degrees Celsius—with no impact on reliability. In fact, the system has been carefully architected and tested to support long-term reliability. The RD550 is also perfect for organizations that install servers in less strictly controlled environments. Other high-reliability features include error correcting code (ECC) memory, hot-swap hard-disk drive and SSD capability, and hot-swap and redundant power and cooling.

Views:

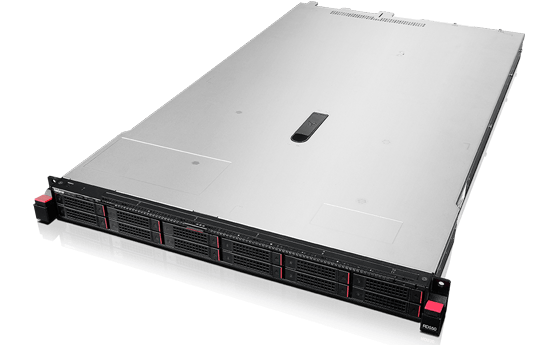

Lenovo ThinkServer RD550 (Click to enlarge)

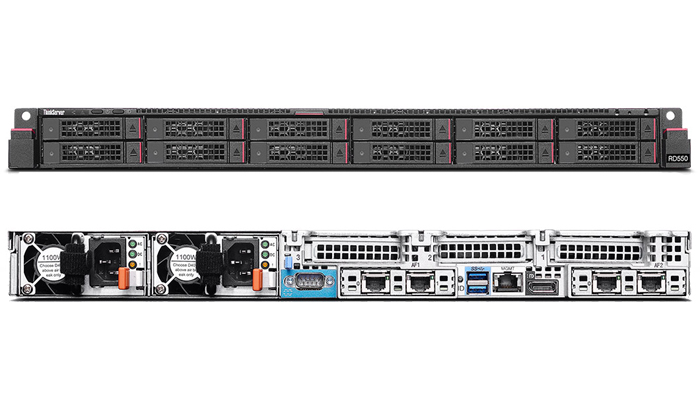

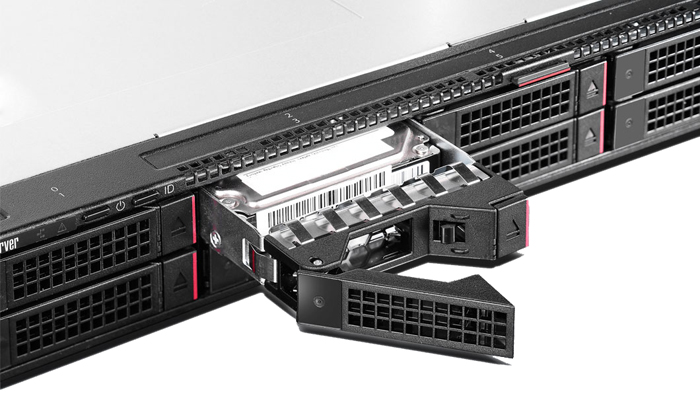

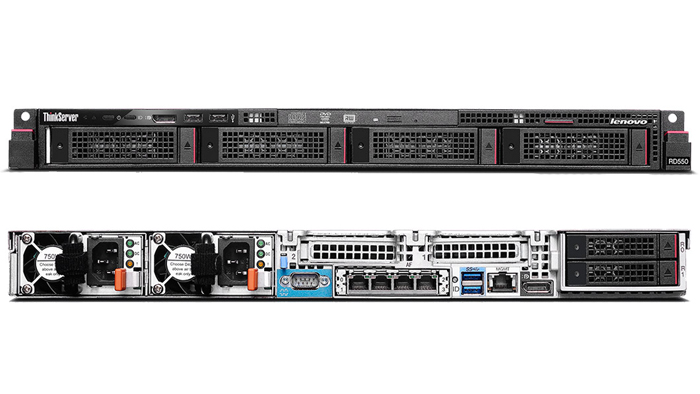

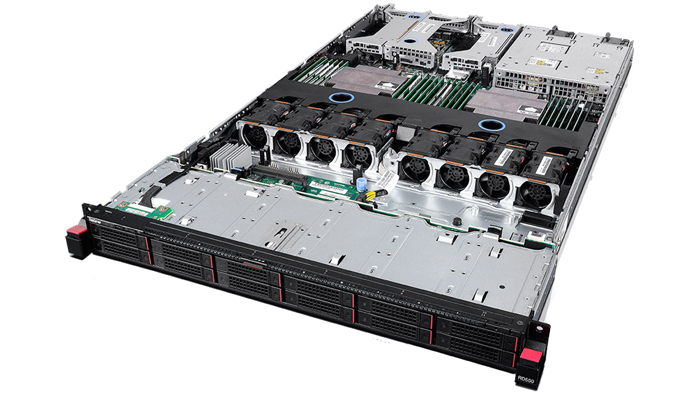

2.5" Drive Front and Rear View	2.5" Drive Pullout View	2.5" Drive Open Inside View	3.5" Drive Front and Rear View

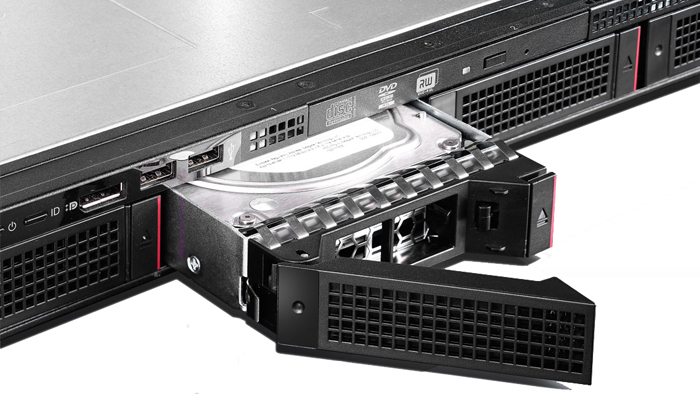

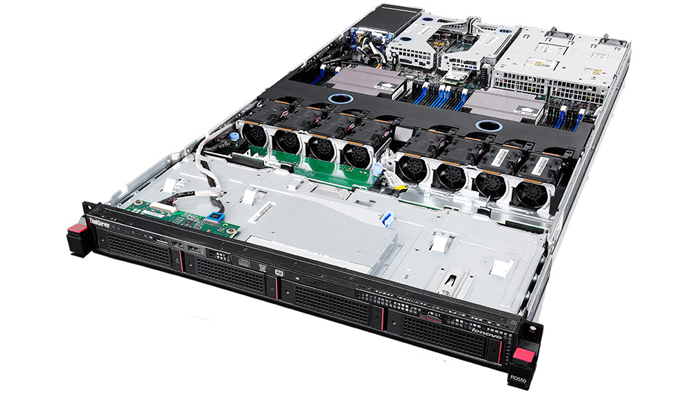

3.5" Drive Pullout View	3.5" Drive Open Inside View

Specifications:

Lenovo ThinkServer RD550
Performance
Processor	Up to two 18-core Intel Xeon E5-2600 v3 Series
Operating System Supported	Microsoft Windows Server 2012 R2 (Including Hyper-V), Microsoft Windows Server 2012 (Including Hyper-V), Microsoft Windows Server 2008 R2 SP1 (Including Hyper-V), SUSE Linux Enterprise Server, Red Hat Enterprise Linux Server, VMware vSphere ESXi
Memory	Up to 768 GB DDR4 - 2133 MT/s via 24 slots (RDIMM/LRDIMM)
Maximum Internal Storage	Up to 26.4 TB 3.5" chassis or up to 14.4 TB 2.5" chassis M.2 SSD and SD card options available
Raid Support	ThinkServer RAID 110i AnyRAID (0/1/10, optional 5) ThinkServer RAID 510i AnyRAID Adapter (0/1/10, optional 5) ThinkServer RAID 720i AnyRAID Adapter (0/1/10/5/50/6/60) ThinkServer RAID 720ix AnyRAID Adapter (0/1/10/5/50/6/60)
Power Supply	Redundant hot-swap 550W/750W/1100W (80 PLUS Platinum), 110V to 240V AC input 750W (80 PLUS Titanium), 200V to 240V AC input
Systems Management	ThinkServer System Manager Optional ThinkServer System Manager Premium
Design
Form Factor/Height	1U Rack Server
Media Bays	1 x slim optical (in 3.5" configuration)
Disk Bays	Up to 4 x 3.5" front + up to 2 x 2.5" rear or up to 12 x 2.5" front
Cooling	6 Redundant hot-swap fans with 1 processor 8 redundant hot-swap fans with 2 processors
Dimensions (W X D X H)	19.0" x 1.7" x 31.6" (482 mm x 43 mm x 803 mm)
Weight	Starting at 13.50 kg (29.76 lbs)
Connectivity
Network Interface	1 x Integrated Gb Ethernet (Dedicated management port) Up to 2 x AnyFabric slots with choice of Ethernet NIC, Fibre Channel HBA or CNA
Expansion Slots 3.5" chassis	2 x PCIe Gen3: LP x16
Expansion Slots 2.5" chassis	1x PCIe Gen3: LP x 16 2x PCIe Gen3: LP x 16 (x8 electrical)

*Tech specs may not reflect currently available options for all models due to variability in supply.

Services Offerings

Choose among a comprehensive portfolio of services optimized to support and protect your ThinkServer investment. Specify response time, duration, and optional features to meet your business needs and your budget.

• Priority Technical Support
  Provides 24 x 7 direct access to advanced-level technicians.
• Extended Warranties
  Offer fixed-term, fixed-cost protection to help you budget for server expenses for up to five years, to help lower TCO.
• Upgraded Warranties
  Maximize uptime and productivity with convenient, same-day repair service at your place of business.

Documentation:

Download the Lenovo ThinkServer RD550 Datasheet (PDF).
