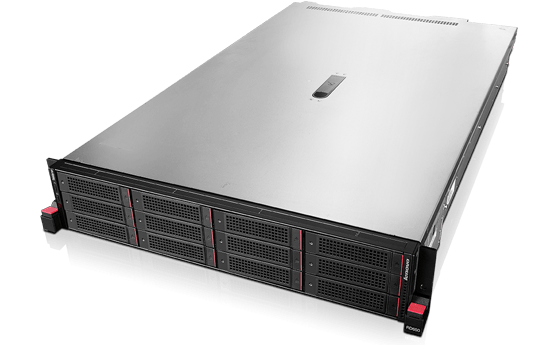

Lenovo ThinkServer RD650 Rack Server
Storage-Dense. Flexible Design.

Features:

Outstanding Storage Density

Tremendous internal storage capacity and more I/O connectivity than ever before is the result of an innovative design on the new ThinkServer RD650. With up to 26 drive bays and 74.4TB of internal storage capacity, the RD650 is great for storage-hungry applications such as databases, data analytics clusters, and video streaming. Two additional enterprise-class M.2 solid-state drives (SSDs) are available as an option for secure booting, as well as SD card options for hypervisor booting. Up to eight PCIe slots give you plenty of bandwidth to scale your I/O. Plus, for ultimate performance, the industry-unique Lenovo AnyBay design allows multiple storage types in the same drive bay, including front-accessible PCIe SSD.

Highly Flexible Design

The latest Intel Xeon processors, large memory capacity, and loads of storage, combined with multiple chassis types, RAID choices, and I/O options, make it easy to create the perfect RD650 configuration to run your business-critical applications. In addition to the standard 3.5- and 2.5-inch chassis, the RD650 offers a unique hybrid option with nine 3.5-inch and six 2.5- inch drive bays in the front and two 2.5-inch drive bays in the back—great for creating a tiered storage environment. Leveraging the new Lenovo AnyFabric and AnyRAID designs, the RD650 can house up to four 10Gb Ethernet ports and your choice of RAID adapter without taking up any of the available PCIe slots.

Extra-Reliable Performance

Data center cooling costs can be greater than the cost of powering the IT equipment itself. One way to reduce these cooling costs is by operating the data center at a higher temperature. With a dynamic environmental design, the RD650 can run continuously at 45 degrees Celsius—with no impact on reliability. In fact, the system has been carefully architected and tested to support long-term reliability. The RD650 is also perfect for organizations that install servers in less strictly controlled environments. Other high-reliability features include error correcting code (ECC) memory, hot-swap hard-disk drive and SSD capability, and hot-swap and redundant power and cooling.

*Based on 6TB drives coming soon

Views:

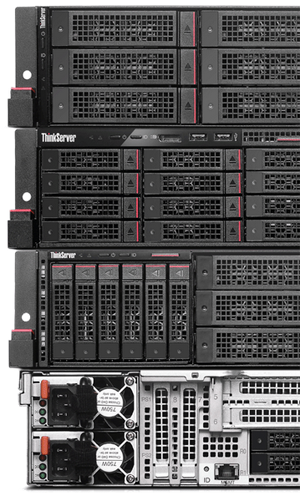

Lenovo ThinkServer RD650 (Click to enlarge)

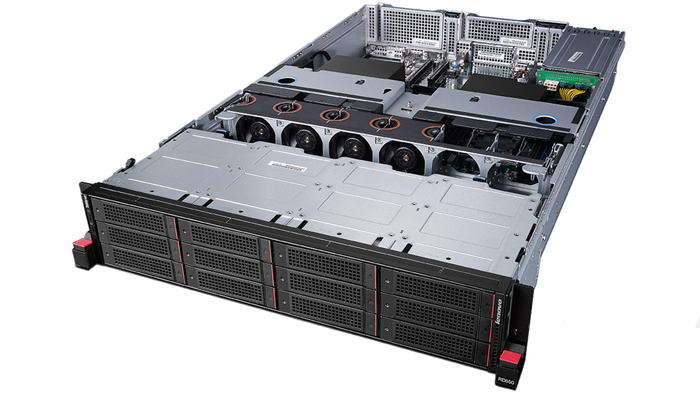

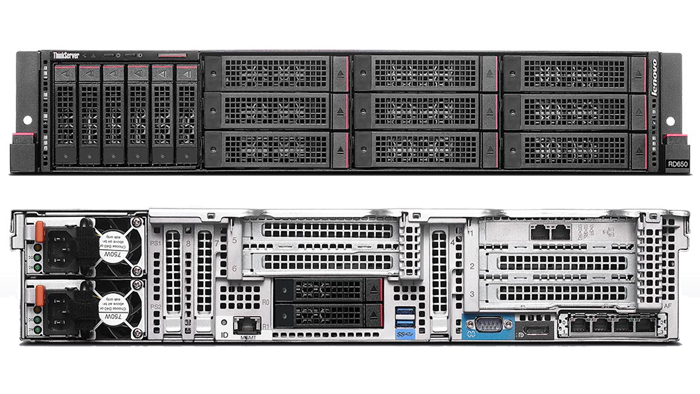

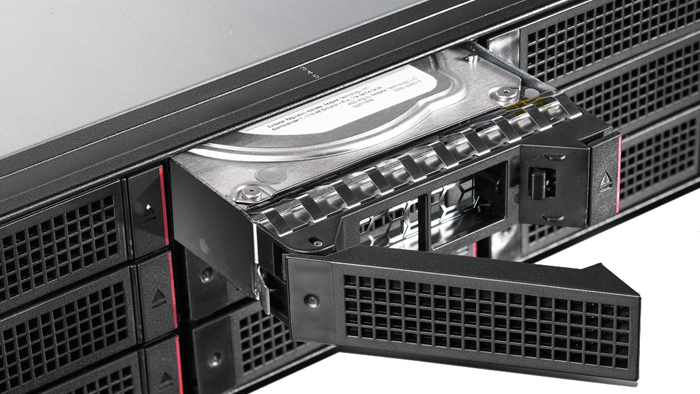

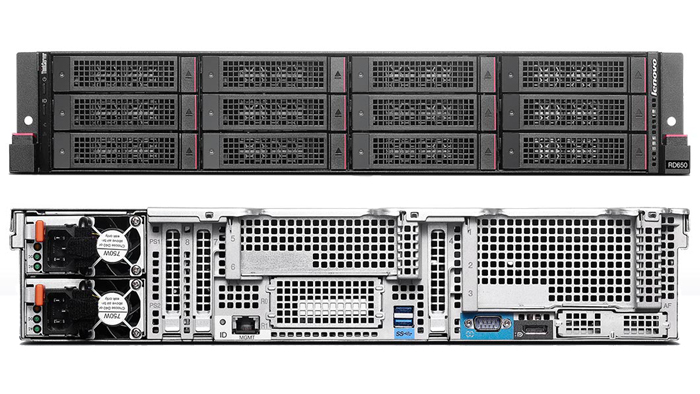

3.5" 12-Bay Front and Rear View	3.5" 12-Bay Open Detai View	3.5" 12-Bay Open Inside View	2.5" 6-Bay/3.5" 9-Bay Front and Rear View

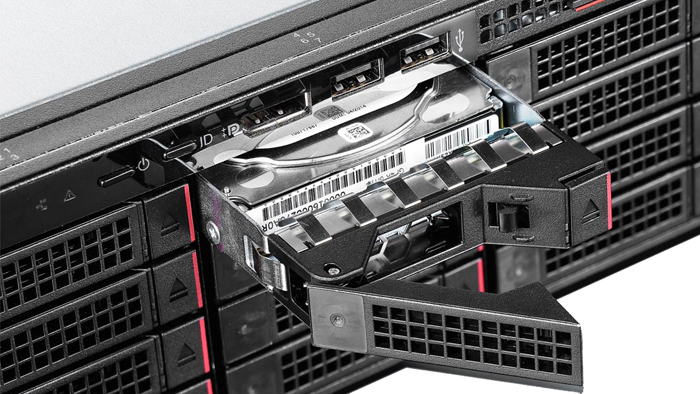

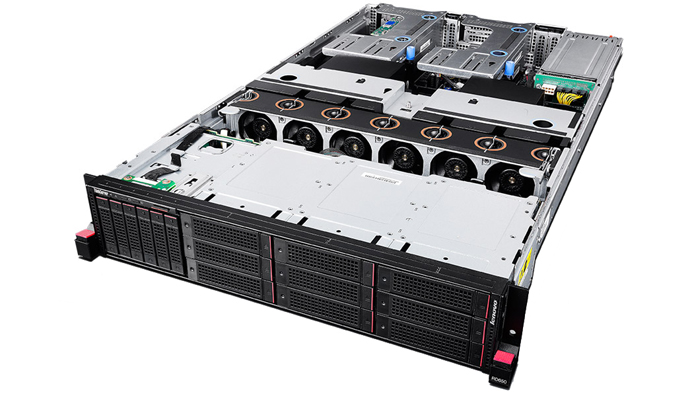

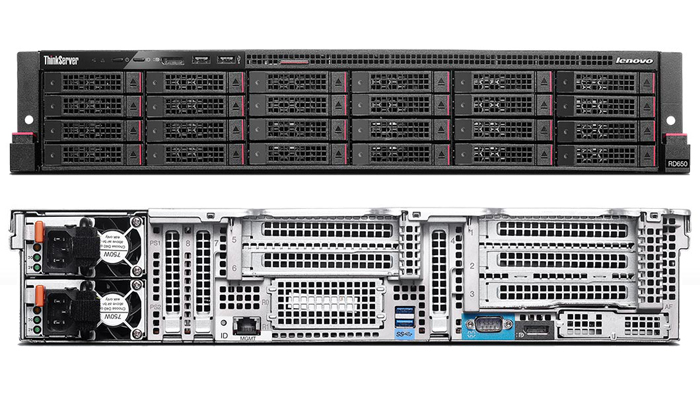

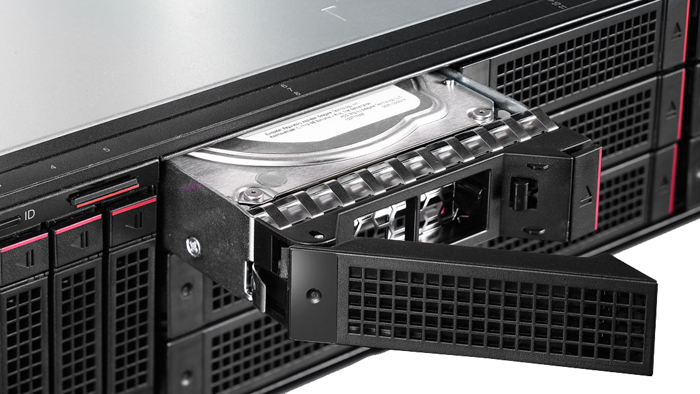

2.5" 6-Bay/3.5" 9-Bay Open Detail View	2.5" 6-Bay/3.5" 9-Bay Open Inside View	2.5" 24-Bay Front and Rear View	2.5" 24-Bay Open Detail View

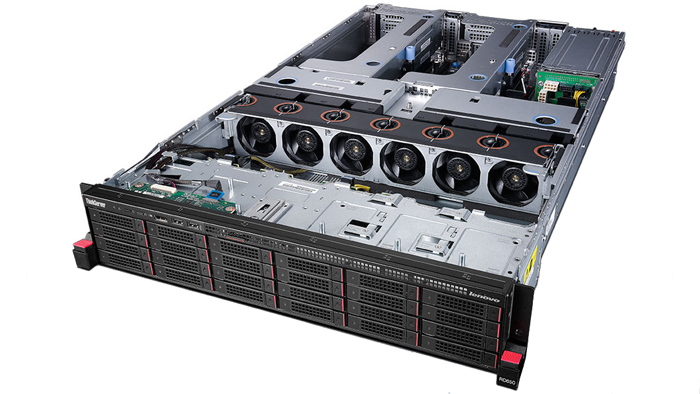

2.5" 24-Bay Open Inside View

Specifications:

Lenovo ThinkServer RD650
Performance
Processor	Up to two 18-core Intel Xeon E5-2600 v3 Series
Operating System Supported	Microsoft Windows Server 2012 R2 (Including Hyper-V), Microsoft Windows Server 2012 (Including Hyper-V), Microsoft Windows Server 2008 R2 SP1 (Including Hyper-V), SUSE Linux Enterprise Server, Red Hat Enterprise Linux Server, VMware vSphere ESXi
Memory	Up to 768 GB DDR4 - 2133 MT/s via 24 slots (RDIMM/LRDIMM)
Maximum Internal Storage	Up to 74 TB 3.5" chassis or up to 30.8 TB 2.5" chassis or up to 63.2 TB hybrid chassis; M.2 SSD and SD card options available
Raid Support	ThinkServer RAID 110i AnyRAID (0/1/10, optional 5) ThinkServer RAID 510i AnyRAID Adapter (0/1/10, optional 5) ThinkServer RAID 720i AnyRAID Adapter (0/1/10/5/50/6/60) ThinkServer RAID 720ix AnyRAID Adapter (0/1/10/5/50/6/60)
Power Supply	Redundant hot-swap 550W/750W/1100W (80 PLUS Platinum), 110V to 240V AC input 750W (80 PLUS Titanium), 200V to 240V AC input 1600W (80 PLUS Platinum), 200V to 240V AC input
Systems Management	ThinkServer System Manager Optional ThinkServer System Manager Premium
Design
Form Factor/Height	2U Rack Server
Media Bays	1 x slim optical (in select 2.5" chassis configurations)
Disk Bays	Up to 12 x 3.5" front + up to 2 x 2.5" rear or up to 24 x 2.5" front + up to 2 x 2.5" rear or up to 9 x 3.5" front + up to 6 x 2.5" front + up to 2 x 2.5" rear
Cooling	4 Redundant hot-swap fans with 1 processor or 6 redundant hot-swap fans with 2 processors
Dimensions (W X D X H)	19.0" x 3.4" x 30.1" (482 mm x 87 mm x 764 mm)
Weight	Starting at 16.0 kg (35.3 lbs)
Connectivity
Network Interface	1 x Integrated Gb Ethernet (Dedicated management port) 1 x AnyFabric slot with choice of Ethernet NIC, Fibre Channel HBA or CNA
Expansion Slots	All chassis up to - 3 x PCIe Gen3: LP x8, 4 x PCIe Gen3: FLFH x8, 1 x PCIe Gen3: HLFH x8

*Tech specs may not reflect currently available options for all models due to variability in supply.

Services Offerings

Choose among a comprehensive portfolio of services optimized to support and protect your ThinkServer investment. Specify response time, duration, and optional features to meet your business needs and your budget.

• Priority Technical Support
  Provides 24 x 7 direct access to advanced-level technicians.
• Extended Warranties
  Offer fixed-term, fixed-cost protection to help you budget for server expenses for up to five years, to help lower TCO.
• Upgraded Warranties
  Maximize uptime and productivity with convenient, same-day repair service at your place of business.

Documentation:

Download the Lenovo ThinkServer RD650 Datasheet (PDF).
