Lenovo ThinkServer RS140 Rack Server
Compact. Versatile for Business.
Click here to jump to more pricing!
Overview:
The Lenovo ThinkServer RS140 is the ideal right-sized, value-priced 1U rack solution for small and medium businesses that need optimized performance and flexibility for future growth.
- Intel Xeon™ E3 Series Processors
- Windows Server 2012 R2 Platform
- Enterprise-Class, 1U, Single Socket Rack Server
- Compact Form Factor with 16.2" Deep Chassis
- Support for Embedded Graphics CPUS
The new Lenovo ThinkServer RS140 is loaded with enterprise-class features in a slim 1U design. It features a compact and versatile design. The 1U Rack design gives you the ability to support four post and two post racks, giving you more flexibility with your business footprint. With up to 32GB of RAM, enhanced network access, and an internal storage capacity of 8TB, the RS140 allows flexibility with deployments in diverse SMB environments.
The ThinkServer RS140's smart and simple management allows secure remote access to the server for diagnostics, and even monitors real-time power data based on your defined parameters. The RS140 helps to prevent data corruption at the application and file system level.
Features:
Versatile for Business
How is Lenovo ThinkServer RS140 versatile for business? It's loaded with features, gives you the choice of a dual-chassis, and has a slim, 1U design. The RS140 runs a range of operating systems, including client OS capability for retail applications. It's among the quietest models in the industry, and it features easy-to-use, industry-standard management tools. The RS140 also has networking scalability and a wider range of processor support from Intel® Core™ i3 to Intel Xeon. Plus, the RS140 can support 4-post and 2-post racks, giving you more flexibility with your business footprint.
Built-in Value
Lenovo aims to add value to your business by including features you need without a lot of the unnecessary extras. Built with generous memory up to 32TB and internal storage of up to 8TB, Lenovo ThinkServer RS140 is an affordable, entry-level rack server ideal for small- to medium-sized business, workgroups, distributed locations, and webscale workloads. Plus the RS140 features integrated NICs, and an x8 PCIe slot for advanced RAID protection and network expansion.
Smart & Easy Server Management
Intel's Advanced Management Technology (AMT) offers an easy-to-use management toolset for remote diagnostics, updates, and repairs—regardless of platform state. AMT provides graceful OS shutdown to help prevent data corruption at the application and file system level, while also improving power-management features. Plus, with Xeon E3 processors, you get enhanced KVM support for up to 2560 x 1600 resolutions and a broad management-console ecosystem support.
Views:

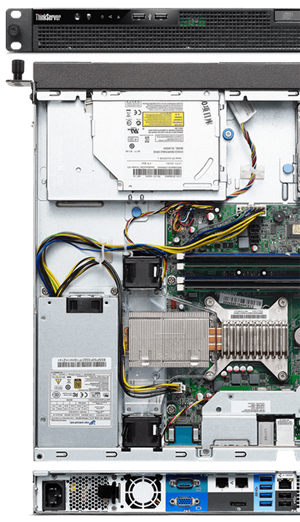

Lenovo ThinkServer RS140 (Click to enlarge)

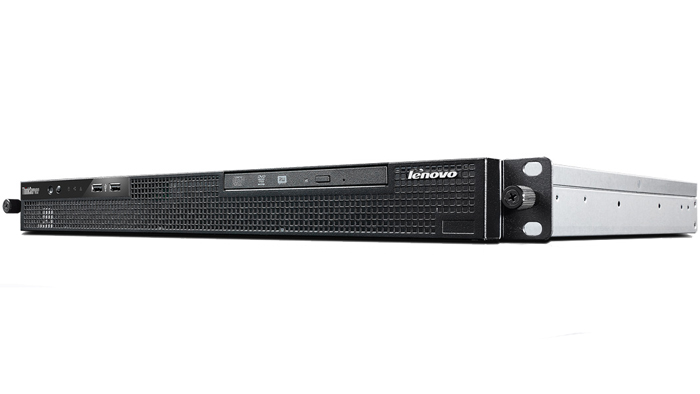

 Front Left View |

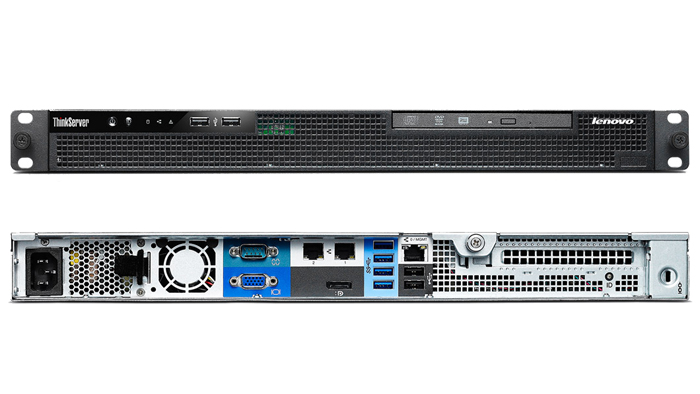

 Front and Rear View |

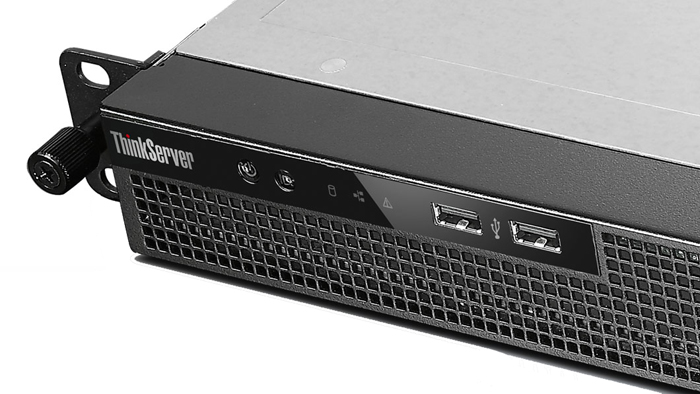

 Front Detail View |

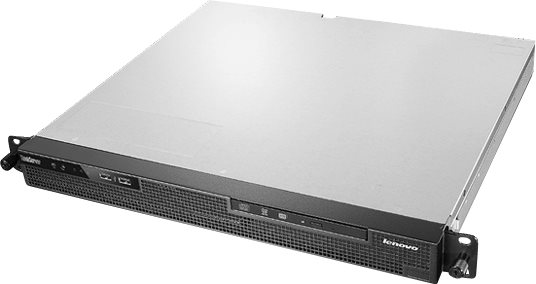

Top View |

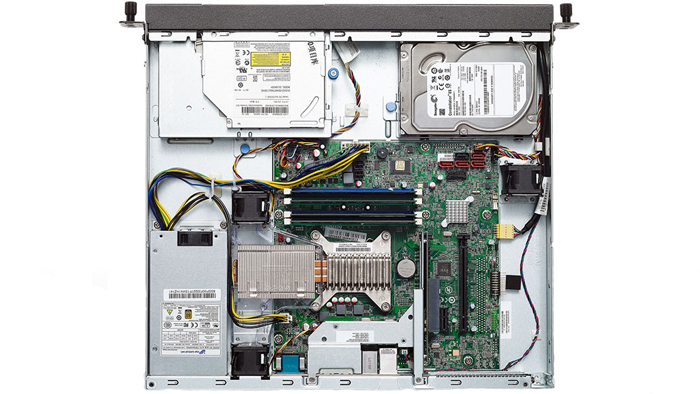

 Open Inside with 3.5" Drive View |

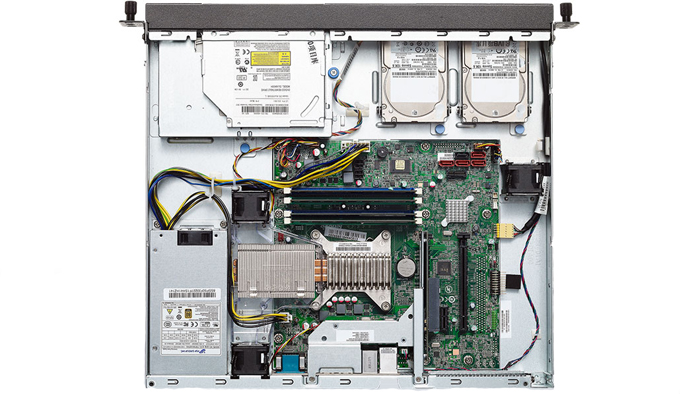

 Open Inside with 2.5" Drive View |
Specifications:
| Lenovo ThinkServer RS140 | |
|---|---|
| Performance | |
| Processor | Up to Intel Xeon E3-1285 v3 Series Processor Up to 1 Intel Core™ i3 Series |
| Operating System Supported | Microsoft Windows Server 2012 R2 |
| Memory | Up to 32GB / 4 slots (UDIMM) |
| Maximum Internal Storage | Up to 8TB (3.5" SATA) Up to 6TB (3.5" SAS) Up to 4TB (2.5" SATA) Up to 3.6TB (2.5" SAS) Up to 1.92TB (2.5" SSD) |
| Storage Controller | Integrated ThinkServer RAID 100 (0/1/5/10) 5 x SATA 6 GB/s connectors |
| Power supply | 1 Fixed: 300 watt |
| Diagnostics | Intelligent Diagnostics Panel |
| Systems Management | Intel Advanced Management Technology 9.0 (Xeon models only) Intel Standard Manageability (Core™ i3 models only) |
| Design | |
| Form Factor/Height | 1U Rack Server |
| Media Bays | 1 Slim optical (only available with 2.5" configuration) |
| Disk Bays | Up to 2 x 3.5" fixed Up to 4 x 2.5" fixed |
| Cooling | 3 Fixed fans with Intelligent Cooling Engine (ICE) |
| Dimensions (W X D X H) | 16.9" x 1.76" x 16.2" |
| Weight | Starting at 7.35 kg (16.2 lbs) |
| Connectivity | |
| Network Interface | 3 x Integrated 1Gb Ethernet |
| Expansion Slots Installed | 1 x PCIe GEN3: FH/HL x8 |
Services Offerings
Choose among a comprehensive portfolio of services optimized to support and protect your ThinkServer investment. Specify response time, duration, and optional features to meet your business needs and your budget.
- Priority Technical Support
Provides 24 x 7 direct access to advanced-level technicians. - Extended Warranties
Offer fixed-term, fixed-cost protection to help you budget for server expenses for up to five years, to help lower TCO. - Upgraded Warranties
Maximize uptime and productivity with convenient, same-day repair service at your place of business.
Documentation:
Download the Lenovo ThinkServer RS140 Datasheet (PDF).
