Lenovo ThinkServer TS140 Tower Server
Powerful, Reliable And Unmatched Value.

Features:

Enterprise-Class

The ThinkServer TS140 is a true server with enterprise-class Intel Xeon E3-1200 v3 series processors — providing a 15-percent performance increase over our previous-generation towers so you have the power you need to run your business effectively. And because we know you need to be able to count on the TS140, it includes reliability features such as error correcting code (ECC) memory and an onboard storage controller with the capability of implementing up to RAID 5 to safeguard your data.

Easy to Own

What do we mean when we say easy to own? In addition to being affordable, the TS140 is upgradeable. You can add up to 16TB of storage, up to 32GB of memory, and have 4 PCI/PCIe slots so you can grow the TS140 as your needs dictate. We also mean the TS140 is easy to manage. It offers simple tools for deployment, monitoring, and ongoing management. For example, the TS140 comes standard with the latest Intel Advanced Management Technology (AMT) 9.0 so, for many models, you can access and manage your server from a remote location.

Whisper-Quiet

At 26 decibels, the acoustics of the TS140 are 40 percent quieter than its predecessor and impressively quiet for any server. That's less noise than you'll find in a typical library. Plus, it's ENERGY STAR-certified, so it's easy on the environment and easy on your power bills.

Powerful, Stable, And Secure

The ThinkServer TS140 is a powerful, feature-rich yet affordable server, perfect for retail, branch office or front office use.

• Lower operating costs thanks to energy efficient performance and latest generation Intel Xeon E3-1200 v3 processors. TS140 provides easy remote manageability, with onboard tools to remotely power on/off your servers.
• Highly affordable, yet enterprise-tough. TS140 pays you back with reliable, feature-rich server computing at a desktop price.
• Maximize uptime with true server-class features like ECC memory, enterprise-class hard drives, and built-in RAID.
• Increase productivity via improved Xeon performance with Turbo Boost 2.0 and powerful HD graphics performance.

Powerful Intel AMT Manageability

The ThinkServer TS140 provides a rich experience with ease of installation and management.

• Remote management with Intel® AMT™ (select models) provides out-of-band remote access and management, independent of the status of the managed server.
• Broad MSP ecosystem support on leading platforms like N-Able, Kaseya and Level Platforms.
• Easy-to-use with an intuitive, secure web console for “point-and-click” management. No installation required – works right out of the box.

Views:

Lenovo ThinkServer TS140 (Click to enlarge)

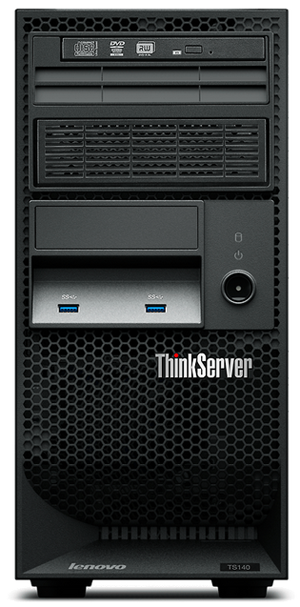

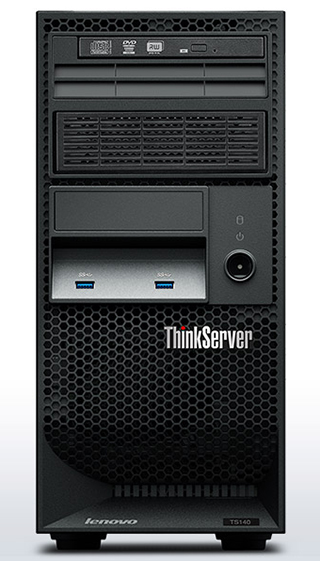

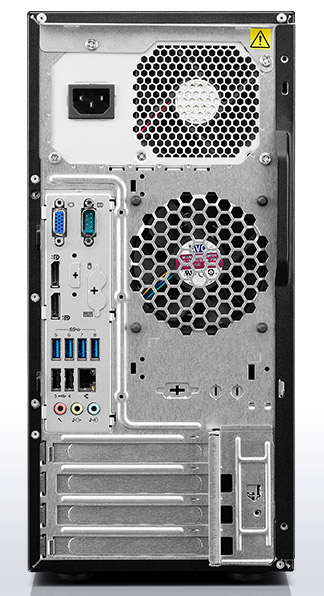

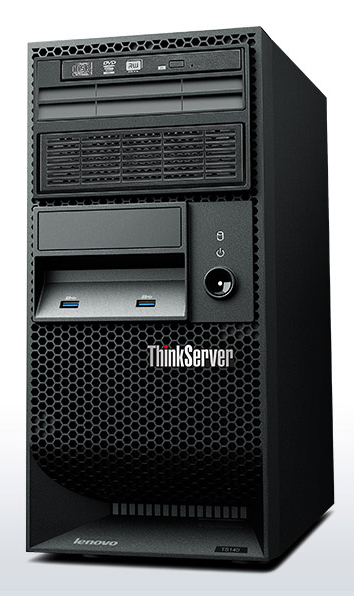

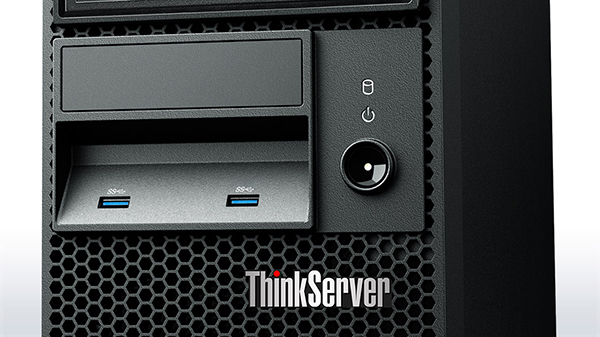

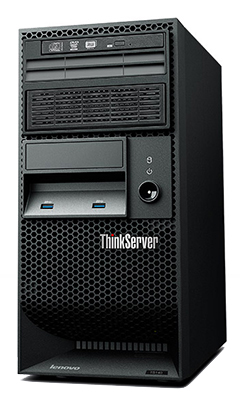

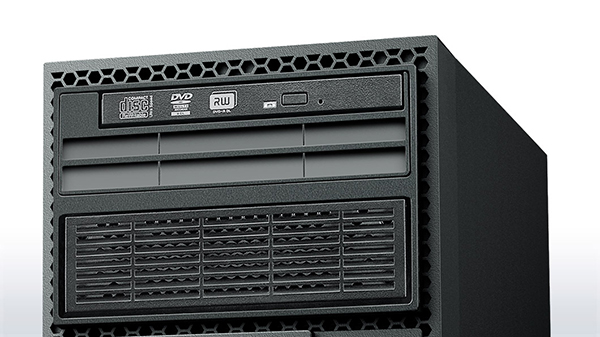

Rear View	Front Right View	Front View	Front Top Detail View

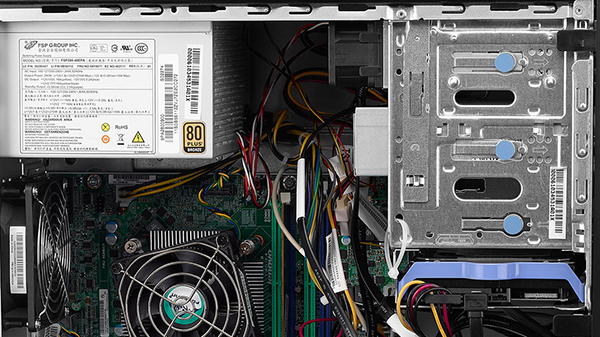

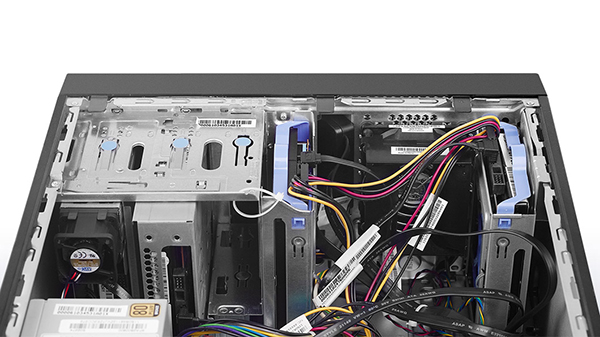

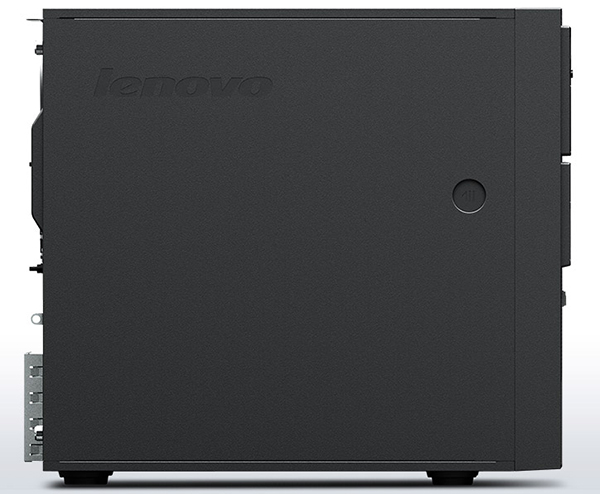

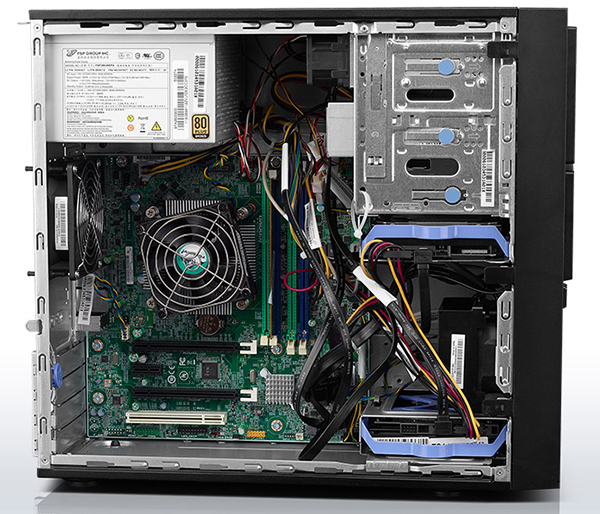

Front Middle Detail View	Left Side View	Open Inside View	Open Inside Top Deatil View

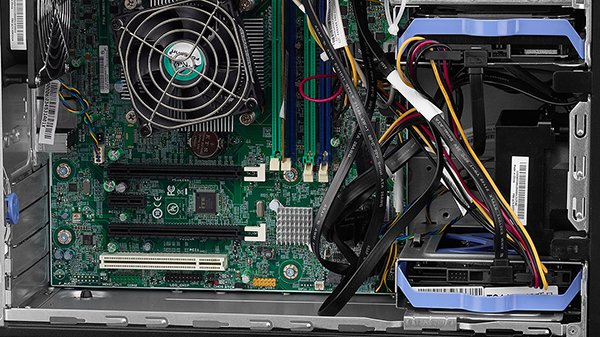

Open Inside Bottom Deatil View	Side Detail View

Specifications:

Lenovo ThinkServer TS140
Performance
Processor	1 Intel Xeon E3-1200 v3 Series or Intel Core™ i3 Series
Operating System Supported	Microsoft Windows Server 2012 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2008 R2 Microsoft Windows Small Business Server 2011 Microsoft Windows 8.1 Microsoft Windows 7 Microsoft Windows Multipoint Server VMware ESXi 5.5
Memory	Up to 32GB PC3-12800E 1600 MHz DDR3 ECC via 4 slots (UDIMM)
Maximum Internal Storage	Up to 16TB SATA 3.5" chassis or Up to 4TB SATA 2.5" chassis
Power supply	1 Fixed – 450W, 1 Fixed – 280W optional
RAID Support	Integrated ThinkServer RAID 100 (0/1/10/5)
Diagnostics	Intelligent Diagnostics Panel
Systems Management	Intel Advanced Management Technology 9.0 (Xeon models) Intel Standard Manageability (Core i3 models)
Design
Form Factor/Height	4U Tower
Media Bays	Up to 2 x 5.25
Disk Bays	Up to 4 x 3.5" Fixed or Up to 4 x 2.5" Fixed
Dimensions (W X D X H)	6.88" x 14.76" x 16.96" (174.75 mm x 374.90 mm x 430.78 mm)
Weight	Starting at 61.8 lbs (28.0 kg)
Connectivity
Network Interface	1 x Integrated Gb Ethernet
Expansion Slots	1 x PCIe GEN3: HH/FL x16 mechanical, x16 electrical 1 x PCIe GEN2: HH/HL x1 mechanical, x1 electrical 1 x PCIe GEN2: HH/HL x16 mechanical, x4 electrical 1 x PCI 32-bit/33 MHz: FH/HL

Services Offerings

Lenovo Services lets you get the most out of your ThinkServer – no matter how you use it. Whether you have a thousand client seats or just one, Lenovo delivers the quality, reliability and peace of mind to keep you up and running, no matter where you are, no matter when you need it.

Lenovo ThinkServer Services are offered in a variety of service levels to meet the needs of your business as well as your budget. You can extend your base warranty for up to five years, and choose the service level you value most: onsite next day, same day, or around the clock within four or eight hour service windows up to 365 days a year. We also offer an optional Keep Your Drive service so that your data never needs to leave your premises, as well as a Priority Support call center upgrade offering

TS Series ThinkServer with 1-year base warranty

• 3-year Onsite Next Business Day Response ----------- 5WS0E76466
• 4-year Onsite Next Business Day Response ----------- 5WS0E76448
• 5-year Onsite Next Business Day Response ----------- 5WS0E76422
• 3-year 9x5 4 Hour Response (TS Series) ------------- 5WS0E76430
• 3-year 24x7 4 Hour Response (TS Series) ------------ 5WS0E37825

TS Series ThinkServer with 3-year base warranty

• 4-year Onsite Next Business Day Response ----------- 5WS0E76429
• 5-year Onsite Next Business Day Response ----------- 5WS0E76495
• 3-year 9x5 4 Hour Response (TS Series) ------------- 5WS0E76480
• 3-year 24x7 4 Hour Response (TS Series) ------------ 5WS0E37827

Lenovo ThinkServer Priority Support

Want to jump to the head of the queue? Talk to a specialized agent and get advanced call center support? Then our Priority Support offering is perfect for you. Choose an offering which matches the term of the ThinkServer base warranty, or select from the convenient service bundle offerings designed to make it easy to purchase the combination of Lenovo services that are just right for your organization.

• 1-year Priority -------------------------------------- 5WS0E76420
• 3-year Priority -------------------------------------- 5WS0E76471

Lenovo ThinkServer Keep Your Drive

Data security is more important than ever, and Lenovo offers our popular Keep Your Drive Service so that your data never needs to leave your hands. In the unlikely event of a hard drive failure requiring a hard drive replacement, you can keep your original drive, ensuring that your data stays in your control. Add this service to your base warranty, or choose a services bundle which meets your business needs.

Lenovo ThinkServer Keep Your Drive

• 1-year Keep Your Drive (TS Series) ------------------- 5PS0E76444
• 3-year Keep Your Drive (TS Series)------------------- 5PS0E76502

Bundled ThinkServer Services Offerings

Lenovo offers convenient services bundles to allow you to choose the combination of services that’s right for you with a single part number and price. Here are a few of our most popular offerings:

TS Series ThinkServer with 1-year base warranty

• 1-year 9x5 4 Hour Response + Priority (TS Series)----- 5WS0E76425
• 3-year 9x5 4 Hour Response + Priority + Keep Your Drive (TS Series)---- 5PS0E76468
• 3-year 24x7 4 Hour Response + Priority (TS Series)---- 5WS0E76435

TS Series ThinkServer with 3-year base warranty

• 3-year 9x5 4 Hour Response + Priority (TS Series)---- 5WS0E76472
• 3-year 24x7 4 Hour Response + Priority (TS Series)--- 5WS0E76485
• 3-year 24x7 4 Hour Response + Priority + Keep Your Drive (TS Series)----- 5PS0E76443
• 4-year 9x5 4 Hour Response + Priority + Keep Your Drive (TS Series)------- 5PS0E76414

NOTE: All service levels offered vary by country. Please consult your Lenovo Business Partner or Lenovo Sales Representative for more information on the services offered in your location.

Documentation:

Download the Lenovo ThinkServer TS140 Datasheet (PDF).
