Lenovo ThinkStation P300 Tower Workstation
Power of a Workstation. Price of a Desktop.

Features:

Tower Workstation

Tower workstations provide the ultimate performance with full-featured scalability, yet are sized at just 25 liters.

Optional Flex Module

The innovative Flex Module lets you customize I/O ports, so you add only what you need. With the 2 available 5.25" bays on the P300 Tower, you can mix and match components including an ultraslim ODD, 29-in-1 media card reader, Firewire, and eSATA – up to 8 configurations among an ODD, HDD, and Flex Module.

Improved Design & Functionality

We've redesigned our ThinkStations. No more bulky handles, just a clean-looking, functional design. An extended lip on the top lid that includes a red touch point, combined with a ledge on the back-side, make the P300 exceptionally easy to lift and carry.

Platform Stability

The P300 workstation features a 15-month life cycle with no planned hardware changes that affect the preloaded software image. Image stability for long-term deployments helps to reduce transition, qualification, and testing costs to ensure savings for your business.

ISV-Certification & Preloaded Software ThinkStation P300 is certified to run many key professional independent software vendor (ISV) applications, including Adobe, Autodesk, Dassault, PTC, SolidWorks, Avid, and Siemens. Additionally, this workstation includes error correcting code (ECC) memory, which drastically reduces the possibility of memory-related errors and critical data loss. Multiple Monitor Display Maximize productivity with independent display support for up to three independent monitors using Mosaic Mode with integrated Intel graphics. Plus, connect to up to 16 independent monitors with 1.2 stream cloning mode. Fast Data Transfer With 6 USB 3.0 ports (two in the front and four in the rear), plus 3 USB 2.0 (one internal), you can move data quickly between your workstation and other devices. SuperSpeed USB 3.0 enables file transfer up to 10 times faster than previous USB technologies, which allows for lightning-fast copying of large media files, as well as seamless connections between audio- and video-related devices. Backward-compatible with USB 2.0 devices. Tool-Less Expandability Upgrades are a cinch for IT staff, with convenient tool-free access to hardware. Especially beneficial when working with multiple workstations. Solid Security & Manageability ThinkStation P300 workstations include some of the best security tools available in the industry, including USB ports disablement to help prevent data theft and network security risks against unauthorized use of storage devices. The Trusted Platform Module (TPM) encrypts data and key information like passwords and digital certificates, further securing applications, electronic transactions, and online communication. A Kensington lock slot makes it easy to physically secure your workstation. Plus, Intel vPro™ technology provides one-touch setup that allows deployment and configuration of the technology on up to two-thirds of your install base within minutes.

ISV-Certification (monitor not included)

Unmatched Reliability

The ThinkStation P300 continues the long legacy of unmatched reliability touted by Lenovo single and dual processor workstations. It's built with the same efficient thermal design and employs a cooling process that makes ThinkStation workstations stand out from the competition.

Green Leadership

ThinkStation P300 tower is GREENGUARD certified and features a fixed power supply unit (PSU) that's 450W and up to 92% efficient.

Priority Technical Support

You demand a lot from your system and Lenovo Services help you stay productive. Bypass basic troubleshooting support with direct access to advanced-level technicians to resolve issues quickly. Add Priority Technical Support to your purchase.

Views:

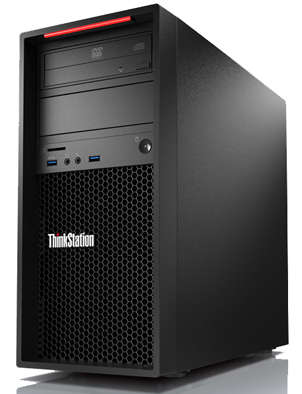

Lenovo ThinkStation P300 Tower Workstation (Click to enlarge)

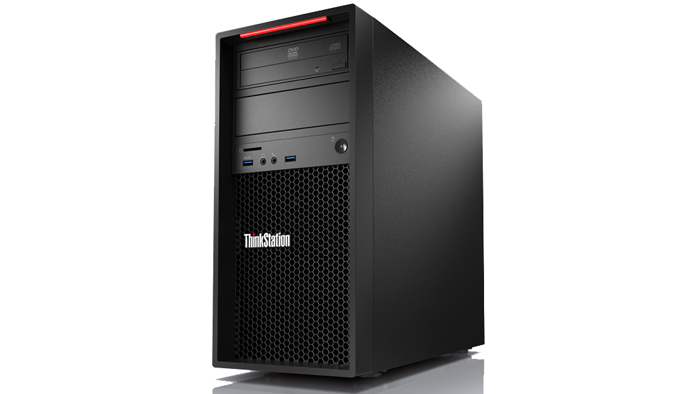

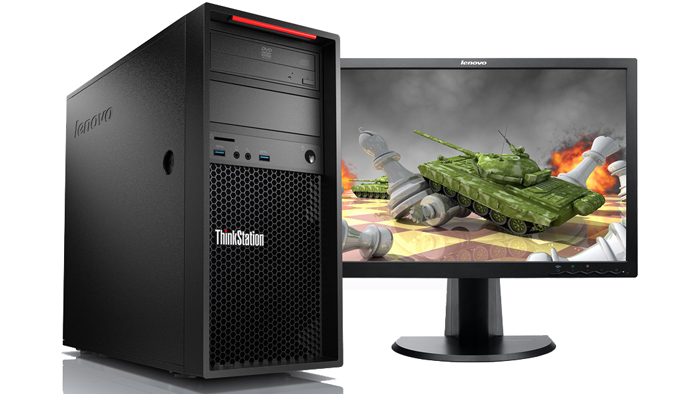

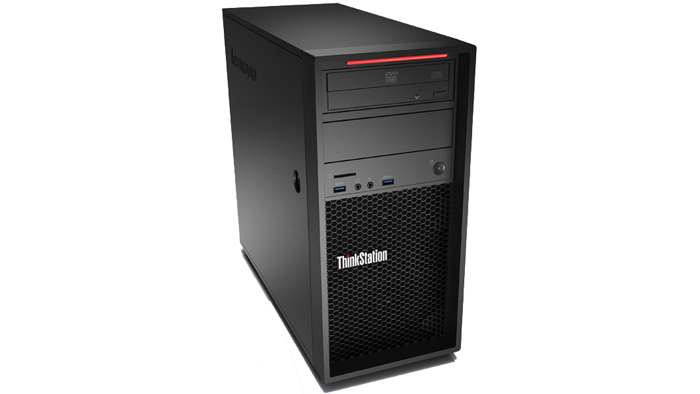

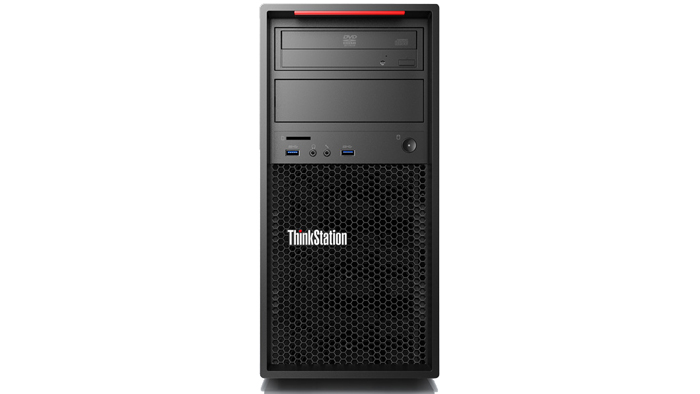

Workstation with Monitor (Tower)	Right Angle View	Left Angle View	Front View

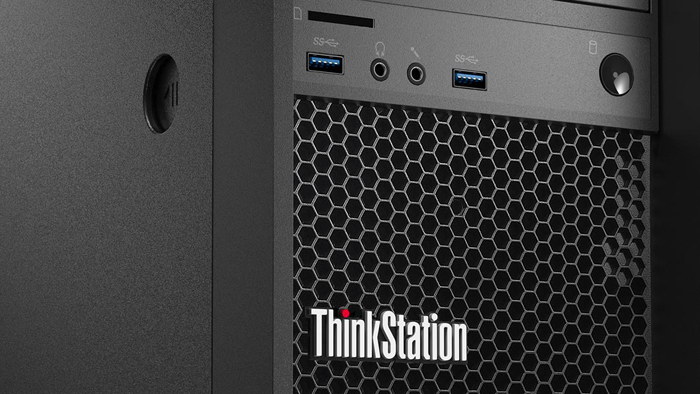

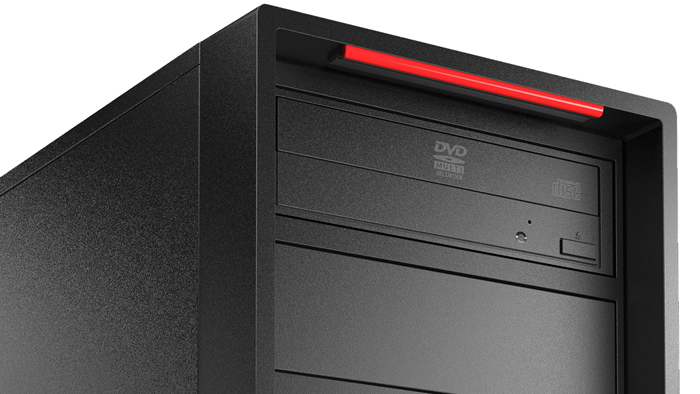

Optical Drive Zoom View	Ports Zoom View

Specifications:

Lenovo ThinkStation P300 Tower Workstation
Performance
Processor	Intel Core™ i7 processor Intel Core™ i5 processor Intel Core™ i3 processor Intel Xeon E3-1200 processor
Operating System	Windows 8.1 64 bit Windows 8.1 Professional 64 bit Windows 7 Professional 64 bit Windows 7 Professional 32 bit
Graphics	NVIDIA NVS / Quadro up to K4000
Memory	4 Slots, 32GB
Storage	3.5" SATA 7200 RPM up to 4TB 3.5" SATA 7200 RPM Hybrid up to 2TB 2.5" SATA 10K RPM up to 1TB 2.5" SATA SSD up to 512GB mSATA 24GB
Max HDD	4 HDD 4 x 3.5" or 4 x 2.5"
mSATA	24GB, 128GB, 256GB
Power supply	280W 85% 450W 92%
RAID	0, 1, 5, 10
Media Card Reader	SD Card Reader (optional) Optional 29:1
Flex Module	YES – up to 4 devices (1) 9.5 mm Slim ODD (1) MCR 1394 IEEE Firewire eSATA
Design
Dimensions (W X D X H)	6.9" x 16.97" x 16.7" (175.26 mm x 429.26 mm x 424.18 mm)
Chip set	C226
Connectivity
Front Ports	(2) USB 3.0 (1) Microphone (1) Headphone (1) SD Card Reader (1) 29:1 MCR (Optional) (1) 1394 IEEE Firewire (Optional) (1) eSATA (Optional)

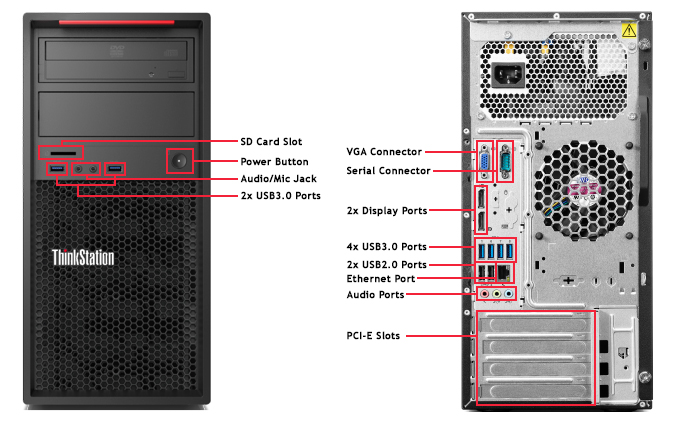

Rear Ports	(4) USB 3.0 (2) USB 2.0 (1) Serial (+1 Optional) (1) VGA (2) Display Port (1) Ethernet (1) Audio Line In (1) Audio Line Out (1) Microphone In
Physical Security	Cable Lock
Wi-Fi	Optional Intel Wireless – N 7260802.11 b/g/n, 2 x 2, 2.4 GHz WiFi + Bluetooth 4.0
PCI / PCIe Slots	1 x PCIe x16 1 x PCI x4 (x16 Mechanical) 1 x PCIe x1 1 x PCI

Software

Windows 7 Preloads

• Adobe Acrobat Reader
• CyberLink Power DVD (on systems with Optical drives)
• CyberLink Create(on systems with Optical drives)
• Microsoft Office 2013 Trial
• Norton Internet Security 2014 (30-day trial)
• Skype™
• ThinkVantage System Update
• Rescue and Recovery (Ready-to-Install)
• Lenovo Reach (only in US and Canada)
• Lenovo Solution Center
• PC Device Experience

Windows 8.1 Preloads

• CyberLink Power DVD (on systems with Optical drives)
• CyberLink Create (on systems with Optical drives)
• Evernote
• Lenovo Companion
• Lenovo Support
• Lenovo Solution Center
• Norton Internet Security 2014 (30-day trial)
• Password Manager (Web install)
• PC Device Experience
• Hightail
• Lenovo Reach (only in US and Canada)
• Norton Studio

Services Offerings

Lenovo offers a comprehensive portfolio of services to support and protect your ThinkCentre® Edge investment. Focus on your customers and business, not your IT.

• Priority Technical Support*
  Makes your priority, our priority. 24x7 priority call routing to advanced-level technicians, electronic incident tracking, and rapid response and resolution.
• Warranty Upgrades – Onsite and Next Business Day
  Maximizes PC uptime and productivity by providing convenient, fast repair service the next business day.
• Warranty Extensions (1-to-4 Years Total Duration)
  This fixed-term, fixed-cost service helps accurately budget for PC expenses, protect your valuable investment, and potentially lower the cost of ownership over time.

* Not available in all regions

Documentation:

Download the Lenovo ThinkStation P300 Datasheet (PDF).
