Lenovo ThinkStation P500 Tower Workstation
A Versatile Workstation Configured Your Way.

Lenovo ThinkStation P500 Tower Workstation

Lenovo Products
Lenovo ThinkStation P500 Tower Workstation
Lenovo ThinkStation P500 Mini Tower Workstation
- Intel Xeon E5-1607v3 3.1GHz (4 Cores), 4GB ECC, 500GB/7200 SATA, DVD-RW, NVIDIA K620, Win 7 Pro 64, 3 Year Onsite
#30A7000MUS
Get a Quote!
Lenovo ThinkStation P500 Mini Tower Workstation
- Intel Xeon E5-1630v3 3.7GHz (4 Cores), 4GB ECC, 180 SSD, DVD-RW, No Graphics, Win 7 Pro 64, 3 Year Onsite
#30A7000TUS
Get a Quote!
Lenovo ThinkStation P500 Mini Tower Workstation
- Intel Xeon E5-1620v3 3.5GHz (4 Cores), 4GB ECC, 1TB/7200 SATA, DVD-RW, NVIDIA K2200, Win 7 Pro 64, 3 Year Onsite
#30A7000QUS
Get a Quote!
Lenovo ThinkStation P500 Mini Tower Workstation
- Intel Xeon E5-1650v3 3.5GHz (6 Cores), 8GB ECC, 256GB Opal SSD, DVD-RW, No Graphics, Win 7 Pro 64, 3 Year Onsite
#30A7000WUS
Get a Quote!
Lenovo ThinkStation P500 Mini Tower Workstation
- Intel Xeon E5-1630v3 3.7GHz (4 Cores), 4GB ECC, 1TB / 7200 SATA, DVD-RW, NVIDIA K4200, Win 7 Pro 64, 3 Year Onsite
#30A7000SUS
Get a Quote!

Click here to jump to more pricing!

Overview:

Delivers power & flexibility with more I/O slots, interchangeable PSU to reduce costs, & the highest storage capacity in the industry for 1P workstation.

  • Intel Xeon™ E5 Series Processors
  • Windows 8.1 Pro 64-bit Operating System
  • Power & Flexibility with More I/O Slots
  • Innovative Flex Module Support for Customization
  • Long-Term Manageability & Unmatched Reliability

A next-generation workstation that's powerful enough for any job and reliable enough for mission-critical environments. Customize a ThinkStation P500 for the power, performance and usability you need, including the highest storage capacity available. Intelligent design features include new Flex Trays that holds up to two drives for total flexibility and patented Tri-Channel Cooling for enhanced reliability.

ThinkStation P500 Tower Workstation List

Features:

Thermal Design: Elegant & Efficient

Patented tri-channel cooling with just 3 system fans – as opposed to 10 that other workstations typically rely on — and a direct cooling air baffle directs fresh air into the CPU and memory. ThinkStation P500 delivers new technologies and design to keep your workstation cool and quiet.

Optional Flex Module

The innovative Flex Module lets you customize I/O ports, so you add only what you need. Using the 5.25" bays, you can mix and match components including an ultraslim ODD, 29-in-1 media card reader, Firewire, and eSATA.

Optional Flex Connector

The Flex Connector is a mezzanine card that fits into the motherboard and allows for expanded storage and I/O, without sacrificing the use of rear PCI. It supports SATA/SAS/PCIe advanced RAID solution. ThinkStation P500 includes one available connector.

Improved Design & Functionality

We've redesigned our ThinkStations. No more bulky handles, just a clean-looking, functional design. Integrated handles make it easier to carry and move they systems, or place into a rack.

ISV-Certification

ThinkStation P500 is certified to run key professional independent software vendor (ISV) applications, including Adobe, Autodesk®, Dassault, PTC, SolidWorks, Avid, and Siemens. Additionally, this workstation includes error correcting code (ECC) memory, which drastically reduces the possibility of memory-related errors and critical data loss.

Multiple Monitor Display

Maximize productivity with independent display support for up to three independent monitors using Mosaic Mode with integrated Intel graphics. Plus, connect to up to 16 independent monitors with 1.2 stream cloning mode.

Fast Data Transfer

With USB 3.0 ports, you can move data quickly between your workstation and other devices. SuperSpeed USB 3.0 enables file transfer up to 10 times faster than previous USB technologies, which allows for lightning-fast copying of large media files, as well as seamless connections between audio- and video-related devices. Backward-compatible with USB 2.0 devices.

Modular Components & Tool-Free Expandability

Innovative modular design makes tool-less upgrades a snap, especially with Flex Trays for fully configurable storage and interchangeable power supplies and graphics cards — especially beneficial when working with multiple workstations.

Unmatched Reliability

The ThinkStation P500 continues the long legacy of unmatched reliability touted by Lenovo single and dual processor workstations. It's built with the same efficient thermal design and employs a cooling process that makes ThinkStation workstations stand out from the competition.

ISV-Certification (monitor not included)
ISV-Certification (monitor not included)

Green Leadership

ThinkStation P500 tower is GREENGUARD certified and features a fixed power supply unit (PSU) — with a choice of either 650W / 92% efficient or 490W / 80% efficient.

Priority Technical Support

You demand a lot from your system and Lenovo Services help you stay productive. Bypass basic troubleshooting support with direct access to advanced-level technicians to resolve issues quickly. Add Priority Technical Support to your purchase.

Views:

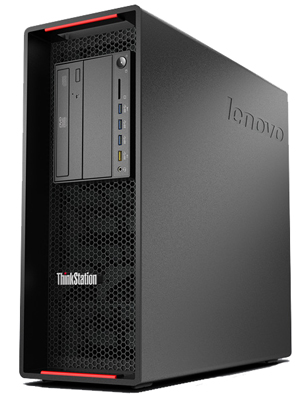

Lenovo ThinkStation P500 Workstation (Click to enlarge)

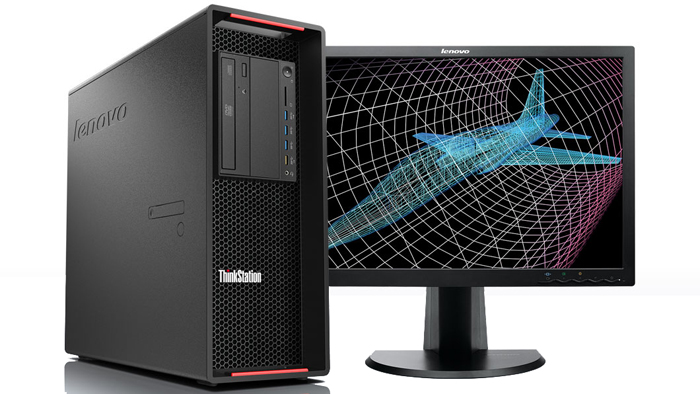

Workstation with Monitor (Tower)
Workstation with Monitor (Tower)

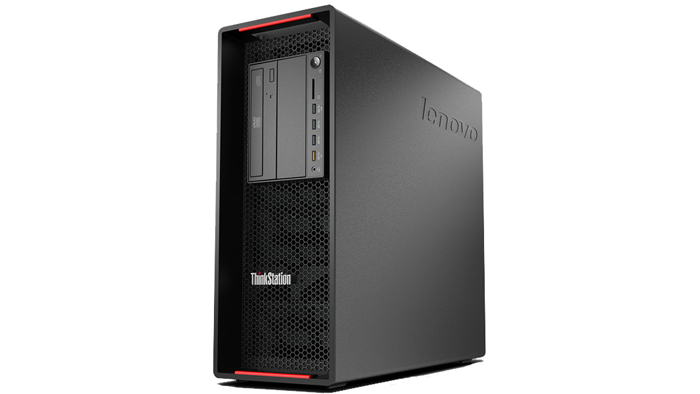

Left Angle View
Left Angle View

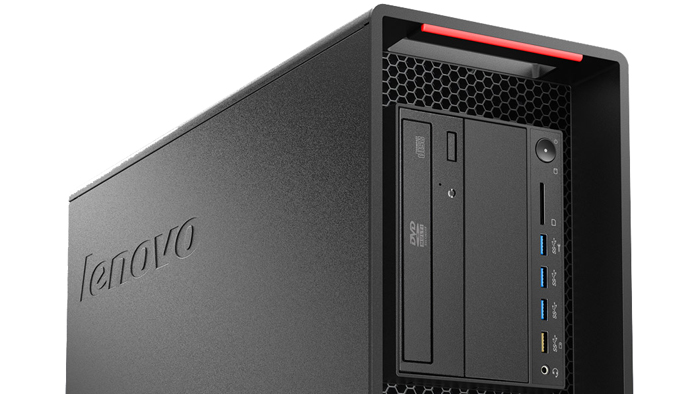

Optical Drive/Ports Zoom View
Optical Drive/Ports Zoom View

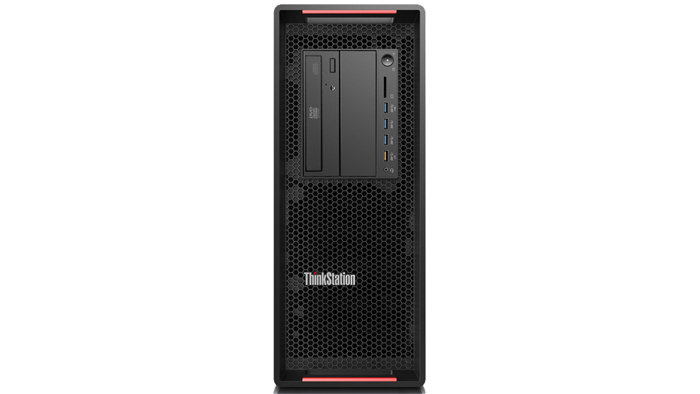

Front View
Front View

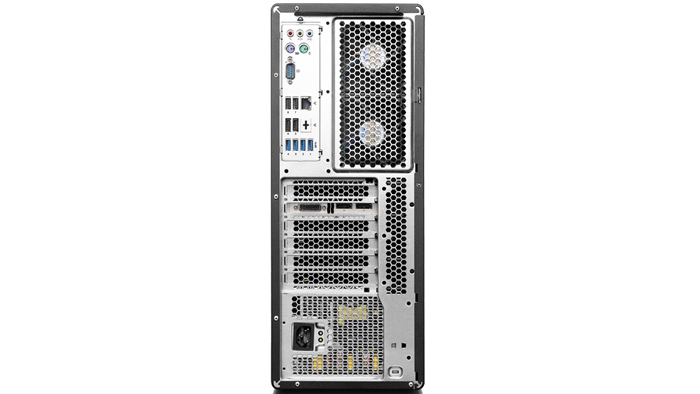

Rear View
Rear View

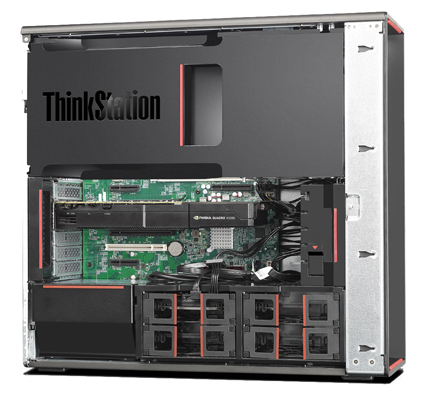

Open Internal View
Open Internal View

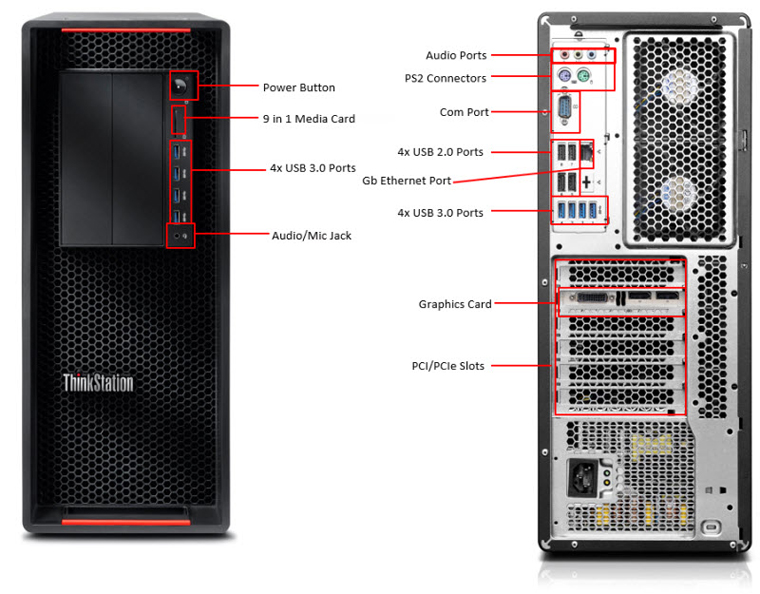

ThinkStation P500 External Front and Rear

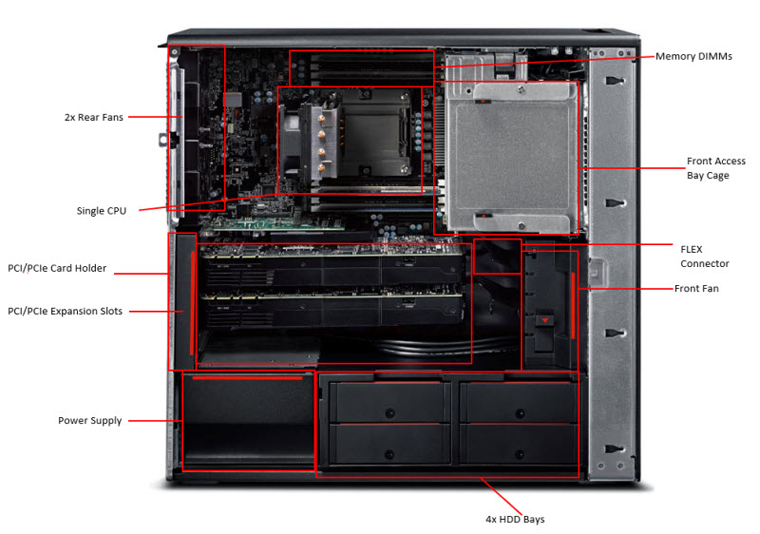

ThinkStation P500 Internal

Specifications:


Lenovo ThinkStation P500 Workstation
Performance
Processor Up to Intel Xeon E5-2643 v3 Processor (30MB Cache, 3.40GHz)
Operating System Windows 8.1
Windows 8.1 Professional
Windows 7 Professional 64 bit
Windows 7 Professional 32 bit
Graphics Up to NVIDIA Quadro K6000 (DVI x 2, DP x 2) - 12GB GDDR5
Memory 16GB DDR4 2133MHz (2Rx4) ECC RDIMM
Storage Max 3.5" = 6 (24TB)1
Max 2.5" = 10 (7.4TB)1
Max M.2 = 1 (256GB)1
Power supply 490 W 80% Efficient
650 W 92% Efficient
RAID 0, 1, 5, 10
Media Card Reader Integrated 9-in-1 SD card reader
Optional 29:1
Flex Module YES – up to 4 devices
(1) 9.5 mm Slim ODD
(29:1) MCR
1394 IEEE Firewire
eSATA
Design
Dimensions (W X D X H) 6.9" x 18.5" x 17.3"
Chip set C612
Connectivity
Ports (4) Rear 3.0
(4) Rear 2.0
(4) Front 3.0
1 x 1GBe ethernet
PS2
Expansion Slots 2 x PCIe x 16
2 x PCIe x 4 (open ended)
1 x PCIe x 1 (open ended)
1 x PCI
1 x Flex Connector

Software

Windows 7 Preloads

  • Adobe Acrobat Reader
  • CyberLink Power DVD (on systems with Optical drives)
  • CyberLink Create(on systems with Optical drives)
  • Microsoft Office 2013 Trial
  • Norton Internet Security 2014 (30-day trial)
  • Skype™
  • ThinkVantage System Update
  • Rescue and Recovery (Ready-to-Install)
  • Lenovo Reach (only in US and Canada)
  • Lenovo Solution Center
  • PC Device Experience

Windows 8.1 Preloads

  • CyberLink Power DVD (on systems with Optical drives)
  • CyberLink Create (on systems with Optical drives)
  • Evernote
  • Lenovo Companion
  • Lenovo Support
  • Lenovo Solution Center
  • Norton Internet Security 2014 (30-day trial)
  • Password Manager (Web install)
  • PC Device Experience
  • Hightail
  • Lenovo Reach (only in US and Canada)
  • Norton Studio

Services Offerings

Lenovo offers a comprehensive portfolio of services to support and protect your ThinkCentre® Edge investment. Focus on your customers and business, not your IT.

  • Priority Technical Support*
    Makes your priority, our priority. 24x7 priority call routing to advanced-level technicians, electronic incident tracking, and rapid response and resolution.
  • Warranty Upgrades – Onsite and Next Business Day
    Maximizes PC uptime and productivity by providing convenient, fast repair service the next business day.
  • Warranty Extensions (1-to-4 Years Total Duration)
    This fixed-term, fixed-cost service helps accurately budget for PC expenses, protect your valuable investment, and potentially lower the cost of ownership over time.

* Not available in all regions

Documentation:

Download the Lenovo ThinkStation P500 Datasheet (PDF).
