Lenovo ThinkStation P700 Tower Workstation
Power and Versatile. A Next-Gen Workstation Built For Critical Tasks.

Features:

Thermal Design: Elegant & Efficient

Patented tri-channel cooling with just 3 system fans – as opposed to 10 that other workstations typically rely on — and a direct cooling air baffle directs fresh air into the CPU and memory. ThinkStation P700 delivers new technologies and design to keep your workstation cool and quiet.

Optional Flex Module

The innovative Flex Module lets you customize I/O ports, so you add only what you need. Using the 5.25" bays, you can mix and match components including an ultraslim ODD, 29-in-1 media card reader, Firewire, and eSATA.

Optional Flex Connector

The Flex Connector is a mezzanine card that fits into the motherboard and allows for expanded storage and I/O, without sacrificing the use of rear PCI. It supports SATA/SAS/PCIe advanced RAID solution. ThinkStation P700 includes one available connector.

Improved Design & Functionality

We've redesigned our ThinkStations. No more bulky handles, just a clean-looking, functional design. Integrated handles make it easier to carry and move they systems, or place into a rack.

ISV-Certification ThinkStation P700 is certified to run key professional independent software vendor (ISV) applications, including Adobe, Autodesk, Dassault, PTC, SolidWorks, Avid, and Siemens. Additionally, this workstation includes error correcting code (ECC) memory, which drastically reduces the possibility of memory-related errors and critical data loss. Multiple Monitor Display Maximize productivity with independent display support for up to three independent monitors using Mosaic Mode with integrated Intel graphics. Plus, connect to up to 16 independent monitors with 1.2 stream cloning mode. Fast Data Transfer With USB 3.0 ports, you can move data quickly between your workstation and other devices. SuperSpeed USB 3.0 enables file transfer up to 10 times faster than previous USB technologies, which allows for lightning-fast copying of large media files, as well as seamless connections between audio- and video-related devices. Backward-compatible with USB 2.0 devices. Modular Components & Tool-Free Expandability Innovative modular design makes tool-less upgrades a snap, especially with Flex Trays for fully configurable storage and interchangeable power supplies and graphics cards — especially beneficial when working with multiple workstations. Unmatched Reliability The ThinkStation P700 continues the long legacy of unmatched reliability touted by Lenovo single and dual processor workstations. It's built with the same efficient thermal design and employs a cooling process that makes ThinkStation workstations stand out from the competition.

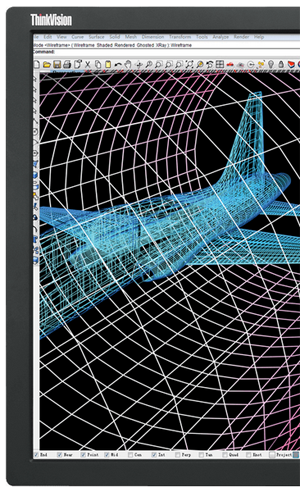

ISV-Certification (monitor not included)

Green Leadership

ThinkStation P700 tower is GREENGUARD certified and features a fixed power supply unit (PSU) — with a choice of either 650W or 850W that's 92% efficient.

Priority Technical Support

You demand a lot from your system and Lenovo Services help you stay productive. Bypass basic troubleshooting support with direct access to advanced-level technicians to resolve issues quickly. Add Priority Technical Support to your purchase.

Views:

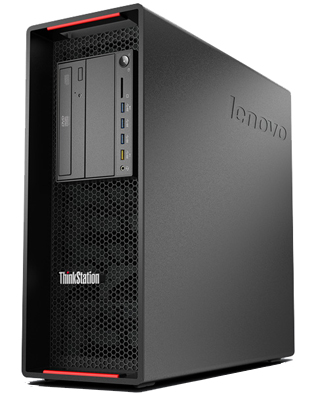

Lenovo ThinkStation P700 Workstation (Click to enlarge)

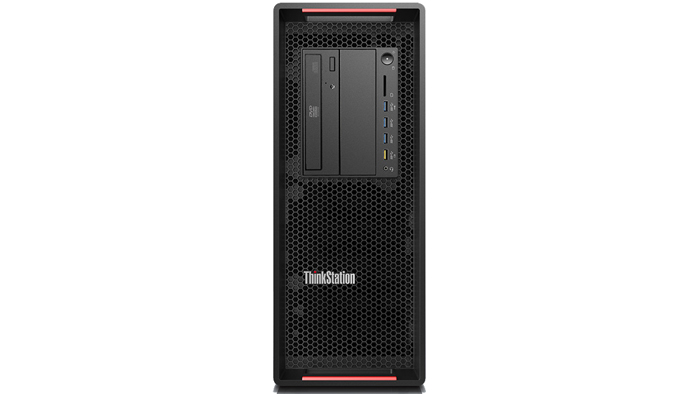

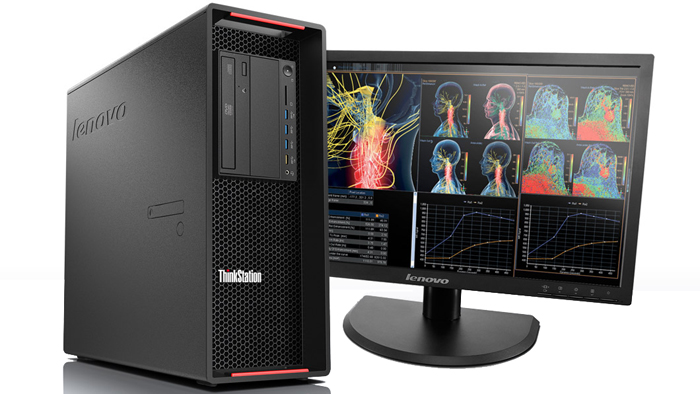

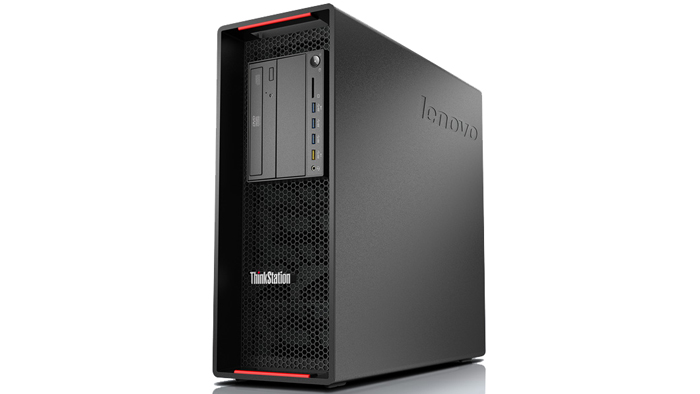

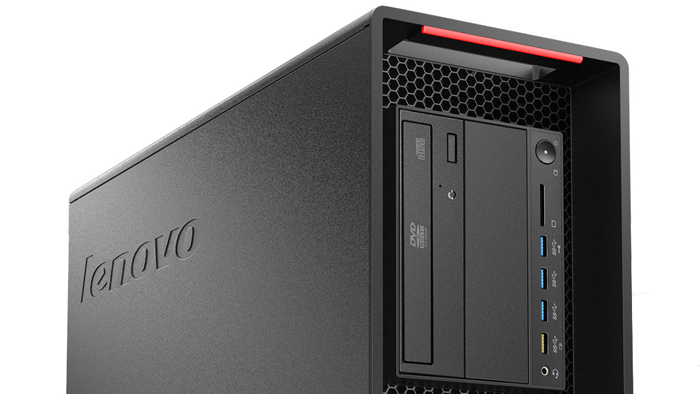

Workstation with Monitor (Tower)	Left Angle View	Optical Drive/Ports Zoom View	Front View

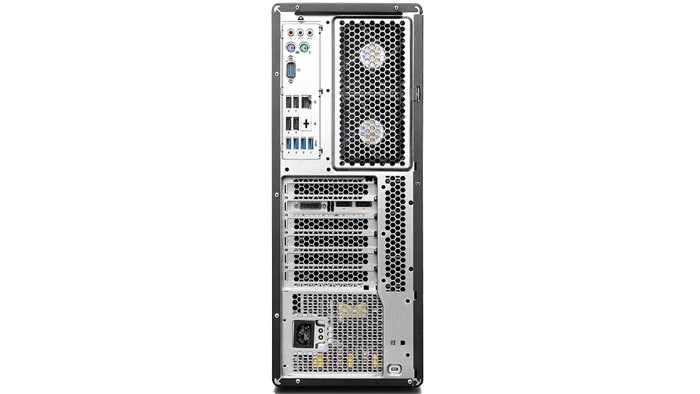

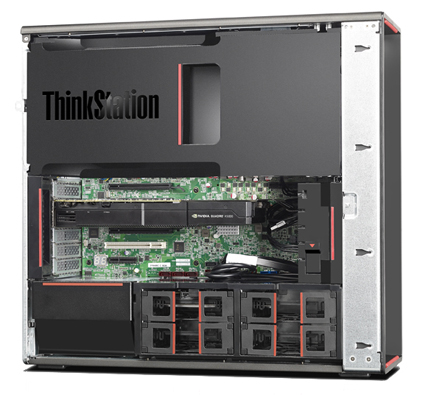

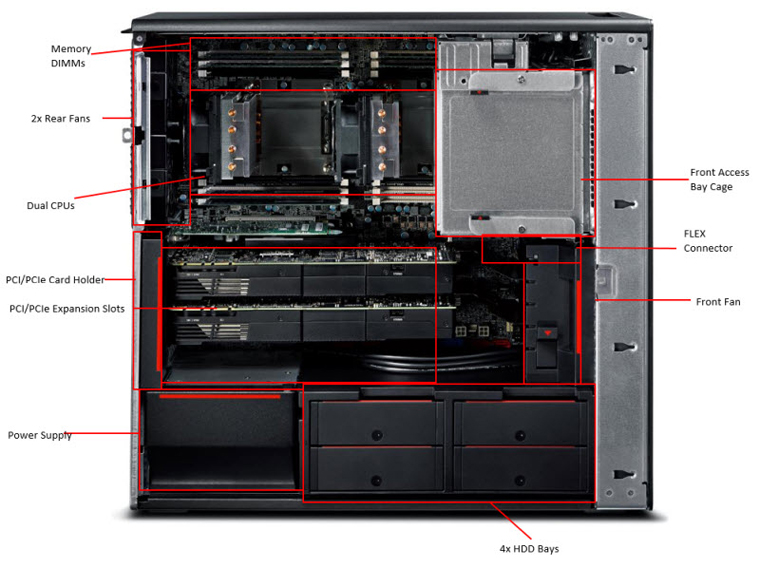

Rear View	Open Internal View

Specifications:

Lenovo ThinkStation P700 Workstation
Performance
Processor	Future Intel Xeon EP Processors E5-1600 v3 and E5-2600 v3 family of processors
Operating System	Windows 8.1 Pro 64 Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8.1 Pro 64
Graphics	Up to NVIDIA Quadro K5200 6G (2DVI+2DP)
Memory	16 DIMM slots, up to 2133 MHz
Storage	Max 3.5" = 6 (24TB)1 Max 2.5" = 10 (7.4TB)1 Max M.2 = 2 (512GB)1
Power supply	650 W 92% Efficient 850 W 92% Efficient
RAID	0, 1, 5, 10
Media Card Reader	Integrated 9-in-1 SD card reader Optional 29:1
Flex Module	YES – up to 4 devices (1) 9.5 mm Slim ODD (29:1) MCR 1394 IEEE Firewire eSATA
Design
Dimensions (W X D X H)	6.9" x 18.5" x 17.3"
Chip set	C612
Connectivity

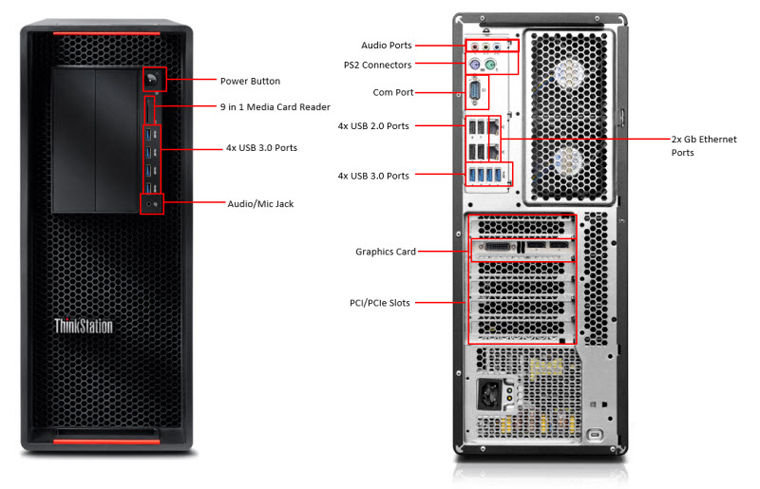

Ports	(4) Rear 3.0 (4) Rear 2.0 (4) Front 3.0 2 x 1GBe ethernet PS2
Expansion Slots	3 x PCIe x 16 1 x PCIe x 8 (open ended) 1 x PCIe x 4 (open ended) 1 x PCI 1 x Flex Connector

Software

Windows 7 Preloads

• Adobe Acrobat Reader
• CyberLink Power DVD (on systems with Optical drives)
• CyberLink Create(on systems with Optical drives)
• Microsoft Office 2013 Trial
• Norton Internet Security 2014 (30-day trial)
• Skype™
• ThinkVantage System Update
• Rescue and Recovery (Ready-to-Install)
• Lenovo Reach (only in US and Canada)
• Lenovo Solution Center
• PC Device Experience

Windows 8.1 Preloads

• CyberLink Power DVD (on systems with Optical drives)
• CyberLink Create (on systems with Optical drives)
• Evernote
• Lenovo Companion
• Lenovo Support
• Lenovo Solution Center
• Norton Internet Security 2014 (30-day trial)
• Password Manager (Web install)
• PC Device Experience
• Hightail
• Lenovo Reach (only in US and Canada)
• Norton Studio

Services Offerings

Lenovo offers a comprehensive portfolio of services to support and protect your ThinkCentre® Edge investment. Focus on your customers and business, not your IT.

• Priority Technical Support*
  Makes your priority, our priority. 24x7 priority call routing to advanced-level technicians, electronic incident tracking, and rapid response and resolution.
• Warranty Upgrades – Onsite and Next Business Day
  Maximizes PC uptime and productivity by providing convenient, fast repair service the next business day.
• Warranty Extensions (1-to-4 Years Total Duration)
  This fixed-term, fixed-cost service helps accurately budget for PC expenses, protect your valuable investment, and potentially lower the cost of ownership over time.

* Not available in all regions

Documentation:

Download the Lenovo ThinkStation P700 Datasheet (PDF).
