Lenovo ThinkCentre M73z All-in-One (20" display)
Simplify Your Business

Features:

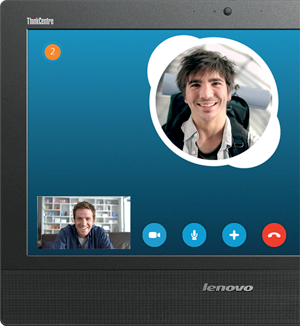

Space-Saving, Ergonomic Design Reclaim your desk and reduce the amount of space needed by up to 80 percent, compared to traditional desktop configurations. The integrated power supply means one cable is all you need, cutting down on clutter. And this all-in-one includes an ergonomically designed VESA mount and multiple stand offerings, for maximum user comfort from a compact footprint. Industry-Leading VoIP Engage in crystal-clear teleconferences with Skype-ready, VoIP-optimized software and hardware, including a 720P HD webcam and optional dual digital array microphone with noise cancellation. Solid Security & Manageability The M73z offers some of the best security tools available in the industry, including USB ports disablement to help prevent data theft and network security risks against unauthorized use of storage devices. Trusted Platform Module (TPM) encrypts data and key information like passwords and digital certificates, further securing applications, electronic transactions, and online communication. Physical Camera Switch Lock the webcam, for guaranteed privacy while working or conferencing. SuperSpeed USB 3.0 Enables up to 10 times faster file transfer, allowing for lightning-fast copying of large media files, as well as seamless connections between audio- and video-related peripherals. Backward-compatible with USB 2.0 devices. View Management Utility Take advantage of multiple active displays, and enjoy faster multitasking: The expanded work area and easier navigation between applications helps reduce errors and improve productivity as you extend your desktop across multiple displays. EPEAT Gold and ENERGY STAR Certification Save energy and reduce your power consumption costs – good for the environment and your bottom line.

Space-Saving, Ergonomic Design Industry-Leading VoIP

Views:

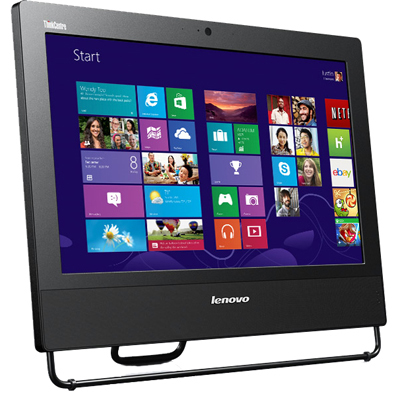

Lenovo ThinkCentre M73z AIO (20" display) (Click to enlarge)

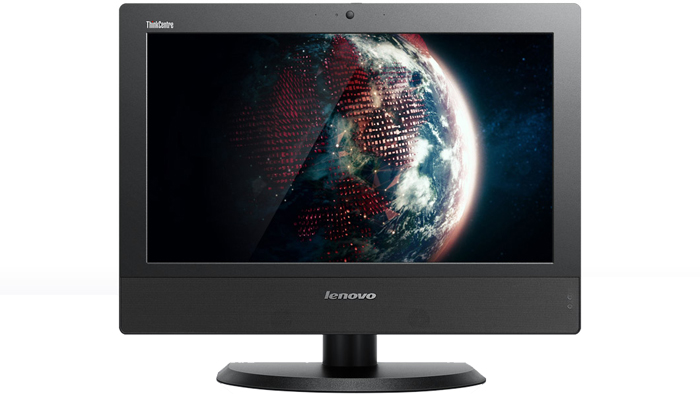

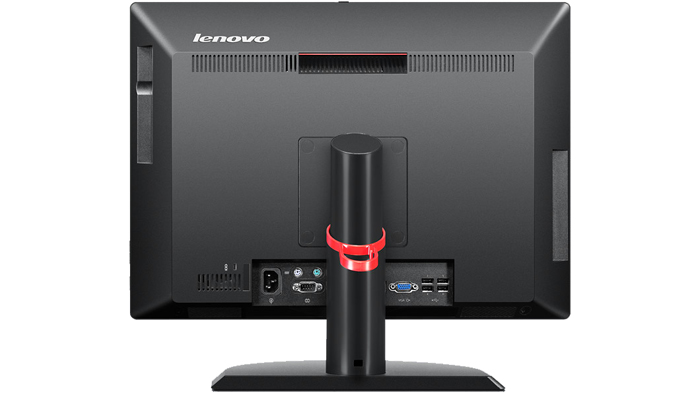

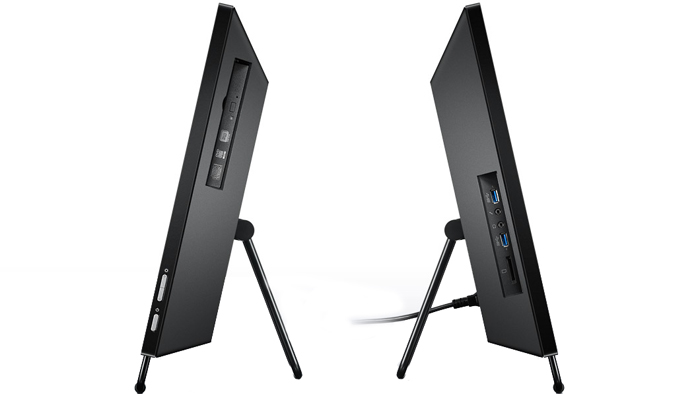

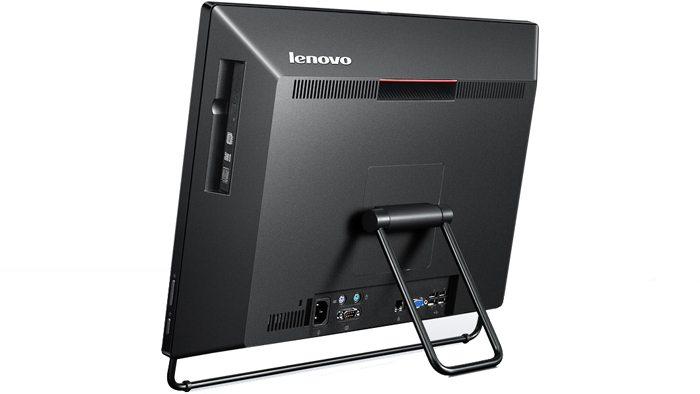

Front View	Rear View	Rear Zoom View	Right and Left Sides View

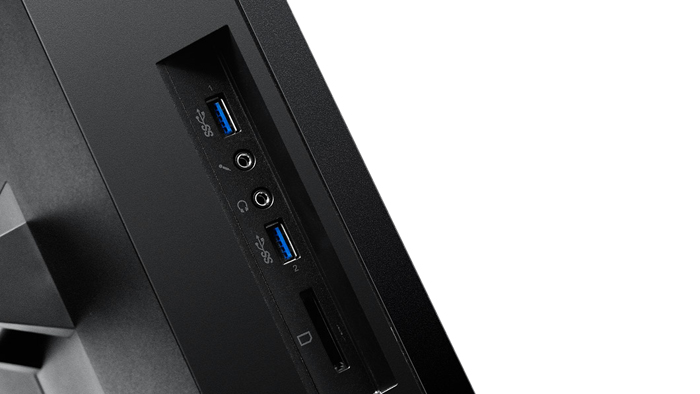

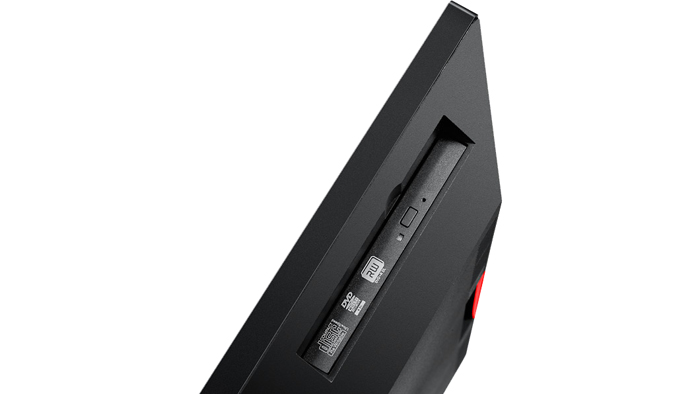

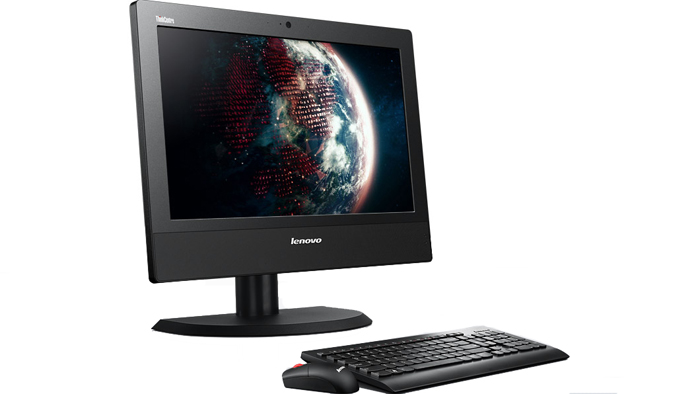

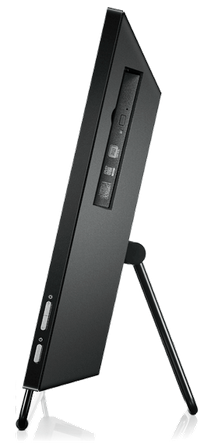

Right Sides Zoom View	Left Sides Zoom View	Right Stand View	Front Stand View

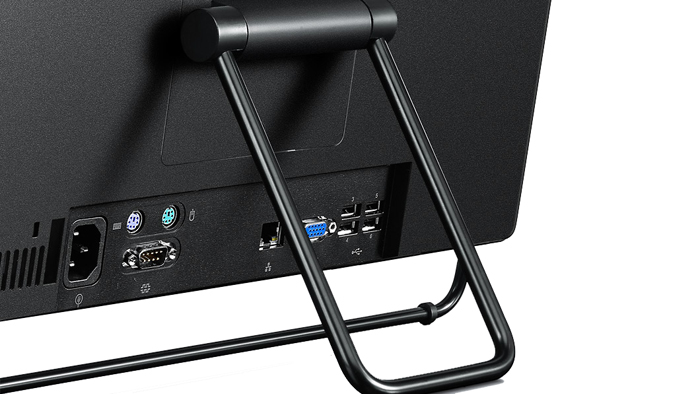

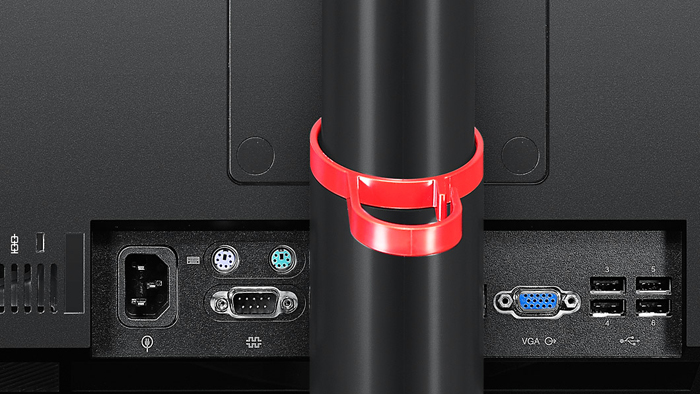

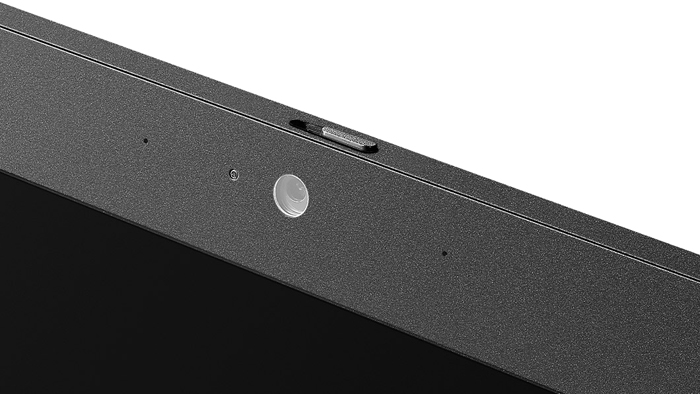

Rear Stand View	Rear Zoom View	Webcam View

Specifications:

Lenovo ThinkCentre M73z AIO (20" display)
Performance
Processor	4th Gen Intel Core™ i7-4770S 65W 4th Gen Intel Core™ i5-4670S/4570S 65W 4th Gen Intel Core™ i5-4570T 35W 4th Gen Intel Core™ i5-4430S 65W 4th Gen Intel Core™ i3-4330/ 4130
Operating System	Windows 8.1 Pro 64 Windows 8 64 Windows 7 Professional 64
Graphics	Integrated 2013 Intel HD
Memory	Up to 16GB DDR3 1600MHz, 2 DIMM slots
Storage	HDD: Up to 1TB (7200 rpm, SATA 6.0GB/s) HDD: 500GB + 8GB Hybrid Drive 2.5" SATA SSD: 2.5" 128GB 2.5" SATA / 180GB 2.5" SATA III
Audio	2W x 2 (Stereo), internal speakers
Optical Drive	Slim Rambo DVD Recordable
Power Supply	150W 85% (ES/Climate Saver)
Physical Security	TPM USB Disable Intrusion Switch (Optional) Asset ID Computrace Kensington Lock
Webcam	1.0 MP 720p with single D-MIC
Design
Display	20" Wide (16:9) LED Resolution: 1600 x 900
Dimensions (W x H x D)	Frame Stand: 19.9" x 15.9" x 3.56" Monitor Stand: (19.9" x 15.9" x 3.56") (19.9" x 16.6" x 9.8") Without Stand (Wall Mount): 19.9" x 14.2" x 2.59"
Weight	Frame Stand: 16.44 lbs Monitor Stand: 19.48 lbs Without Stand (Wall Mount): 13.88 lbs
Keyboard	Lenovo Preferred Pro Full-size Keyboard (USB/PS/2) Lenovo Preferred Pro Fingerprint Keyboard
Mouse	Edge Mouse Optical Wheelmouse (PS/2)
Connectivity
I/O Ports	(2) USB 3.0 Side (4) USB 2.0 Rear (1) PS/2 and Serial Port (1) VGA OUT, Output support up to 1920 x 2000 (2) Audio Out / MIC-In (1) 7-in-1 Media Card Reader
Wireless	Intel Centrino Wireless-N 2230 Intel Centrino Advanced-N 6235, Dual Band
Ethernet	1 Gigabit (10/100/1000)
Green Certification
Green Value	EPEAT Gold ENERGY STAR 5.2 EuP 2013 Greenguard LAN surge-China only

Software

Preloaded Applications

• Intel® AppUp®, Nitro Pro 8, Acrobat® Reader® X
• AccuWeather, PC Device Stage, Evernote®, Lenovo® Support
• Lenovo® Cloud Storage by SugarSync, Lenovo® Companion
• Lenovo® Cloud Storage by SugarSync - Metro, Lenovo® Solution Center
• Norton™ Internet Security 2013 (with 30 days of virus protection), Norton™ Studio
• Password Manager, Skype™, Product Recovery
• ThinkVantage® System Update, ThinkVantage® Rescue and Recovery®
• Cyberlink- PowerDVD, Cyberlink - PowerDVD Create, Power2Go and Power Producer
• Adobe® Acrobat® XI - bundled with MS Office 2013 Profressional and MS Office Home and Business on 01-29-2013 (with optional purchase)
• Adobe® Acrobat® XI Professional [Win7 Win8] (with optional purchase)
• Adobe® Acrobat® XI Standard English Standalone [Win7 Win8] (with optional purchase)
• Adobe® Lightroom [Win7 Win8] (with optional purchase)
• Adobe® Photoshop Elements and Adobe® Photoshop/Premiere Elements Bundle - (Non-education) (with optional purchase)
• Microsoft Office Professional 2013 (with optional purchase)
• Microsoft Office Home and Business 2013 (with optional purchase)
• Microsoft Office Home and Student 2013 (with optional purchase)
• Norton™ Internet Security, Norton™ Antivirus (with optional purchase)
• McAfee® Internet Security, McAfee® Virus Scan (with optional purchase)

Services Offerings

Lenovo offers a comprehensive portfolio of award-winning services to support and protect your ThinkCentre investment. Succeed with substance, and let Lenovo’s Service support you all the way.

• Priority Technical Support⁸
  Makes your priority, our priority. 24x7 priority call routing to advanced-level technicians, electronic incident tracking and escalation management services.
• Warranty Upgrades – Onsite And Next Business Day
  Maximizes PC uptime and productivity by providing convenient, fast repair service at your place of business.
• Warranty Extensions (1-to-5 Years Total Duration)
  This fixed-term, fixed-cost service helps accurately budget for PC expenses, protect your valuable investment, and potentially lower the cost of ownership over time.
• Keep Your Drive
  Retain your drive if it should happen to fail, giving you the peace of mind to know that your valuable data is secure.
• Asset Tagging
  Systems come equipped with a professional, flexible asset tag based on your exact specifications. PCs are easily identifiable and trackable right out of the box.

3 Available in October 2013
4 10 point touch solution
5 Discrete GPU model only

Documentation:

Download the Lenovo ThinkCentre M73z Datasheet (PDF).
