Lenovo ThinkServer TD340 Tower Server
Performance-Packed. Enterprise Reliability.

Features:

Boasts High Performance & Reliability

If you need an enterprise server to run your business, but you're not ready to invest in a rack infrastructure or simply just need a tower form factor, the Lenovo ThinkServer TD340 is perfect for you. It packs in the performance of an entry-level rack server with up to two Intel Xeon E5-2400 v2 Series processors, giving you the power to run strenuous workloads, such as web, database and CRM — in addition to infrastructure and point-of-sale applications. Coupling that with high-reliability features, such as hot-swap hard disk and solid-state drives, integrated full-performance RAID, and redundant power, gives you peace of mind that your data will stay safe and your system will stay up and running.

Grows as Your Business Needs Dictate

With the ThinkServer TD340, you'll find generous memory and storage capacity so you can grow your server as your business grows. With support for 192GB of memory and up to an enormous 48TB of hard-drive space, you'll have plenty of room to expand. Six available PCIe/PCI slots give you the capability to add rich I/O options — covering various protocols, speeds, and interfaces — including advanced RAID, super-fast 10Gb Ethernet, or a Fibre Channel host bus adapter. Choose the ThinkServer TD340 for a highly scalable, enterprise-ready server at the cost-efficient price of a tower.

Fits Easily into Your Environment

The TD340 uses open industry standards and protocols, so it integrates easily into your environment. That means you can use your existing management tools with the TD340 — if you have them — or try ours at no additional charge. In addition to a front-side diagnostic panel, a built-in management module means you can remotely access your server, regardless of its power state — reducing the need for onsite support. And, at 32 decibels, the TD340 is quieter than a typical library. Plus, it's ENERGY STAR-certified, so it's easy on your power bill. That translates to a tower server — with all the power of an enterprise rack machine — perfect for the business that needs quiet, efficient, easy-to-manage technology.

Views:

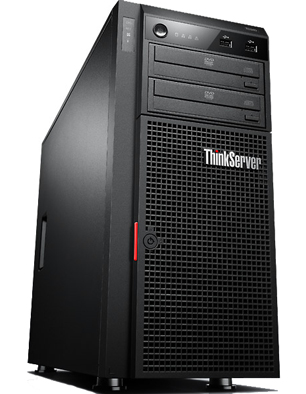

Lenovo ThinkServer TD340 (Click to enlarge)

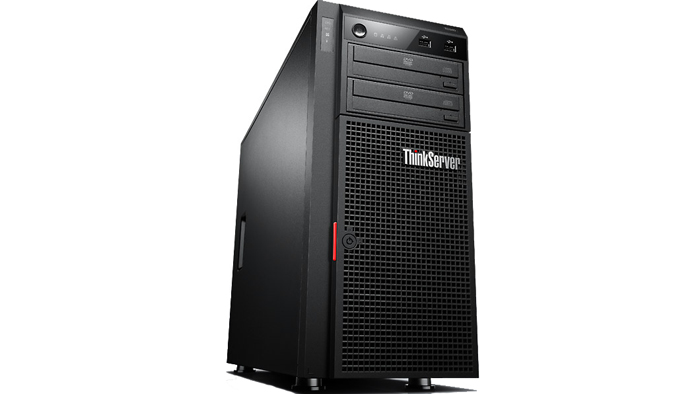

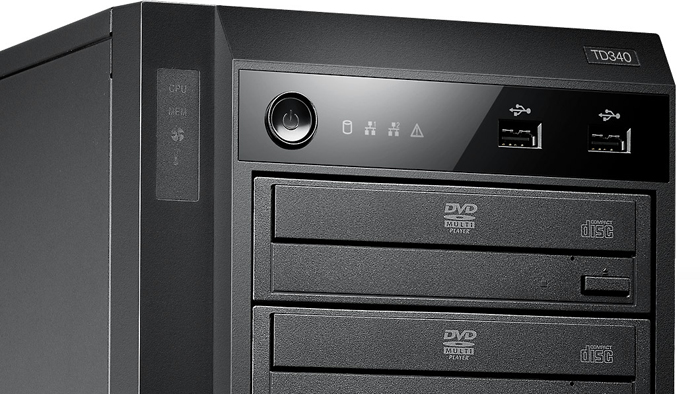

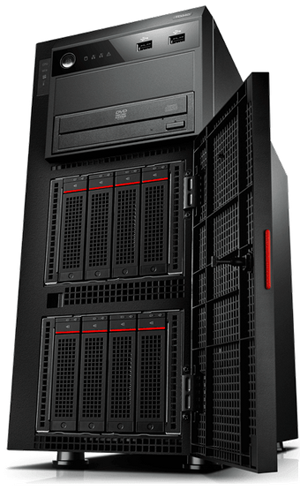

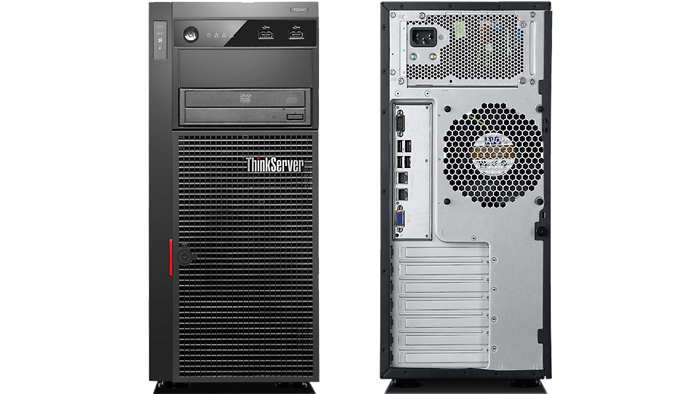

Front Right View	Front and Rear View	Front Detail View	Open (8-Bay) View

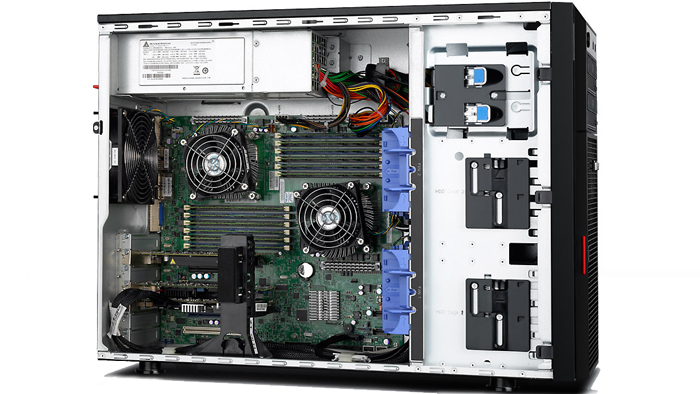

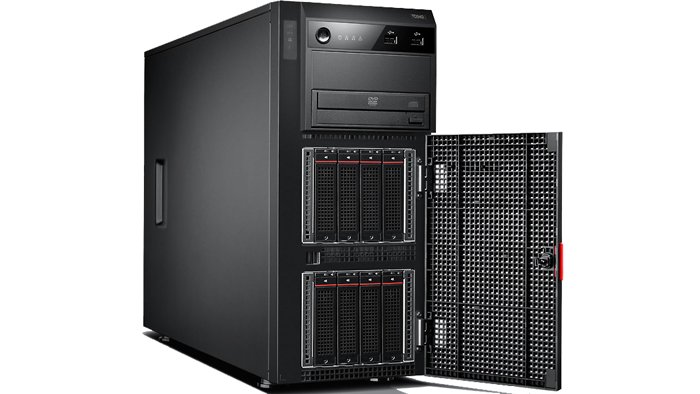

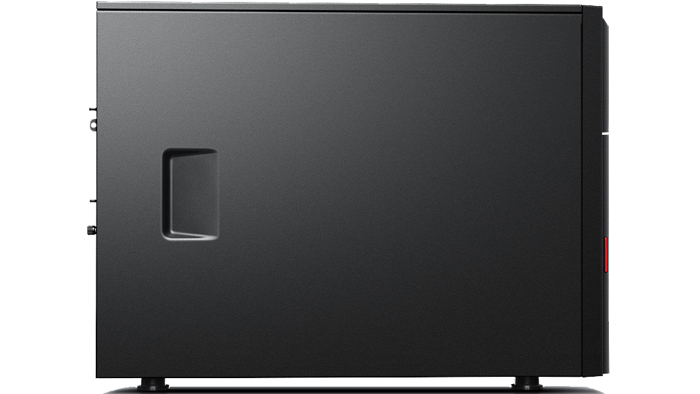

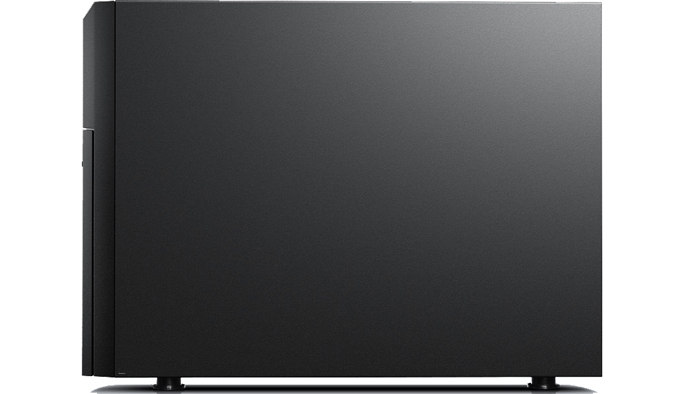

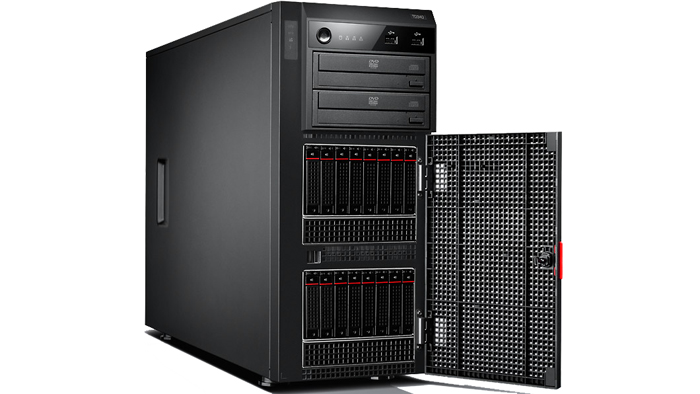

Open (16-Bay) View	Left Side View	Right Side View	Inside View

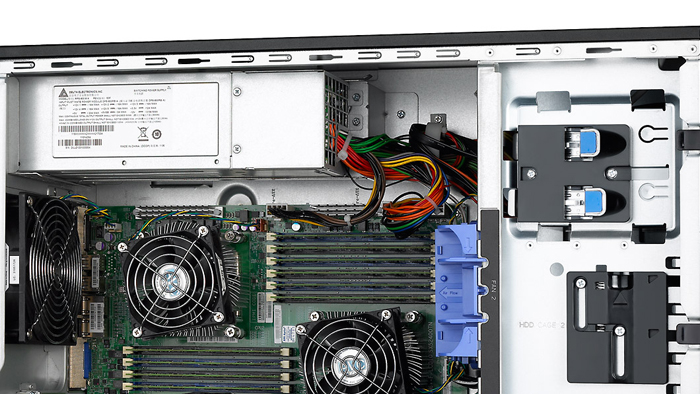

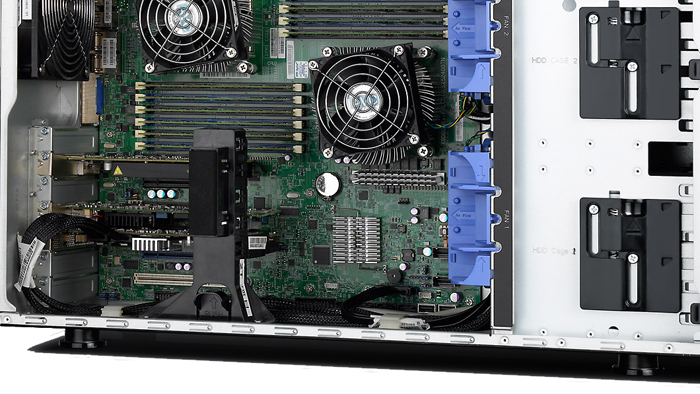

Inside Top Detail View	Inside Bottom Deatil View

Specifications:

Lenovo ThinkServer TD340
Performance
Processor	Up to two 10-core Intel Xeon E5-2400 v2 Series
Operating System Supported	Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Small Business Server 2011, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux Server, VMware ESXi, Citrix XenServer
Memory	Up to 192GB DDR3 – 1333 MT/s via 12 slots (LVRDIMM)
Maximum Internal Storage	Up to 48TB SATA 3.5" chassis or up to 24TB SAS 3.5" chassis or up to 16TB SATA 2.5" chassis or up to 14.4TB SAS 2.5" chassis
Power supply	1 x Fixed - 625W (80 PLUS Bronze) or 800W (80 PLUS Gold), 100V to 240V AC input Optional 1 + 1 Redundant hot-swap – 800W
RAID Support	ThinkServer RAID 100 (0/1/10/5) ThinkServer RAID 300 (0/1/10/5) Optional ThinkServer RAID 500 Adapter II (0/1/10/5) Optional ThinkServer RAID 700 Adapter II (RAID 0/1/10/5/50/6/60) Optional ThinkServer RAID 710 Adapter (0/1/10/5/50/6/60)
Diagnostics	Intelligent Diagnostics Panel
Systems Management	ThinkServer Management Module Optional ThinkServer Management Module Premium
Design
Form Factor/Height	5U Tower
Media Bays	Up to 2 x 5.25"
Disk Bays	Up to 4 x 3.5" Fixed or up to 8 x 3.5" hot-swap or up to 16 x 2.5" hot-swap (800W power supply required)
Cooling	5 Fixed fans
Dimensions (W X D X H)	7.67" x 23.42" x 16.92" (194.81 mm x 594.86 mm x 429.76 mm)
Weight	Starting at 61.8 lbs (28.0 kg)
Connectivity
Network Interface	2 x Integrated Gb Ethernet
Expansion Slots With 1 CPU Installed	1 x PCIe GEN3: FH/HL x8 mechanical, x4 electrical 1 x PCIe GEN3: FH/HL x16 mechanical, x16 electrical 1 x PCI 5V 32-bit/33 MHz: FH/HL
Expansion Slots With 2 CPUs installed	1 x PCIe GEN3: FH/HL x8 mechanical, x4 electrical 1 x PCIe GEN3: FH/HL x16 mechanical, x16 electrical 3 x PCIe GEN3: FH/HL x8 mechanical, x8 electrical 1 x PCI 5V 32-bit/33 MHz: FH/HL

Services Offerings

Choose among a comprehensive portfolio of services optimized to support and protect your ThinkServer investment. Specify response time, duration, and optional features to meet your business needs and your budget.

• Priority Technical Support
  Provides 24 x 7 direct access to advanced-level technicians.
• Extended Warranties
  Offer fixed-term, fixed-cost protection to help you budget for server expenses for up to five years, to help lower TCO.
• Upgraded Warranties
  Maximize uptime and productivity with convenient, same-day repair service at your place of business.

Documentation:

Download the Lenovo ThinkServer TD340 Datasheet (PDF).
