Lenovo ThinkServer TS440 Tower Server
A Highly Affordable, Feature-Rich Server.

Features:

Enterprise-Class

The ThinkServer TS440 is a true enterprise-class server. Thanks to the increased performance of the latest Intel Xeon E3-1200 v3 series processors, the TS440 has the power and speed to handle your workload with ease. To help keep you up and running and your data safe, the TS440 includes reliability features such as error correcting code (ECC) memory and an onboard storage controller with the capability of implementing up to RAID 5. You can also choose between enterprise SAS or SATA hot-swap drives. Plus, the TS440 is designed for 24/7 operation and is certified for MSP support with many ecosystem vendors.

Easy to Own

What do we mean when we say easy to own? In addition to being very affordable, the TS440 is highly upgradeable. You can add up to 48TB of storage, up to 32GB of memory, and have 4 PCI/PCIe slots so you can grow the TS440 as your needs dictate. We also mean the TS440 is easy to manage. It offers simple tools for deployment, monitoring, and ongoing management. Using the latest Intel Advanced Management Technology (AMT) 9.0, the TS440 provides out-of-band, remote management—regardless of the server's status. The TS440's web console works directly out of the box providing point-and-click management tools perfect for branch offices or remote deployments with limited IT resources.

Whisper-Quiet

At 33 decibels, the acoustics of the TS440 are 40 percent quieter than its predecessor and impressively quiet for any server. That's less noise than you'll find in a typical library. Plus, it's ENERGY STAR-certified and made with 65% recycled materials, so it's easy on the environment and easy on your power bills.

Views:

Lenovo ThinkServer TS440 (Click to enlarge)

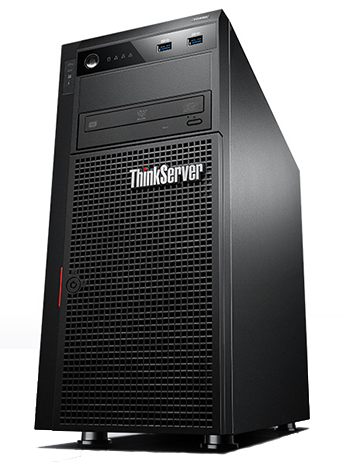

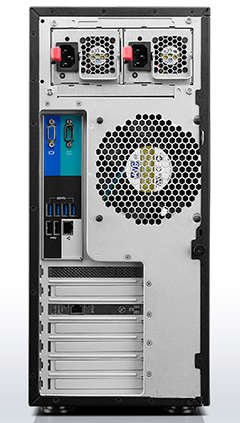

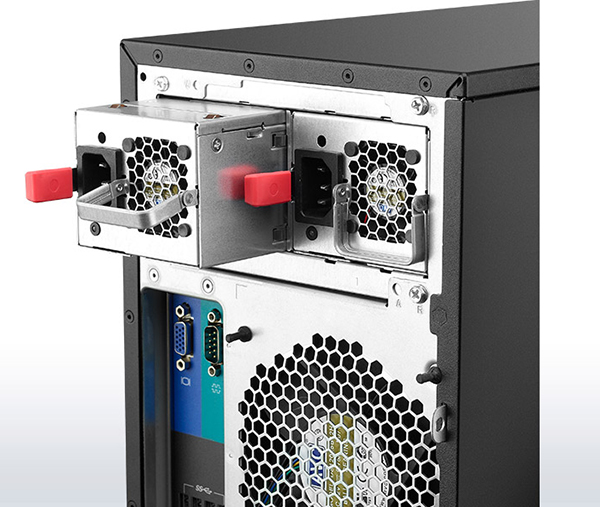

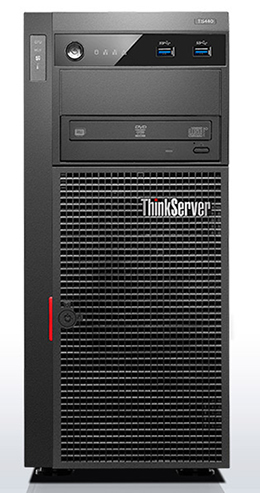

Back View	Back Detail View	Front Right View	Front View

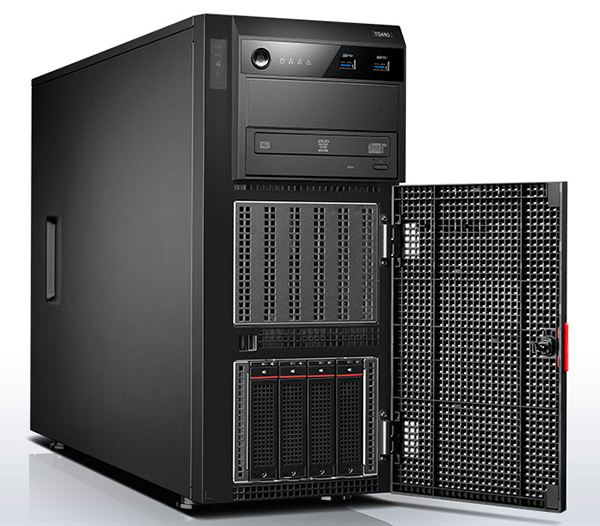

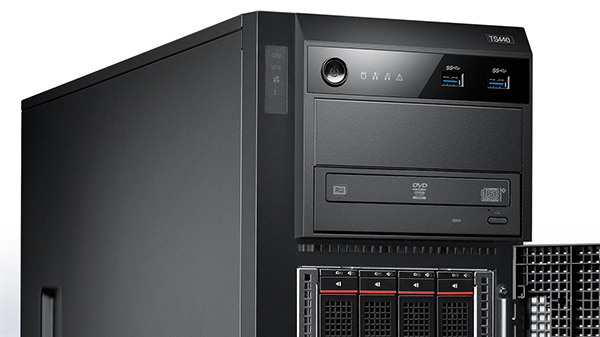

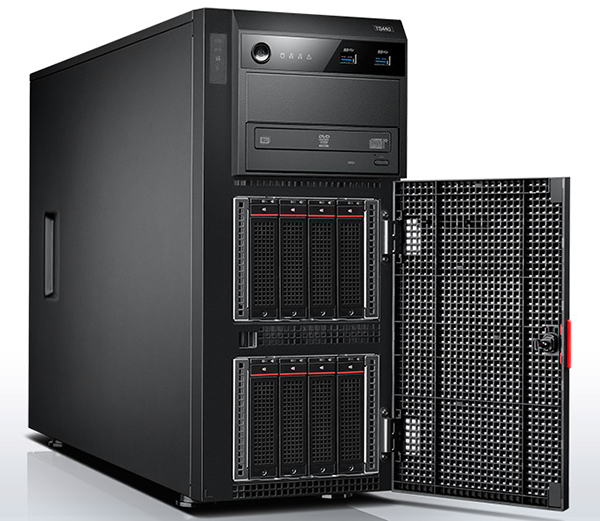

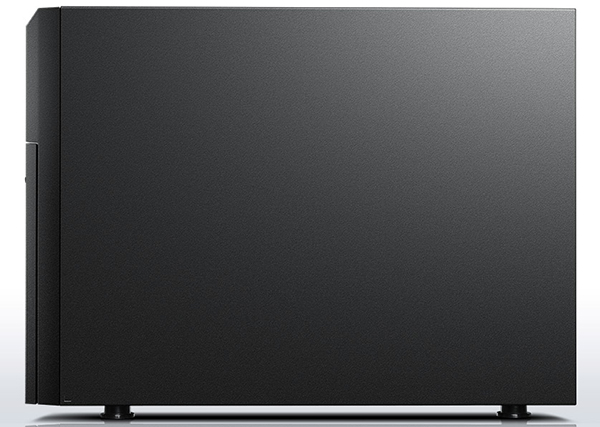

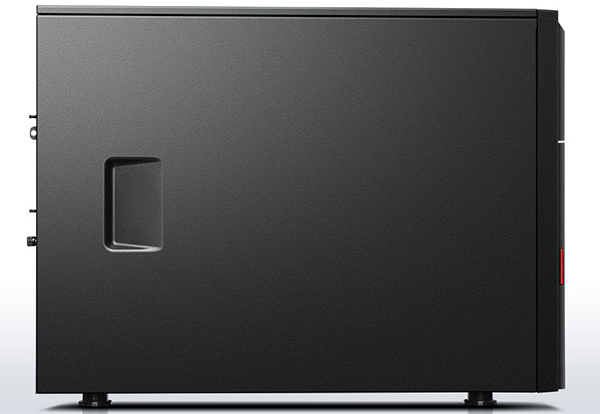

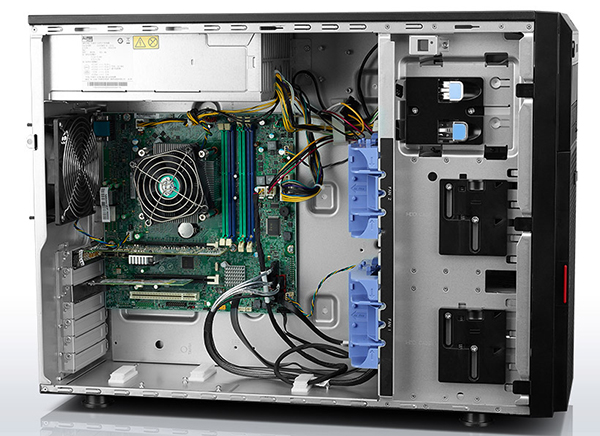

Front Detail View	Left Open View	Left Open View	Left Side View

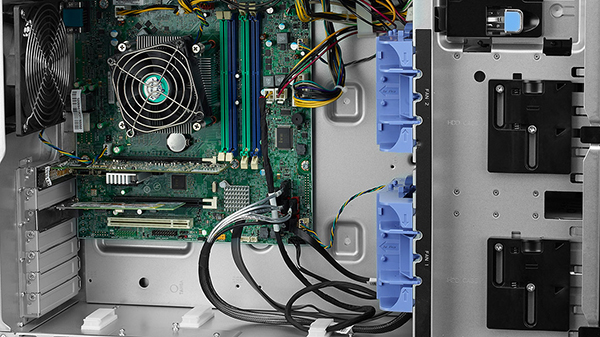

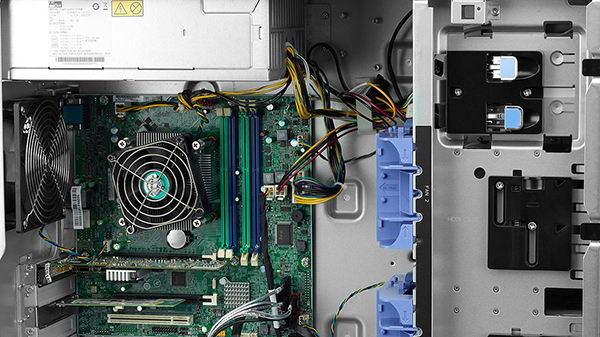

Right Side View	Inside View	Inside Top Detail View	Inside Bottom Deatil View

Specifications:

Lenovo ThinkServer TS440
Performance
Processor	Up to one 4-core Intel Xeon E3-1200 v3 Series
Operating System Supported	Microsoft Windows Server 2012 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2008 R2 Microsoft Windows Small Business Server 2011 Microsoft Windows 8.1 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux Server VMware ESXi
Memory	Up to 32GB DDR3 – 1600 MT/s via 4 slots (UDIMM)
Maximum Internal Storage	Up to 48TB (3.5" SATA) or Up to 24TB (3.5" SAS) or Up to 8TB (2.5" SATA) or Up to 7.2TB (2.5" SAS)
Power supply	1 Fixed – 450W, 1 Fixed – 280W optional
RAID Support	Integrated ThinkServer RAID 100 (0/1/10/5)
Diagnostics	Intelligent Diagnostics Panel
Systems Management	Intel Advanced Management Technology 9.0 (Xeon models) Intel Standard Manageability (Core i3 models)
Design
Form Factor/Height	5U Tower
Media Bays	Up to 2 x 5.25"
Disk Bays	Up to 4 x 3.5" Fixed or Up to 8 x 3.5" hot-swap or Up to 8 x 2.5" hot-swap
Dimensions (W X D X H)	7.67" x 23.42" x 16.92" (194.81 mm x 594.86 mm x 429.76 mm)
Weight	Starting at 61.8 lbs (28.0 kg)
Connectivity
Network Interface	1 x Integrated Gb Ethernet
Expansion Slots	1 x PCIe GEN3: HH/FL x16 mechanical, x16 electrical 1 x PCIe GEN2: HH/HL x16 mechanical, x4 electrical 1 x PCIe GEN2: HH/HL x1 mechanical, x1 electrical 1 x PCI 32-bit/33 MHz: FH/HL

Services Offerings

Lenovo Services lets you get the most out of your ThinkServer – no matter how you use it. Whether you have a thousand client seats or just one, Lenovo delivers the quality, reliability and peace of mind to keep you up and running, no matter where you are, no matter when you need it.

Lenovo ThinkServer Services are offered in a variety of service levels to meet the needs of your business as well as your budget. you can extend your base warranty for up to five years, and choose the service level you value most: onsite next day, same day, or around the clock within four or eight hour service windows up to 365 days a year. We also offer an optional Keep your Drive service so that your data never needs to leave your premises, as well as a Priority Support call center upgrade offering.

TS Series ThinkServer with 1-year base warranty

• 3-year Onsite Next Business Day Response ----------- 5WS0E76466
• 4-year Onsite Next Business Day Response ----------- 5WS0E76448
• 5-year Onsite Next Business Day Response ----------- 5WS0E76422
• 3-year 9x5 4 Hour Response (TS Series) ------------- 5WS0E76430
• 3-year 24x7 4 Hour Response (TS Series) ------------ 5WS0E37825

TS Series ThinkServer with 3-year base warranty

• 4-year Onsite Next Business Day Response ----------- 5WS0E76429
• 5-year Onsite Next Business Day Response ----------- 5WS0E76495
• 3-year 9x5 4 Hour Response (TS Series) ------------- 5WS0E76480
• 3-year 24x7 4 Hour Response (TS Series) ------------ 5WS0E37827

Lenovo ThinkServer Priority Support

Want to jump to the head of the queue? Talk to a specialized agent and get advanced call center support? Then our Priority Support offering is perfect for you. Choose an offering which matches the term of the ThinkServer base warranty, or select from the convenient service bundle offerings designed to make it easy to purchase the combination of Lenovo services that are just right for your organization.

• 1-year Priority -------------------------------------- 5WS0E76420
• 3-year Priority -------------------------------------- 5WS0E76471

Lenovo ThinkServer Keep Your Drive

Data security is more important than ever, and Lenovo offers our popular Keep your Drive Service so that your data never needs to leave your hands. In the unlikely event of a hard drive failure requiring a hard drive replacement, you can keep your original drive, ensuring that your data stays in your control. Add this service to your base warranty, or choose a services bundle which meets your business needs.

Lenovo thinkserver Keep Your Drive

• 1-year Keep your Drive (TS Series) ------------------- 5PS0E76444
• 3-year Keep your Drive (TS Series)------------------- 5PS0E76502

Bundled ThinkServer Services Offerings

Lenovo offers convenient services bundles to allow you to choose the combination of services that’s right for you with a single part number and price. Here are a few of our most popular offerings:

TS Series ThinkServer with 1-year base warranty

• 1-year 9x5 4 Hour Response + Priority (TS Series)----- 5WS0E76425
• 3-year 9x5 4 Hour Response + Priority + Keep your Drive (TS Series)-------- 5PS0E76468
• 3-year 24x7 4 Hour Response + Priority (TS Series)---- 5WS0E76435

TS Series ThinkServer with 3-year base warranty

• 3-year 9x5 4 Hour Response + Priority (TS Series)---- 5WS0E76472
• 3-year 24x7 4 Hour Response + Priority (TS Series)--- 5WS0E76485
• 3-year 24x7 4 Hour Response + Priority + Keep your Drive (TS Series)------- 5PS0E76443
• 4-year 9x5 4 Hour Response + Priority + Keep your Drive (TS Series)------ 5PS0E76414

NOTE: All service levels offered vary by country. Please consult your Lenovo Business Partner or Lenovo Sales Representative for more information on the services offered in your location.

Documentation:

Download the Lenovo ThinkServer TS440 Datasheet (PDF).
